Direct ring light



Features
●High-luminance LEDs deployed at high density to produce 360-degree shadow-free illumination.
●Standard type of LED lighting for a wide range of applications
●Ability to select the model that matches our lenses

Major applications
●Positioning of substrates and printed boards, inspection of chip components
●Liquid crystal alignment, plastic container inspection
●Label inspection, mounter, IC impress inspection and suchlike

Model explanation

Lineup of direct-ring lights (Click Product Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
Internal diameter of the ring(mm)
External diameter of the ring(mm)
lighting angle
Weight(g)

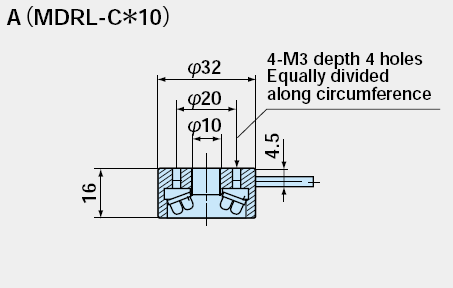

A
Red
0.11
10
32
70
50
*MDRL-CG10
A
Greeen
0.17
10
32
70
MDRL-CB10
A
Blue
0.17
10
32
70
MDRL-CW10
A
White
0.17
10
32
70

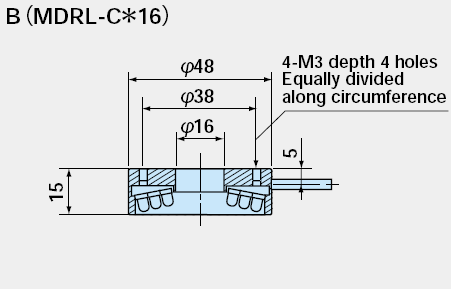

MDRL-CR16
B
Red
0.24
16
48
76
65
*MDRL-CG16
B
Green
0.37
16
48
76
MDRL-CB16
B
Blue
0.37
16
48
76
MDRL-CW16
B
White
0.37
16
48
76

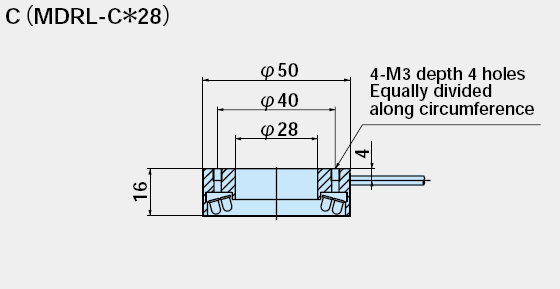

MDRL-CR28
C
Red
0.20
28
50
75
65
*MDRL-CG28
C
Green
0.31
28
50
75
MDRL-CB28
C
Blue
0.31
28
50
75
MDRL-CW28
C
White
0.31
28
50
75

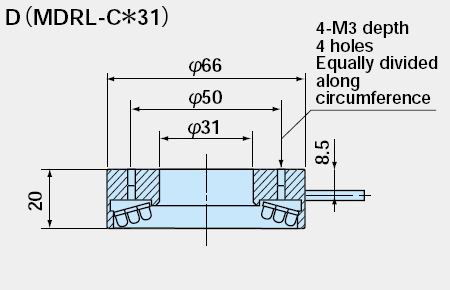

MDRL-CR31
D
Red
0.36
31
66
75
65
*MDRL-CG31
D
Green
0.55
31
66
75
MDRL-CB31
D
Blue
0.55
31
66
75
MDRL-CW31
D
White
0.55
31
66
75

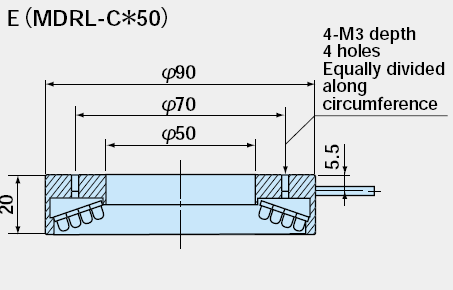

MDRL-CR50
E
Red
0.64
50
90
70
180
*MDRL-CG50
E
Green
0.96
50
90
70
MDRL-CB50
E
Blue
0.96
50
90
70
MDRL-CW50
E
White
0.96
50
90
70

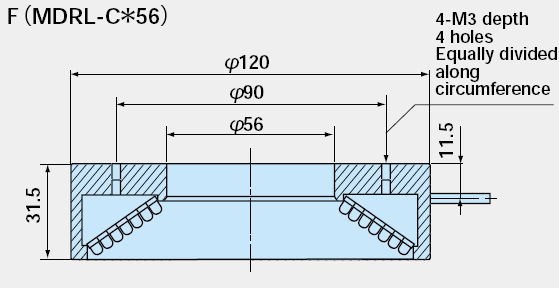

MDRL-CR56
F
Red
1.12
56
120
50
520
*MDRL-CG56
F
Green
1.55
56
120
50
MDRL-CB56
F
Blue
1.55
56
120
50
MDRL-CW56
F
White
1.55
56
120
50
Options for direct-ring lights

Adapter

Diffusion plate

Polarizing plate
Lens adaptor

Diffusion plates and polarizing plates are available to reduce the
reflection of light. Different types of lens adapters are available as well.

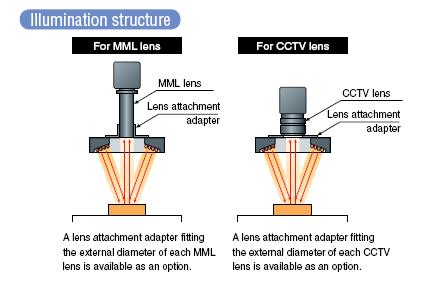

Lighting configuration


Imaging examples

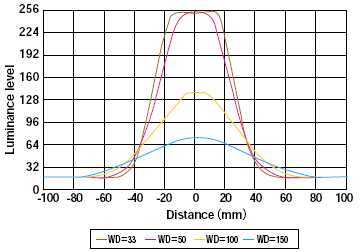

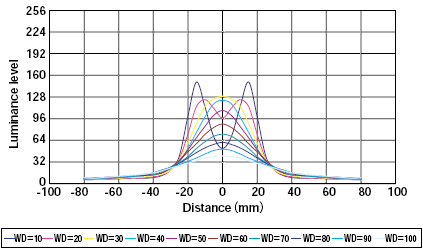

Luminous intensity distribution characteristics
