Array - type backlight
Features
■ MDBLseries : Higher luminance than the edge-type with lamp-type LCDs mounted immediately beneath the lighting surface.
■MDBCseries : The thin design of the chip-mounted type is best for space reduction.
Major applications
●Lead frame inspection
●Visual inspection of electronic parts
●Bend lead inspection for GFPs, QSPs and SOPs
●Inspection for dirt on clear film
●Different silhouette observations
Model explanation
Lamp type
Chip-mounted type
Model
|
Exterior view
|
Luminescent color
|
Max. rated current lFM(A)
|
Dimensions of the lighting area (mm) |
Weight(g)
|
|---|---|---|---|---|---|
A |
Red
|
0.14
|
25x25
|
60 |
|
A |
Green
|
0.27
|
25x25
|
||
A |
Blue
|
0.27
|
25x25
|
||
A |
White
|
0.27
|
25x25
|
||
B |
Red
|
0.48
|
70x70
|
190 |
|
B |
Green
|
0.96
|
70x70
|
||
B |
Blue
|
0.96
|
70x70
|
||
B |
White
|
0.96
|
70x70
|
||
C |
Red
|
1.43
|
100x100
|
290 |
|
C |
Green
|
1.55
|
100x100
|
||
C |
Blue
|
1.55
|
100x100
|
||
C |
White
|
1.55
|
100x100
|
||
D |
Red
|
2.30
|
180x100
|
520 |
|
D |
Green
|
2.30
|
180x100
|
||
D |
Blue
|
2.30
|
180x100
|
||
D |
White
|
2.30
|
180x180
|

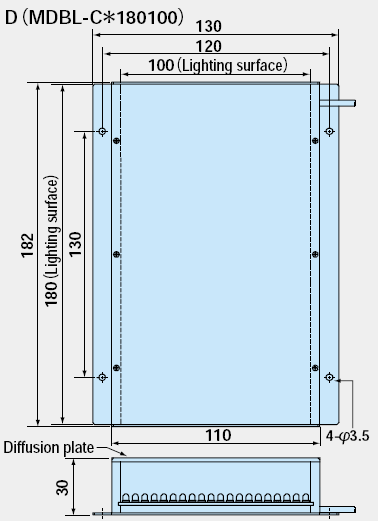

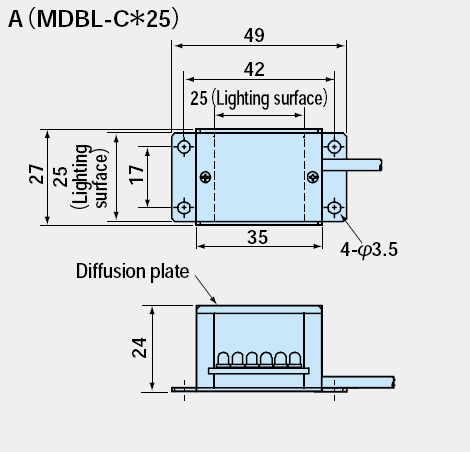

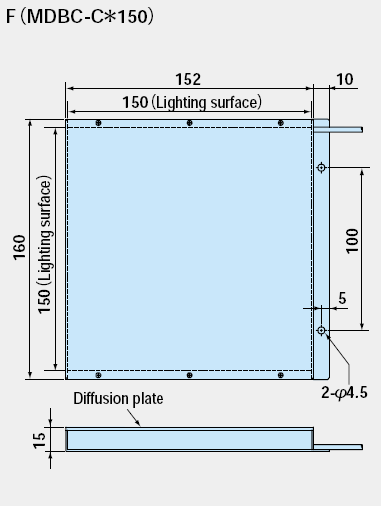

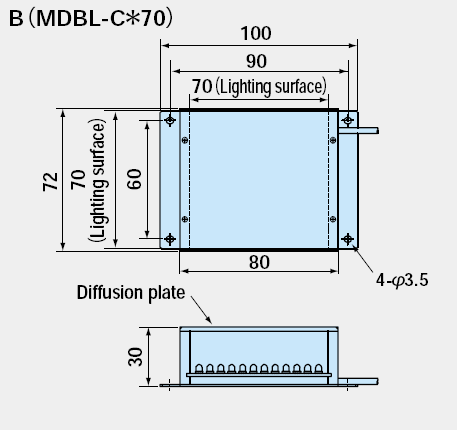

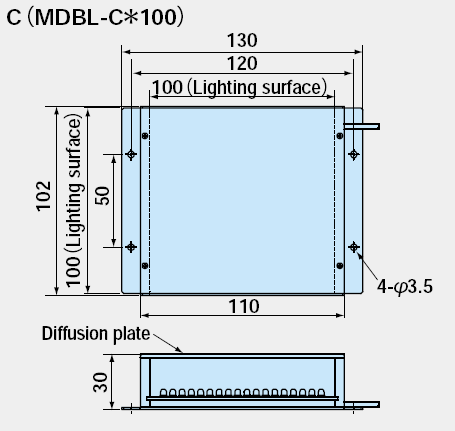

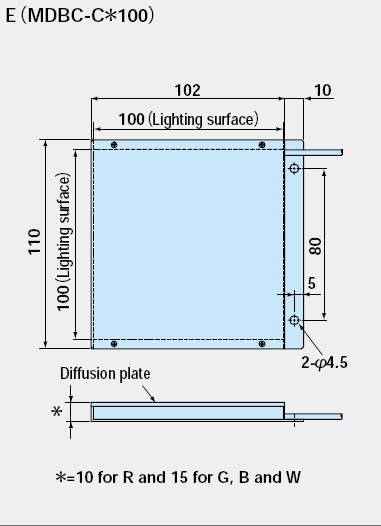

Lineupmof chip-mounted LEDs (Click Product Name for Drawing)
lighting area (mm)
Lighting configuration Imaging examples
Liquid level detection in a beverage bottle

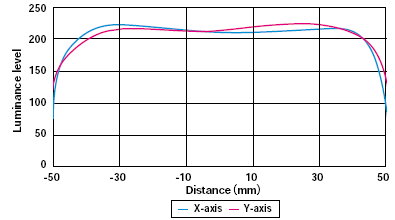

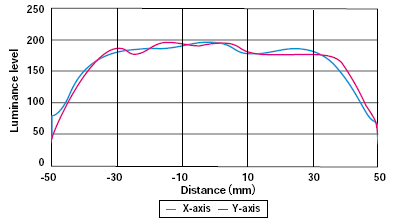

Luminous intensity distribution characteristics
MDBL-CR100
MDBC-CR100
