Edge - type backlight


Features
●Thin, compact design for the advantage of saving space
●Even lighting with the use of Moritex's proprietary light-guiding diffusion plate

Major applications
●Lead frame inspection
●Visual inspection of electronic parts
●Bend lead inspection for GFPs, QSPs and SOPs
●Inspection for dirt on clear film
●Different silhouette observations

Model explanation

Lineup of direct-ring lights (Click Product Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
diameter of the ring area (mm)
Weight(g)

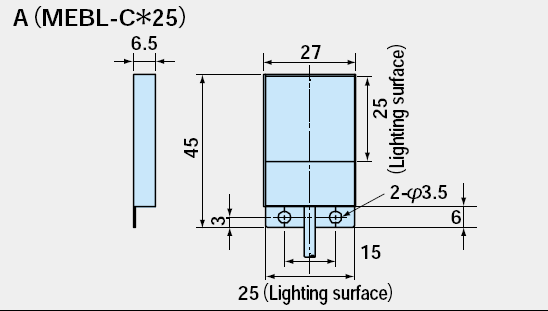

MEBL-CR25

A
Red
0.03
25x25
45

*MEBL-CG25

A
Green
0.04
25x25

MEBL-CB25

A
Blue
0.04
25x25

MEBL-CW25

A
White
0.04
25x25

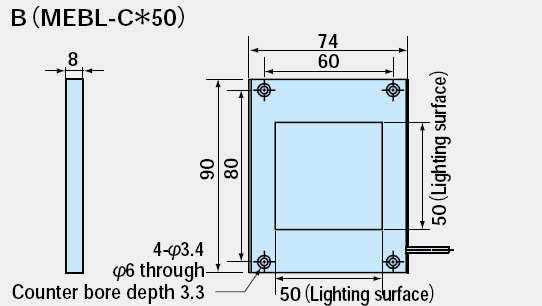

MEBL-CR50

B
Red
0.17
50x50
110

*MEBL-CG50

B
Green
0.29
50x50

MEBL-CB50

B
Blue
0.29
50x50

MEBL-CW50

B
White
0.29
50x50

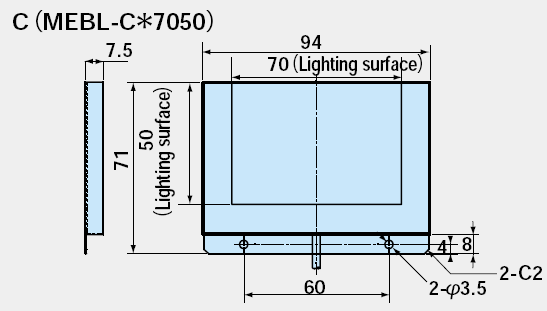

MEBL-CR7050

C
Red
0.15
70x50
140

*MEBL-CG7050

C
Green
0.25
70x50

MEBL-CB7050

C
Blue
0.25
70x50

MEBL-CW7050

C
White
0.25
70x50

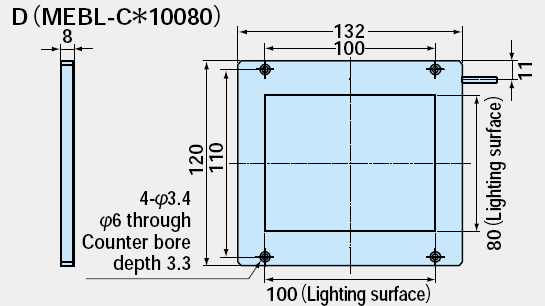

MEBL-CR10080

D
Red
0.32
100x80
230

*MEBL-CG10080

D
Green
0.57
100x80

MEBL-CB10080

D
Blue
0.57
100x80

MEBL-CW10080

D
White
0.57
100x80

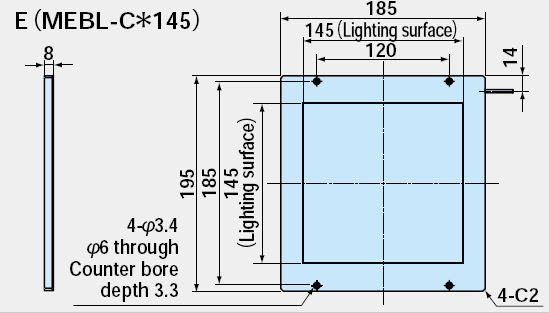

MEBL-CR145

E
Red
0.45
145x145
460

*MEBL-CG145

E
Green
0.8
145x145

MEBL-CB145

E
Blue
0.8
145x145

MEBL-CW145

E
White
0.8
145x145

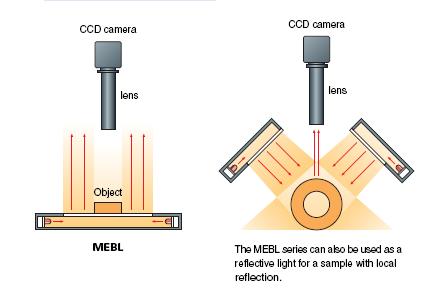

Lighting configuration

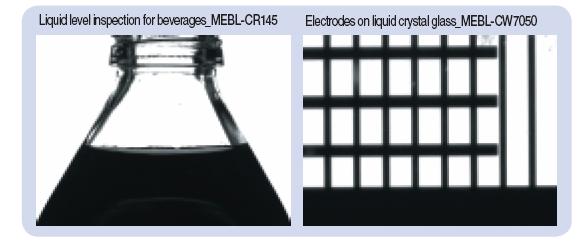

Imaging examples

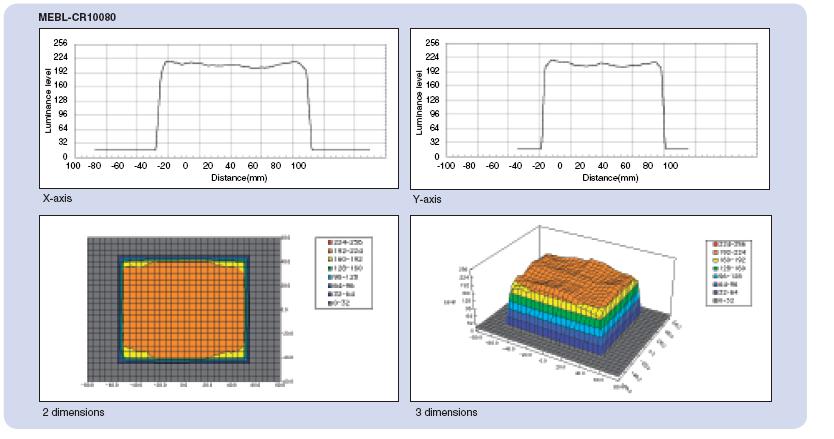

Luminous intensity distribution characteristics
