Option




The following optional accessories are variable to improve the functionality of the lighting devices.

Diffusion plate:MDF series
The MDF series features a diffusion plate that increase the lightdiffusion and reduces reflection and glare from the element.
Model
Product type
Compatible light models

MDF-DR10
Diffusion plate for direct-ring lights
MDRL-C*10

MDF-DR16
Diffusion plate for direct-ring lights
MDRL-C*16

MDF-DR28
Diffusion plate for direct-ring lights
MDRL-C*28

MDF-DR31
Diffusion plate for direct-ring lights
MDRL-C*31

MDF-DR50
Diffusion plate for direct-ring lights
MDRL-C*50

MDF-DR56
Diffusion plate for direct-ring lights
MDRL-C*56

MDF-LR25
Diffusion plate for low-angle ring lights
MLRL-C*25

MDF-LR48
Diffusion plate for low-angle ring lights
MLRL-C*48

MDF-LR68
Diffusion plate for low-angle ring lights
MLRL-C*68

MDF-LR100
Diffusion plate for low-angle ring lights
MLRL-C*100

MDF-BR5015
Diffusion plate for bar lights
MBRL-C*5015

MDF-BR7530
Diffusion plate for bar lights
MBRL-C*7530

MDF-BR13015
Diffusion plate for bar lights
MBRL-C*13015
An asterisk (*) in "compatible light models" refers to any LED color (R, G, B, or W) of the light.


Polarizing plate:MPL series
The MPL series is attached to a light in combination with the lens, and reduces unwanted glare and reflection during image processing

Model
Product type
compatible light models

MPL-DR10

 Polarizing plate for direct-ring lights MDRL-C*10

MPL-DR16

 Polarizing plate for direct-ring lights MDRL-C*16

MPL-DR28

 Polarizing plate for direct-ring lights MDRL-C*28

MPL-DR31

 Polarizing plate for direct-ring lights MDRL-C*31

MPL-DR50

 Polarizing plate for direct-ring lights MDRL-C*50

MPL-DR56

 Polarizing plate for direct-ring lights MDRL-C*56

MPL-BR5015

 Polarizing plate for bar lights MBRL-C*5015

MPL-BR7530

 Polarizing plate for bar lights MBRL-C*7530

MPL-BR13015

 Polarizing plate for bar lights
MBRL-C*13015
An asterisk (*) in "compatible light models" refers to any LED color (R, G, B, or W) of the light.


Adapter:MAD series
The MAD series is essential when a diffusion or polarizing plate is attached to a ring light.

Model
Product type
compatible light models
How to use the MAD series

MAD-DR10

 Plate attachment adapter for direct-ring lights MDRL-C*10

MAD-DR16

 Plate attachment adapter for direct-ring lights MDRL-C*16

MAD-DR28

 Plate attachment adapter for direct-ring lights MDRL-C*28

MAD-DR31

 Plate attachment adapter for direct-ring lights MDRL-C*31

MAD-DR50

 Plate attachment adapter for direct-ring lights MDRL-C*50

MAD-DR56

 Plate attachment adapter for direct-ring lights MDRL-C*56
An asterisk (*) in "compatible light models" refers to any LED color (R, G, B, or W) of the light.

Light control film:MLM series

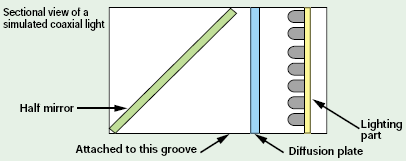

The MLM series is a series of resin films that transforms diffused light into near-parallel light. Attached to a simulated coaxial light, it makes the light distribution pattern smoother.

Model
Product type
compatible light models

MLM-SC56

 Light control film for simulated coaxial lights MSCL-C*56

MLM-SC70

 Light control film for simulated coaxial lights MSCL-C*74

MLM-SC105

 Light control film for simulated coaxial lights MSCL-C*105
An asterisk (*) in "compatible light models" refers to any LED color (R, G, B, or W) of the light.


How to use the MLM series


Lighting intensity distribution characteristics of the MSCL-CR105

Lighting intensity distribution characteristics without a light control film Lighting intensity dostribution characteristics with a light control film (with the power source volume increased)


Simulated coaxial light/CCTV lens adaptor : MLA-SC series
The MLA_SC series enables small simulated coaxial lights to be mounted at the end of CCTV lenses.

Model
Product type
compatible light models
How to use the MLA-SC series

MLA-SCBS

 Mount base for simulated coaxial lights MDRL-C*10

MLA-SCM255

 Plate attachment adapter for direct-ring lights MDRL-C*16

MLA-SCM270

 Plate attachment adapter for direct-ring lights MDRL-C*28

MLA-SCM305

 Plate attachment adapter for direct-ring lights MDRL-C*31
An asterisk (*) in "compatible light models" refers to any LED color (R, G, B, or W) of the light.


MML/CCTV lens adapter
The adapter can be easily used in combination with Moritex"s lenses.
Model
Product type
Compatible light models
How to use the MLA-DR series

MLA-DR1616
Lens attachment adapter
MDRL-C*16 and R-16 mm lenses

MLA-DR3125
Lens attachment adapter
MDRL-C*31 and R-25 mm lenses

MLA-DR3130

Lens attachment adapter
MDRL-C*31 and R-30 mm lenses

MLA-DR31M255
Lens attachment adapter
MDRL-C*31 and M25.5P0.5 lenses

MLA-DR31M270
Lens attachment adapter
MDRL-C*31 and M27P0.5 lenses

MLA-DR31M305
Lens attachment adapter
MDRL-C*31 and M30.5P0.5 lenses
An asterisk (*) in "compatible light models" refers to any LED color (R, G, B or W) of the light



Cable

Options for lights (Click Product Name for Drawing)
Model
Product type
compatible light models
Length

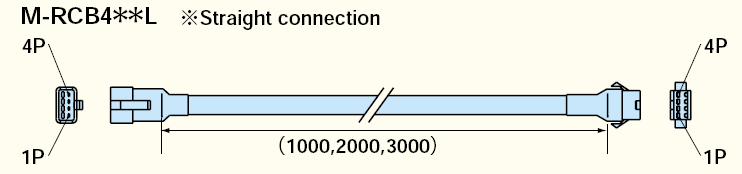

4-pin type extension cable

For all lights (except the MCEP series)

1m
4-pin type extension cable
2m
4-pin type extension cable
3m

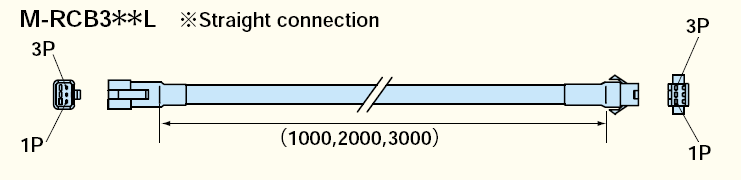

3-pin type extension cable

For the MCEP series
For lights exceeding 2.3 A (to be additionally used with 4-pin extension cable)
1m
3-pin type extension cable
2m
3-pin type extension cable
3m

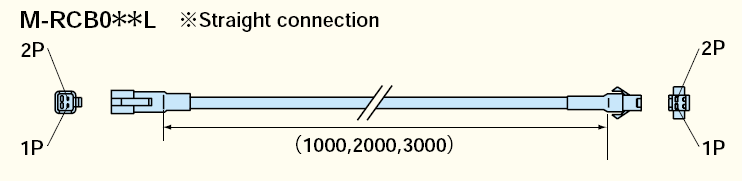

2-pin type extension cable

For power sources for built-in light fans

1m
2-pin type
2m
2-pin type
3m

MC-EXC-02
Cable for external control of DSUB15P
-
2m

MC-EXC-07
Cable for external control of DSUB25P
-
2m



Usage of polarizing plates and imaging example


Without a polarizing plate


With a polarzing plate
(sample image: A camera lens observed from the image side)


  1. Attach the polarizing plate to the lighting part of the emitting side.
  2. Attach the polarizing filter at the end of the lens on the detection side.
  3. When either the polarizing plate or fibers is rotated, is changes the luminance distribution of the image. At an arbitrary position, it cuts the regular reflection to produce and image with the glare partly reduced.



LED spectroscopic characteristics
The diagram below illustroate the spectroscopic characteristics of major LEDs used in the MG-Wave series.
We can also manufacture other lighting devices with different wavelengths. Please feel to contact us.
