Low - angle ring light



Features
●Providing 360-degree illumination for reflective objects from a low angle without producing reflections. Ideal for slightly uneven surfaces and scratches
●The lighting angle of zero degrees for MLRL-CR(G, B, W)46

Ma jor applications
●BGA solder ball position, shape and area inspection
●Reading of laser carving
●Inspection for scratches and dirt on wafers or glass substrates
●Edge extraction inspection and suchlike

Model explanations


Lineup of low-angle ring lights (Click Picroduct Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
Internal diameter of the ring(mm)
External diameter of the ring(mm)
lighting angle
Weight(g)

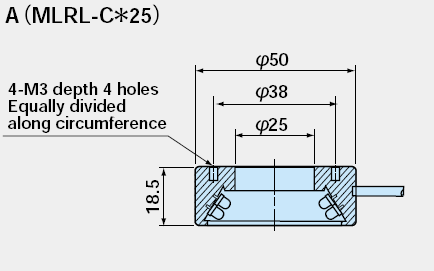

MLRL-CR25
A
Red
0.15
25
50
30
70
*MLRL-CG25
A
Greeen
0.24
25
50
30
MLRL-CB25
A
Blue
0.24
25
50
30
MLRL-CW25
A
White
0.24
25
50
30

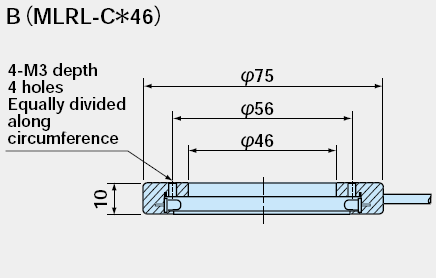

MLRL-CR46
B
Red
0.17
46
75
0
80
*MLRL-CG46
B
Green
0.27
46
75
0
MLRL-CB46
B
Blue
0.27
46
75
0
MLRL-CW46
B
White
0.27
46
75
0

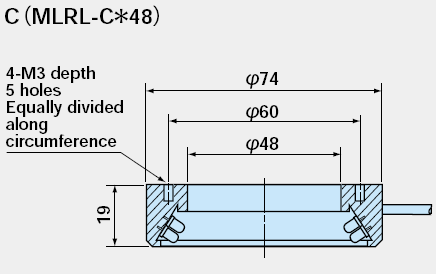

MLRL-CR48
C
Red
0.30
48
74
30
110
*MLRL-CG48
C
Green
0.47
48
74
30
MLRL-CB48
C
Blue
0.47
48
74
30
MLRL-CW48
C
White
0.47
48
74
30

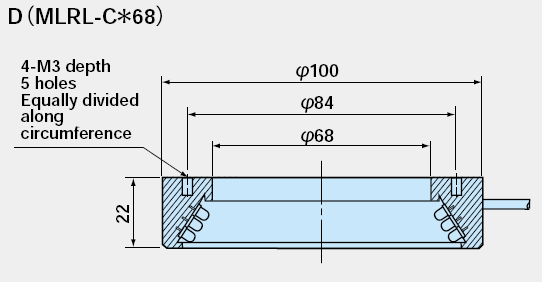

MLRL-CR68
D
Red
0.57
68
100
30
190
*MLRL-CG68
D
Green
0.61
68
100
30
MLRL-CB68
D
Blue
0.61
68
100
30
MLRL-CW68
D
White
0.61
68
100
30

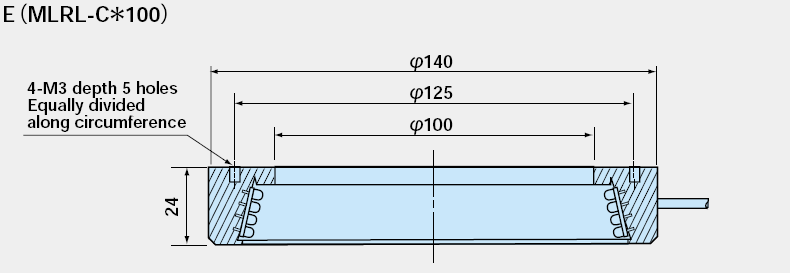

MLRL-CR100
E
Red
0.96
100
140
15
320
*MLRL-CG100
E
Green
1.03
100
140
15
MLRL-CB100
E
Blue
1.03
100
140
15
MLRL-CW100
E
White
1.03
100
140
15

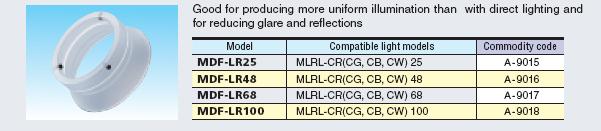

Diffusion Plate

Model
Compatible light models
MDF-LR25
MLRL-C(R,G,B,W) 25
MDF-LR48
MLRL-C(R,G,B,W) 48
MDF-LR68
MLRL-C(R,G,B,W) 68
MDF-LR100
MLRL-C(R,G,B,W) 100

        Good for producing more uniform illumination than with direct lighting and for reducing glare and reflections.


Options for low-angle ring lights

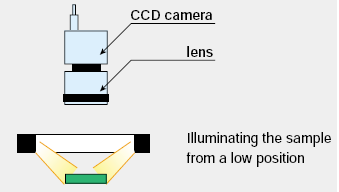

Linghting configuration

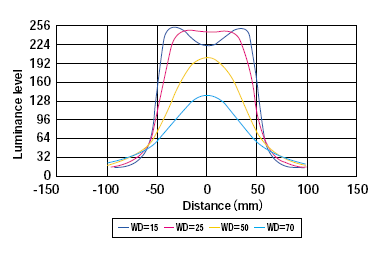

Luminous intensity distribution characteristics

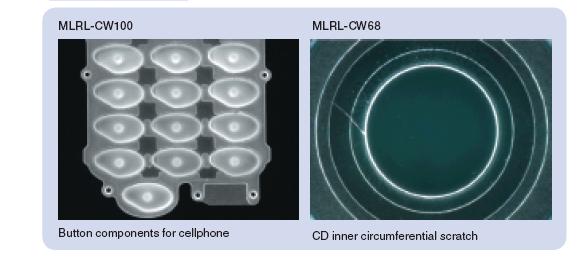

Sample Images
