Shadowless lighting


Features
●Three types are available: the ring type, the low-angle ring type and the low-angle square type
●Soft, even, diffused lighting on shiny objects
●Best for preventing the halo effect. The shadowless, low-angle square type is perfect for square-shaped objects, such as BGAs and QFPs.

Major applications
●IC impress inspection, substrate part inspection
●Inspection for dirt on the side and internal surfaces of caps
●Visual inspection of wafers
●Solder inspection, connector pitch inspection
●Inspection of BGAs and QFPs

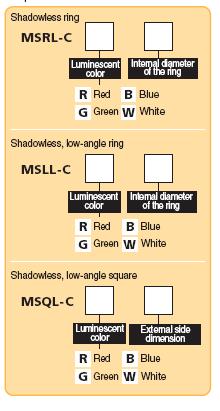

Model explanation




Lineup of shadowless, ring-type LEDs(Click Picroduct Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
Internal diameter of the ring(mm)
External diameter of the ring(mm)
Weight(g)

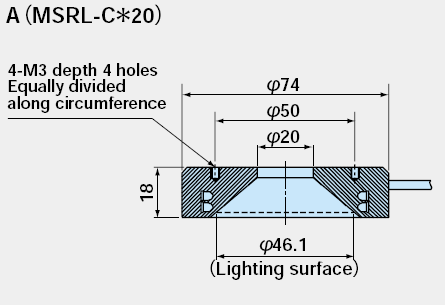

MSRL-CR20
A
Red
0.32
20
74
140
*MSRL-CG20
A
Greeen
0.50
20
74
MSRL-CB20
A
Blue
0.50
20
74
MSRL-CW20
A
White
0.50
20
74

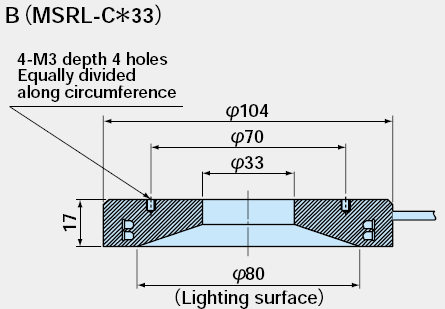

MSRL-CR33
B
Red
0.45
33
104
210
*MSRL-CG33
B
Green
0.69
33
104
MSRL-CB33
B
Blue
0.69
33
104
MSRL-CW33
B
White
0.69
33
104

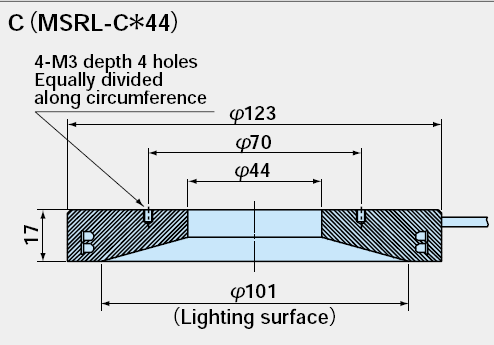

MSRL-CR44
C
Red
0.57
44
123
270
*MSRL-CG44
C
Green
0.80
44
123
MSRL-CB44
C
Blue
0.80
44
123
MSRL-CW44
C
White
0.80
44
123
Lineup of shadowless, low-angle, ring-type LEDs(Click Picroduct Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
Internal diameter of the ring(mm)
External diameter of the ring(mm)
Weight(g)

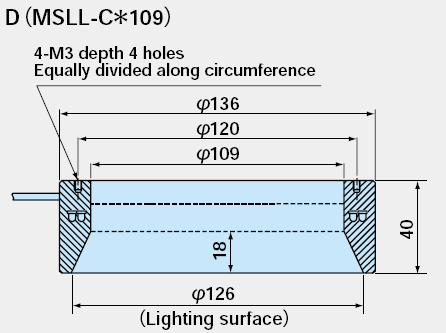

MSLL-CR109
D
Red
0.62
109
136
320
*MSLL-CG109
D
Greeen
1.10
109
136
MSLL-CB109
D
Blue
1.10
109
136
MSLL-CW109
D
White
1.10
109
136
Lineup of shadowless, lo-angle square type lights (Click Picroduct Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)

External diameter (mm)

Weight(g)

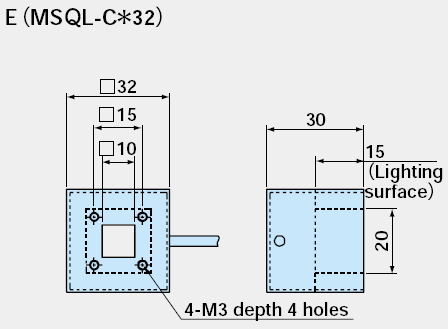

MSQL-CR32
E
Red
0.09
32x32
80
*MSQL-CG32
E
Greeen
0.14
32x32
MSQL-CB32
E
Blue
0.14
32X32
MSQL-CW32
E
White
0.14
32x32
MSQL-CR48
F
Red
0.13
48x48
120
*MSQL-CG48
F
Green
0.20
48x48
MSQL-CB48
F
Blue
0.20
48x48
MSQL-CW48
F
White
0.20
48x48

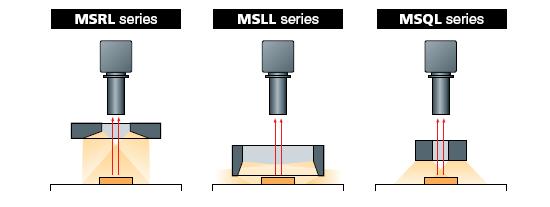

Lighting configuration

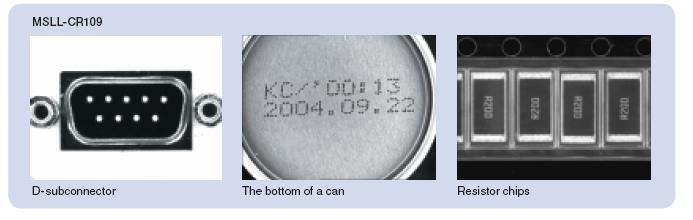

Imaging examples

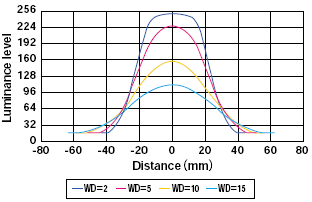

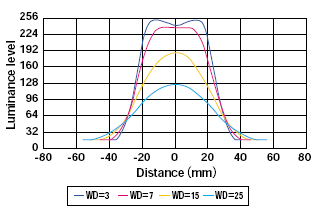

Luminous intensity distribution characteristics
