Large Dome lighting


Features
●Evenly illuminates the surface of an object by reflecting inbound light from the lower part of the dome onto the entire dome from 360 degrees
●A pseudo-coaxial box has been placed on the upper part of the dome and a low-angle ring has been placed on the lower part of the dome to meet any lighting need

Major applications
●Inspection of the print on the bottom of aluminum cans
●Curved metal surfaces and similar surfaces

Model explanation

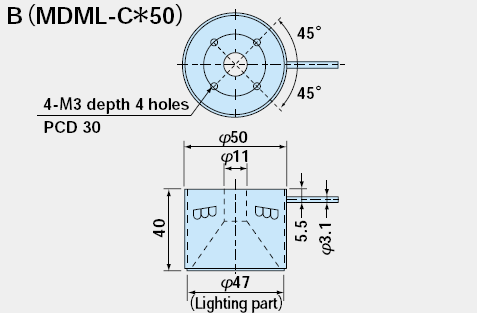

Lineup of large dome (Click Product Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
Intermal diameter of the dome (mm)
External diameter of the dome (mm)
Weight (g)
Total
Coaxial area
Light guinde area
Reflective area
Low-angle area
A
Red
1.16
0.16
0.36
0.32
0.32
26
156
160
A
Green
1.86
0.31
0.55
0.50
0.50
26
156
A
Blue
1.86
0.31
0.55
0.31
0.50
26
156
A
White
1.86
0.31
0.55
0.50
0.50
26
156



Imaging examples
Lid of the can: With the direct ring,it is difficlt to recognize characters because of the printed elements and shadows of the inclined parts.With the dome light,however,it is possible to clearly recognize characters by illuminating the object omni-directionally.
Image with the dome light (MDML-CR156)


Image with the direct ring (MDRL-CR31)

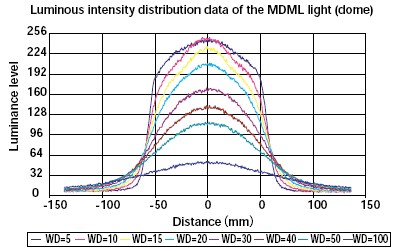

Luminous intensity distribution characteristics
