Small Dome lighting


Features
●Adds a low-cost pseudo dome light alternative to the lineup of larger and more expensive dome lights

Major applications

●Inspection of the print on the bottom of aluminum cans
●Curved metal surfaces and similar surfaces

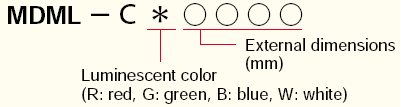

Model explanation

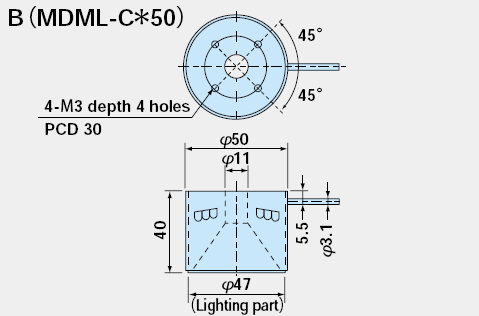

Lineup of small dome(Click Product Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
Internal diameter (mm)
External diameter (mm)
Weight(g)
B
Red
0.24
11
47
130
B
Green
0.37
11
47
B
Blue
0.37
11
47
B
White
0.37
11
47

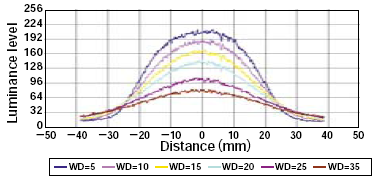

Luminous intensity distribution characteristics

MDML-CR50
