LED Spot Projector
MSPP Series

* Support for width of 2 METERS
            - Can be used even when robots are close to inspection targets.
            - Allows for a wide range of movement for robots & other units in motion.
            - Installation to avoid heat sources is possible/es.

* Low temperature emission and low energy consumption make it possible to save energy and reduce environmental load.
            - Amazing brightness and energy saving is realized by using LED

* Support for IP67 , IP(Ingress Protection) is a standard for protection against the invasion of foreign of foreign objects and water.
            - Installation is possible without worrying about water droplets or oil mist.

 * Variable irradiation range
            - Offering the two types of narrow lighting area and lighting area. The lighting area range can be modified for each type.

* Replacement of cover glass is possible for ease of maintenance.

* Connection of a cable supporting spatter is possible.

Increasing the performance of image processing and contributing to a significant improvement in image quality in defects

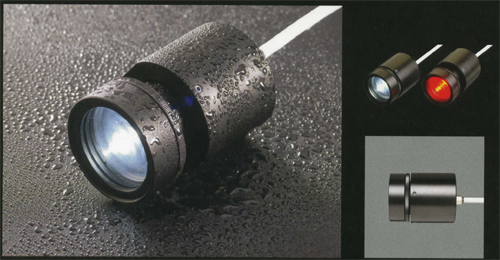

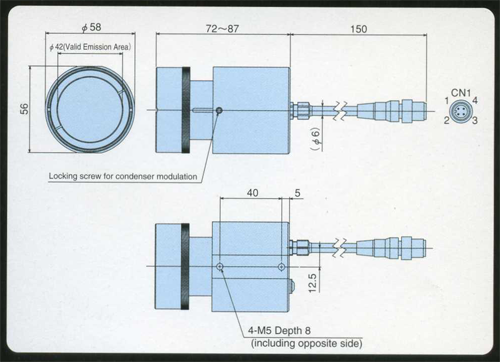

Wide Lighting Area Type
MSPP-CR/G/B/W42

• Realizing a wide lighting area range and uniformity.
  WD2m     Φ300-900mm
  WD1m     Φ170-400mm
  WD0.5m   Φ80-230mm

• Protective Construction Supports IP67. Installation can be performed without worrying about water drops or oil mist.
• Cover glass can be replaced. Maintenance is easy to perform.
• Low heat generation & low energy consumption.
• A versatile connector is used, making it possible to use cables which support spatter.
• Long life span.
• A line up of AC input power sources with 1 and 3 ch output. External digital or analog control is also possible.
• Supports RoHS Directive and CE Marking.

MSPP Series

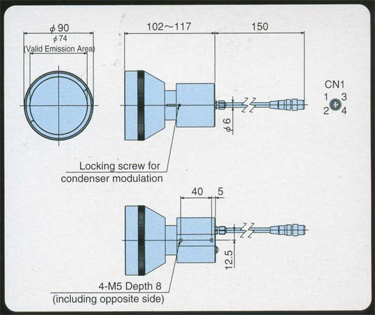

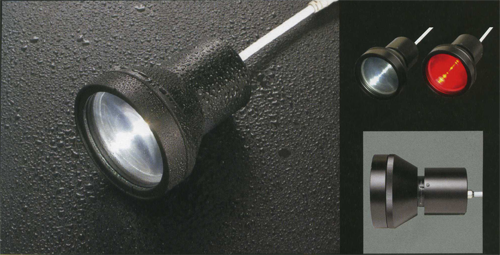

Narrow Lighting Area Type
MSPP-CR/G/B/W74

• Realization of amazing brightness.
  WD2m at 80 mm 2,000 Lx (Industry-leading illuminance)
  WD2m at 200 mm APProx. 800 Lx

• Structure allowing a variable Lighting Area. Installation distance and lighting area can be modified flexibly.
• Protective Construction Supports IP67 . Installation can be performed without worrying about water drops or oil mist.
• Cover glass can be replaced. Maintenance is easy to perform.
• Low heat generation & low energy consumption.
• A versatile connector is used, making it possible to use cables which support spatter.
• A line up of AC input power sources with 1 and 3 ch output. External digtal or analog control is also possible.
• Supports RoHS Directive and CE Marking.

*As of September.2007

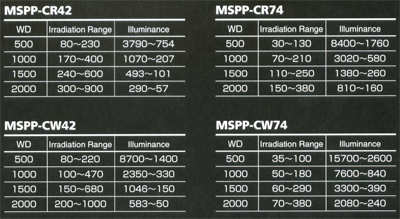

Illuminace and Lighting Area Range *These are not guaranteed values.

*Irradiation range is 50% or greater than the maximum illumainace

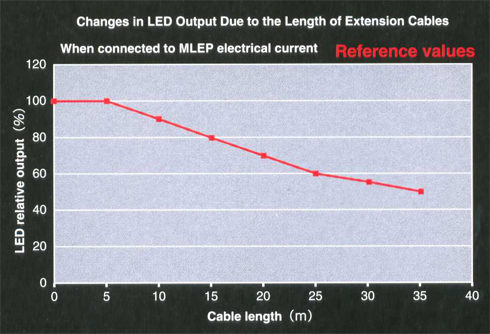

Relation of Cable Lenght and Illuminace

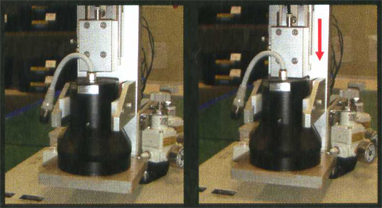

IP67 Leak Test
IP (Ingress protection) is a set of standard measures related to the protection of products from solid foreign objects and water. IP is prescribed by the Japanese Industrial Standards Committee (JISC9020) and the International Organization for Standardization (IEC60529)
IP67 is a level of protection that can withstand being submerged in water at a depth of 1 mater for 30 minutes.

In regards to the condition of 30 minutes in a depth in a depth of 1 meter of water, a total inspection was performed for the presence of leaks by using an air pressure of 0.05 MPa is approximately twice the required condition.

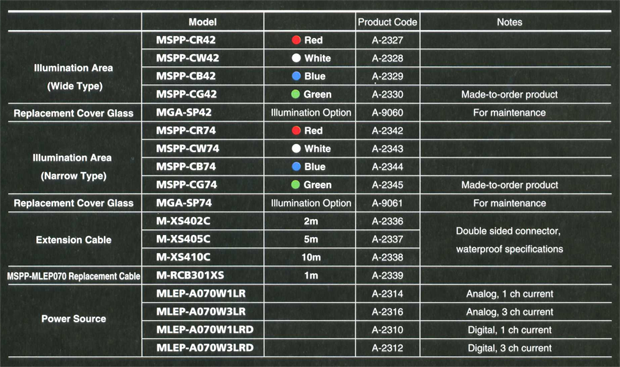

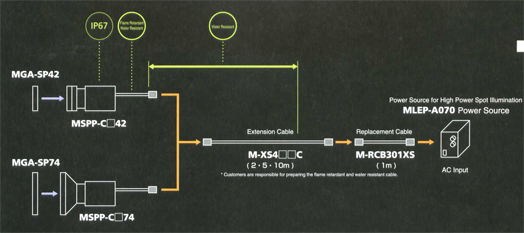

MSPP Illumination System Connection Flow
