: : : : : : : : : : Feedback halogen type light sources : : : : : : : : : :



Feedback halogen type light source can alwaays illuminate the preset qunatity of light by monitoringthe light from the halogen lamp and automatically correcting subtel differences inquantity as time passes.

Simplified integrated feedback light source . . . . . . . . . . . . . . . . . .

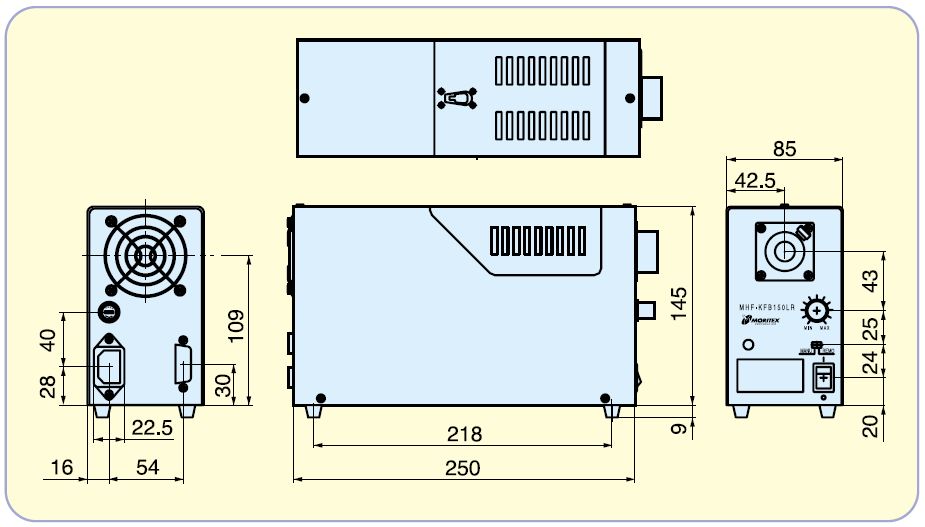

Click for drawing
MHF-KFB100LR
MHF-KFB150LR
Input voltage
AC100-230 [V]50/60 Hz
Service temperature and humiduty
0~45 ํC/20~80% RH
Compatible lamp *1
LM-100
LM-150
Lamp's voltage
DC11.7V+/-0.2V(at max)
DC14.7V+/-0.2V(at max)
  • Internally monotors the quantity of light from the lamp without a feedback fiber and corrects the quantity real time.
  • light quantity control stapbility for lamp is within +/- 1% (LED indicates stability/instability of light quantitycontrol.)
Average lamp life *2
1,000 hrs. (DC12.0V)
50 hrs (DC 15.0V)
Average luminosity *3
30,000Lx
55,000Lx
Color temperature *4
3100 ํ K
3300 ํ K
Feedback function
Stability of a lamp : within +/- 1%
Protective function
Out put is stoped in the event of over current or high temperature
High-accuracy integrated feedback light source . . . . . . . . . . . .

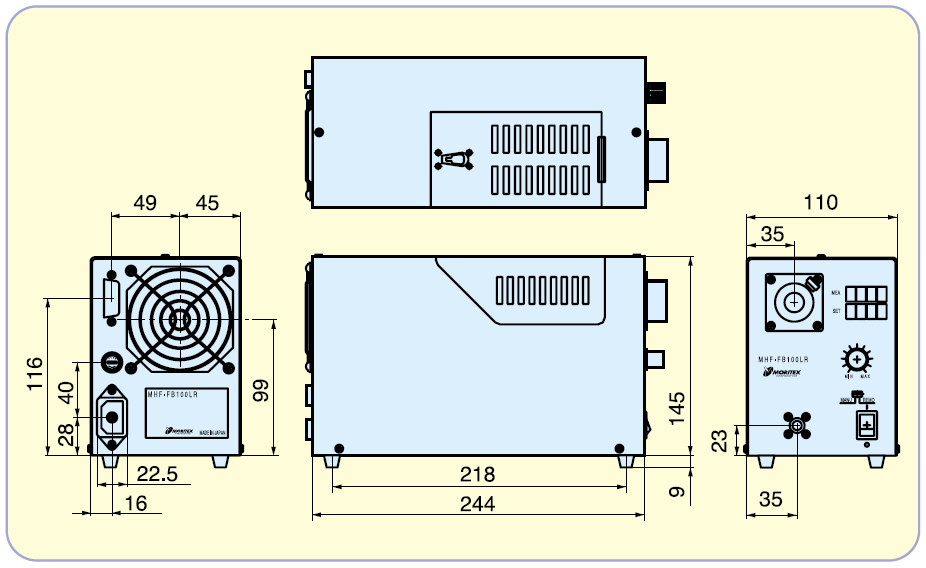

Click for drawing MHF-FB100LR MHF-FB150LR
Input voltage
AC100-230 [V]50/60 Hz
Service temperature and humiduty
0~45 ํC/20~85% RH
Compatible lamp *1
LM-100
LM-150
Lamp's voltage
DC11.7V+/-0.2V(at max)
DC14.7V+/-0.2V(at max)
  • Light Quantity control tability for lamp withi n+/- 1% (The font panal has a light quantity indication window indicate the preset value and actual measurement in per cent.)
  • When changing alamp,light quantity control stability is within+/- 5% even without correction
  • Communication function (Compatible with RS-232C,RS485) (Option)
  • light guide with reference (See below)
Average lamp life *2
1,000 hrs. (DC12.0V)
50 hrs (DC 15.0V)
Average luminosity *3
30,000Lx
55,000Lx
Color temperature *4
3100 ํ K
3300 ํ K
Feedback function
Stability of a lamp : within +/- 1%
Stability when changing a lamp : Within+/- 5%
Protective function
Out put is stoped in the event of over current or high temperature

High-accuracy integrated feedback device . . . . . . . . . . . . . . . . .

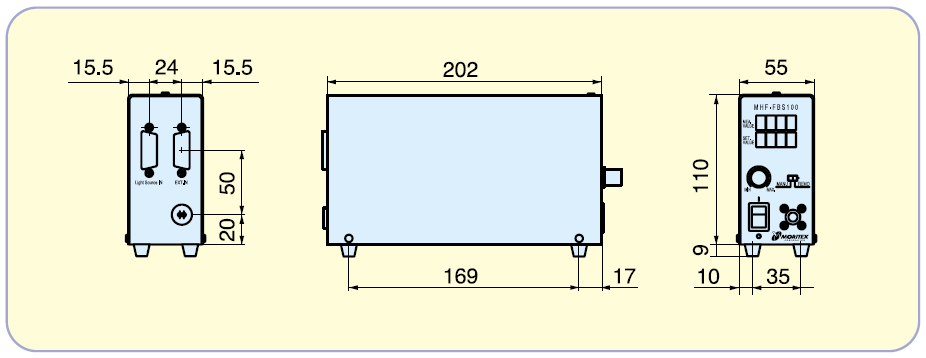

Click for drawing
 MHF-FB100 MHF-FBS150
Indication
Digital panal meter
Input voltage
AC100-230V 50/60Hz
Input voltage (Typical)
0.3/0.5A(at AC 100/230V )
Service temperature and humiduty
0 to + 40 ํC / 20 to 80% RH(no condensation)
Lamp ON/OFF function
YES (DC24V )

Alarm output
YES (Burnt out lamp, light quantity correction , etc)
Open collector output
MANU/REMO Input
YES
External input
Setting is possible by inputing 0 to 5V when REMO is selected

For MHF-FB100LR/FB150LR, MHF-FBS100/FBS150
Special light guide with reference
  • For high-accuracy integrated and high-accuracy separate type light source.Use the spercial light guide with reference.

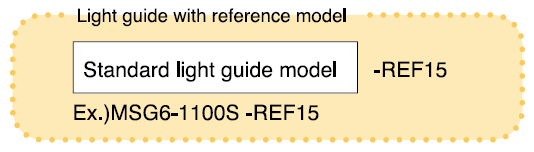

    (Photo : Straight light guide MSG6-1100S-REF15)
