............ Dome type light guide .............................................................................................................................

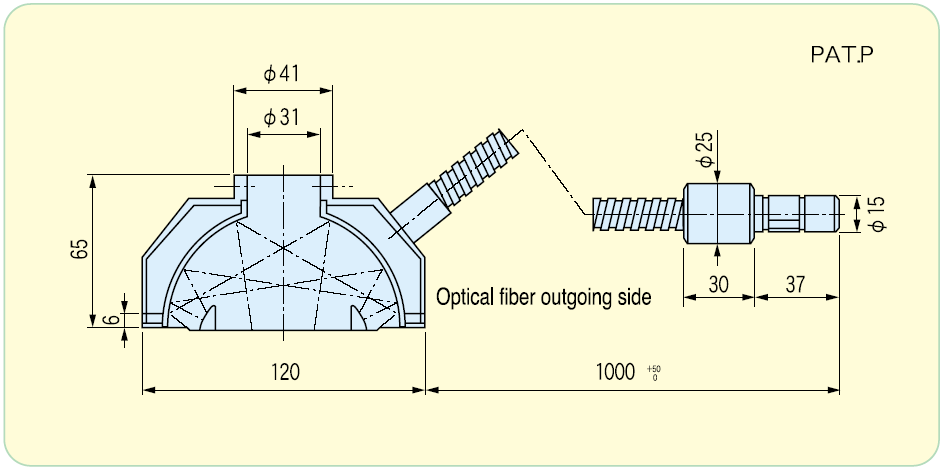

MDP120 - 1000S (Click for Drawing) An indirect light is reflected off the interior of the dome, resulting in 360 of even and diffuse illumination. Suitable for applications with high reflection and halo problems.
|
|
|
|
* Compact products (outside diameter of 54 and 80) can be manufactured
|
............. Diffuse lighting adaptor MD series .....................................................................................................

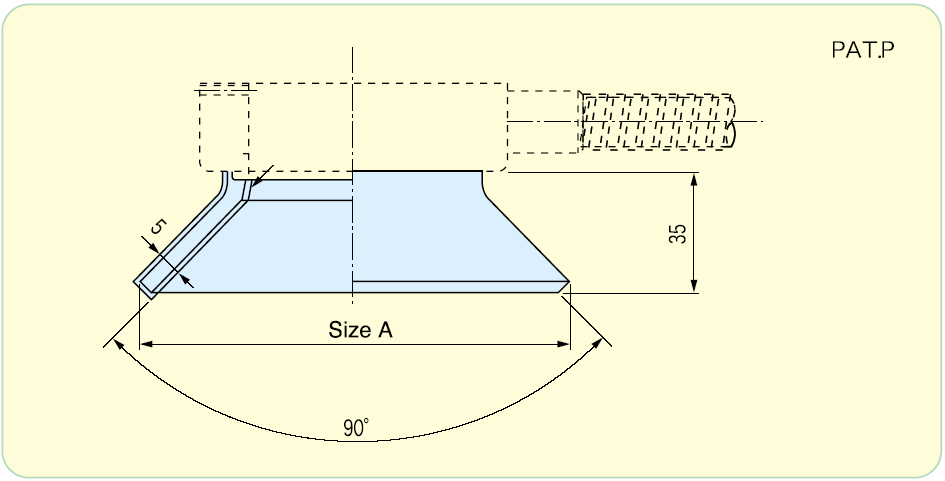

MD02 ~ 06 (Click for Drawing) For use with standard ring light guides, it reduces reflection and halo effects by illumanating from the inside surface of the dome
|
|
|
| Product name |
A(mm) |
Compatible riing light |
| MD - 02 |
101 |
MRG31- |
| MD - 03 |
121 |
MRG48- |
| MD - 04 |
115 |
MRG53- |
| MD - 05 |
126 |
MRG61- |
| MD - 06 |
140 |
MRG75- |
|
* Ring light guide MRG series is sold separately
|
............. Reflection type diffuse lighting adaptor.............................................................................................

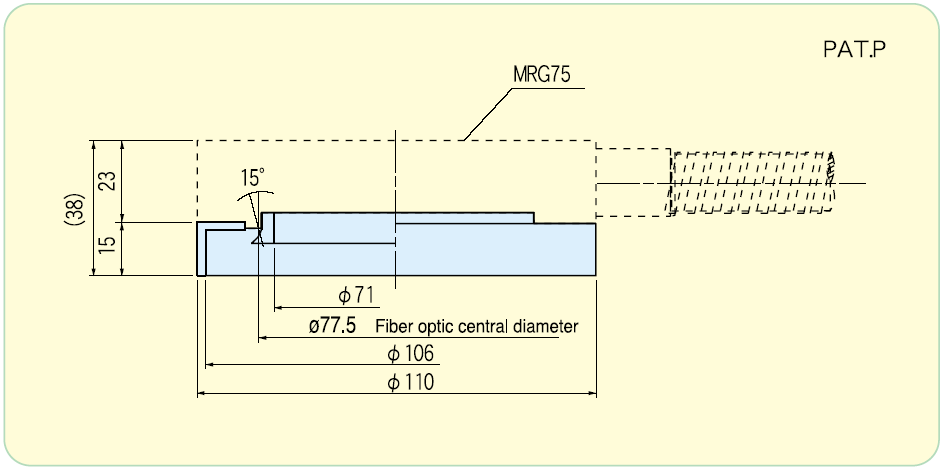

MDC - 06 (Click for Drawing) Light output from the ring is directed by a reflection ring to the object. The result is a diffuse and uniform light suitable for laser mark recognition applications
|
|
|
|
* Ring light guides MRG75 - 1000S/1500S are sold separaely
|
|
