: : : : : : : : : : Long Width Slit Light Guides : : : : : : : : : :

180mm wide slit light guide can be connected to achieve joint-less, even, and bright slit light in lengths of 180mm multiples. Long products from 360mm to 1,440mm can be manufactured. Useful in LCD and PDP glass substrate inspection, sheet-type product inspection, and other line CCD camera applications.

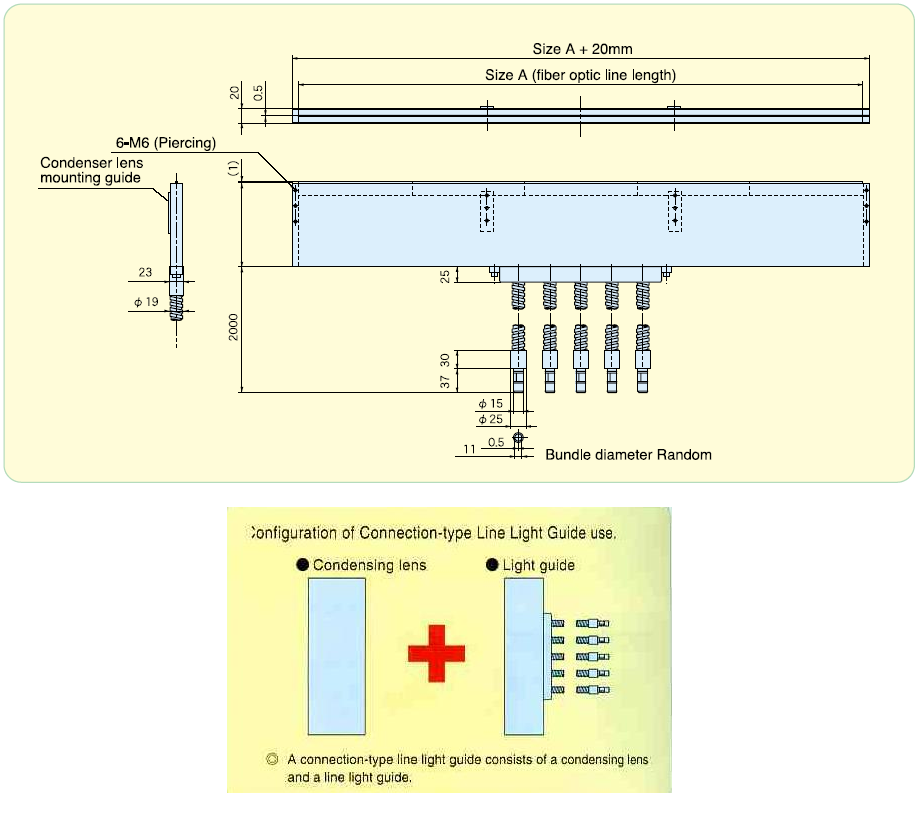

............Slit light guide (glass fiber) .................................................................................

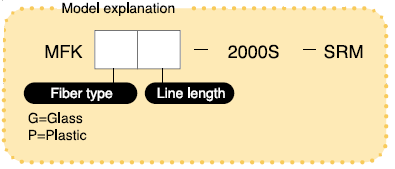

MFKG Series (Click for Drawing)

Model
A(mm)
B(mm)
No. of incoming radiations
MFKG360 -20000S-SRM
360
100
2
MFKG540 -20000S-SRM
540
100
3
MFKG720 -20000S-SRM
720
150
4
MFKG900 -20000S-SRM
900
150
5
MFKG1080 -20000S-SRM
1080
150
6
MFKG1260 -20000S-SRM
1260
150
7
MFKG1440 -20000S-SRM
1440
150
8





............. Slit light guide (plastic fiber) .............................................................................

MFKP Series (Click for Drawing)

Model
A(mm)
B(mm)
No. of incoming radiations
MFKP360 -20000S-SRM
360
100
2
MFKP540 -20000S-SRM
540
100
3
MFKP720 -20000S-SRM
720
130
4
MFKP900 -20000S-SRM
900
130
5
MFKP1080 -20000S-SRM
1080
130
6
MFKP1260 -20000S-SRM
1260
130
7
MFKP1440 - 20000S-SRM
1440
130
8

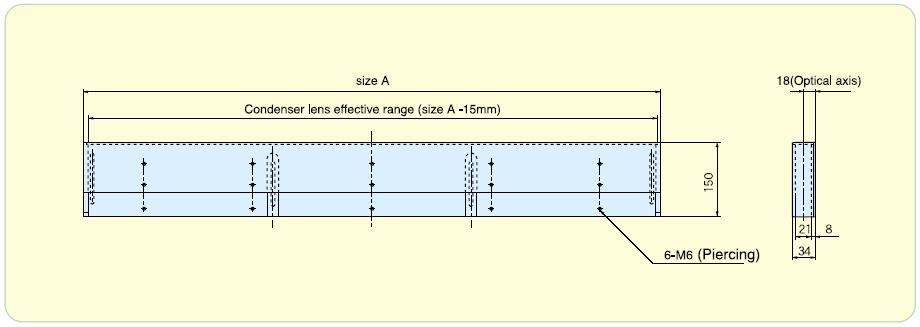

............ Condenser lens for long width slit light guides ........................................................

MLL Series (Click for Drawing)

Model
A(mm)
MLL - 360
396
MLL - 540
576
MLL - 720
756
MLL - 900
936
MLL - 1080
1116
MLL - 1260
1296
MLL - 1440
1476
