: : : : : : : : : : Filters And Adapters : : : : : : : : : :

A filter or adapter can be attached to the illumination port of Moritex's straight, two-branch, or multi=branch light guide to change the color temperature of the fiber illumination or the color to red, green, or yellow. Various filters are also made for the condensigh lens ML-50 to obtain high illuminance.
Polarizing filter for straight light guides

            ME-01

Can be attached to either the filter holder (FAF-10) or various lenses.

Model Commodity Code
ME-10
A-8340

Side light adapter

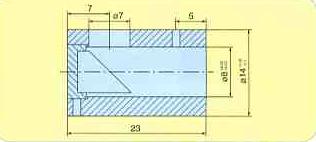

            MQ-01
Used to bend illuminaion 90° from the light guide output axis


Model Commodity Code
MQ-10
A-8346

Light guide connector adapter

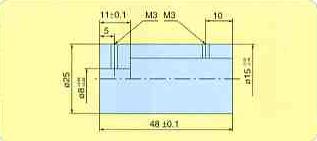

           MAD-01
This adapter is to join the ferrules on the output side of one light guide to the input side of another.


Model Commodity Code
MAD-10
A-8347

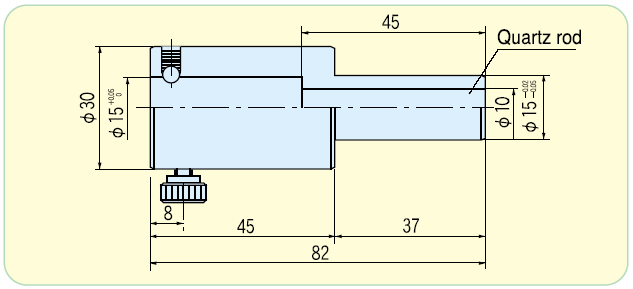

Quartz adapter

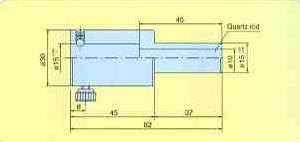

           KA-01
Use this adapter when combining a100W light source and a plastic light guide.


Model Commodity Code
KA-10
A-8348

Inner diameter adapter




Filter holder FAF-10




Filters MLF-10,MLF-20,MLF-30
( Click for Drawing)
Model Product Name
Commodity Cody
MLF-10 Color temperture changing filter
A-8322
MLF-20 R.G.Y. color filter
A-8323
MLF-30 Diffusing filter
A-8324
MMLF filter frame MLF filter frame
A-8325


Filters for ML-50 (Condenser lens) MRF-10,MRF-20,MRF-30
Model Product name Commodity Code
MRF-10 Color temperature changing filter
A-8331
MRF-20 R.G.Y. color filter
A-8332
MRF-30 Diffusing filter
A-8333
MRF= filter frame MRF filter frame
A-8334
* Screw pitch M25.5x0.5


Ring light options .................................................................................................

Diffusing filter
Model
Compactible model
Outside diameter
Thickness (mm)
MK-02
MRG-31
46
5.5
MK-03
MRG-48
65
5.5
MK-04
MRG-53
69
5.5
MK-05
MRG-61
76
5.5
MK-06
MRG-75
90
5.5
When this filter is attached on the outgoing edge of a ring light guide, uneven luminosity is reduced and light appears softer

Color temperature changing filter
Model
Compactible model
outside diameter
Thickness (mm)
MF-02
MRG-31
46
5.5
MF-03
MRG-48
65
5.5
MF-04
MRG-53
69
5.5
MF-05
MRG-61
76
5.5
MF-06
MRG-75
90
5.5
Use this filter for color photography

Short working distance adaptor
Model
Compactible model
Outside diameter
Thickness (mm)
MA-02
MRG-31
44
7
MA-03
MRG-48
66
7
MA-04
MRG-53
70
7
MA-05
MRG-61
77
7
MA-06
MRG-75
90
7
It is the best when working distance is short and light ay a low lighting angle is necessary.

Polarizing Filter
Model
Compactible model
Outside diameter
Thickness (mm)
MI-02
MRG-31
44
8.5
MI-03
MRG-48
63
8.5
MI-04
MRG-53
67
8.5
MI-05
MRG-61
74
8.5
MI-06
MRG-75
88
8.5
Use this filter to prevent halo effects and irregular diffusion caused by lighting

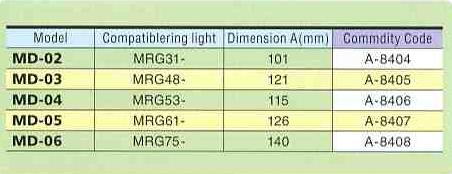

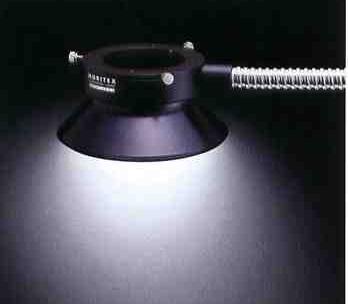

Diffuse illumination adapter MD Series : MD02~06
Ring light guide MRG series is sold separately.

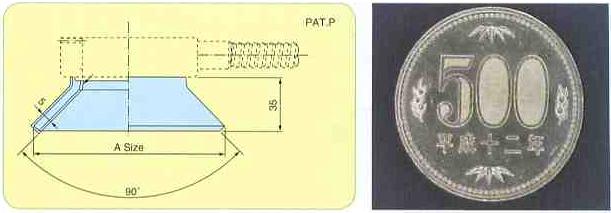

          if adiffuse illumination adapter (MD Series is attached to the standard ring light guide, the cone shaped adapter acdepts he light which illuminates the entire inside of the cone and profuces uniform diffuse illuminaion with decrease irregularity.



Reflection type diffuse lighting adapter : MDC- 06
The ring light guide MRG-75-1000S/1500S is sold separately.

          When this reflection type diffuse lighting adapter is used, light from the ringlight guide is directed outward through reflection which results in diffuse and uniform illumination ideal for laser mark recognition applications.




Other options ...............................................................................................................................................
  • MQ-01 (Side light adapter) *Used to bend illumination 90 from the light guide output axis.
  • MAD-01 (Light guide connector adaptor) * This adapter is to join the ferrules on the outgoing side and light source side of standard light guides.
  • KA-03 (Quartz adapter) * Use this adapter when combining a 100W light source and a plastic light guide.

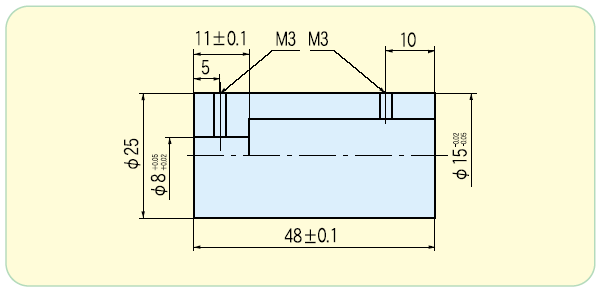

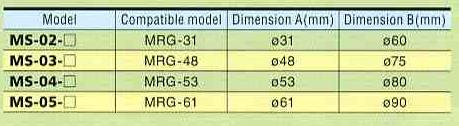

Inner diameter adapter (click for Drawing)
Model
Compatible model
A (mm)
B (mm)
MS-02-
MRG-31
31
60
MS-03-
MRG-48
48
75
MS-04-
MRG-53
53
80
MS-05-
MRG-61
61
90
Specify (inner diameter) as you like.
Tolerance for inner diameter is + 0.1/+0.

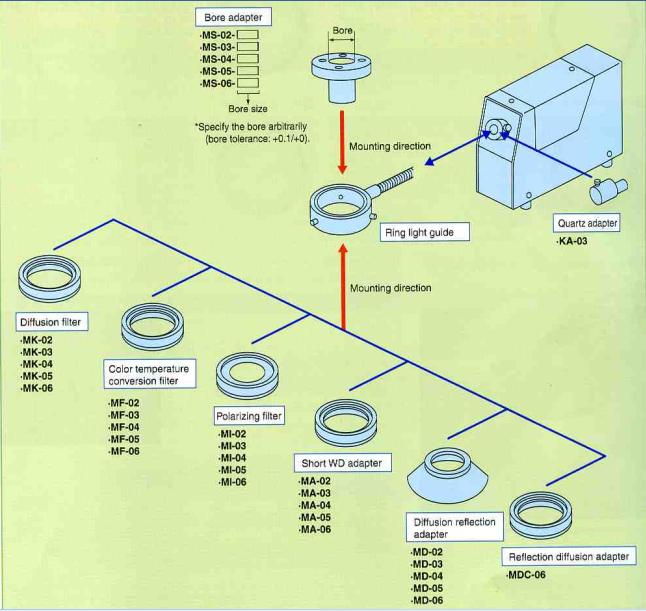

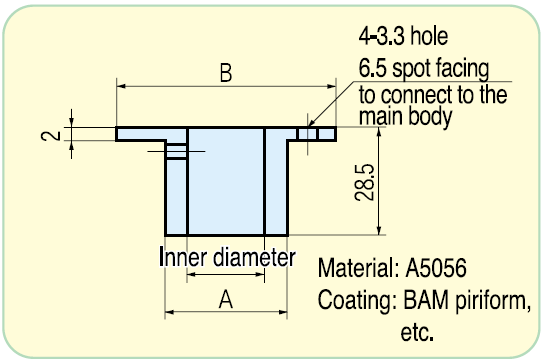

Option Attachment Drawing for Righ Light Guide

          For the light guide compatibilities, specifications, and commodity codes of the options,see the corresponding pages.
