: : : : : : : : : : CCD Cameras / Display Monitors / Printers : : : : : : : : : :


CCD Cameras

XC - ES50/30 (Black and white camera)

(Click for Drawing)

- 1/2 black and while C-mount developed by the lastest high density packaging.

- 29 x 29 x 32mm. Can be installed even in a small space.

- Power source DC-700. Tripod adapter VCT-333I (sold separately)

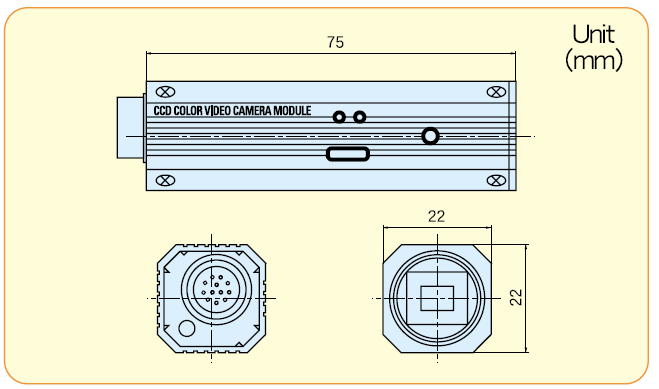

XC - 555 (Color camera)

(Click for Drawing)

- 1/2 color camera. NF - mount is used.

- Very compact and light weight.

- Power source and mount conversion adaptor are available (sold separately). Please contact us.

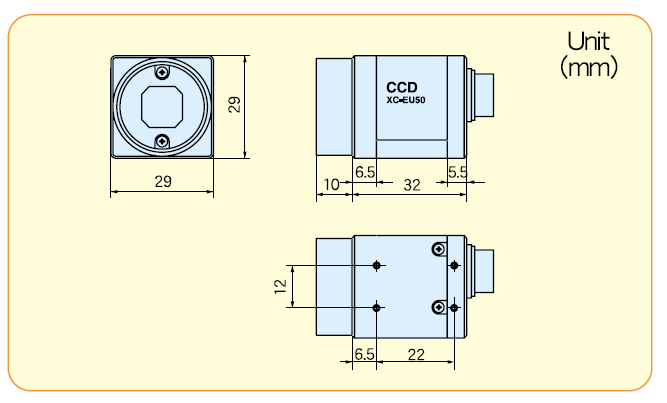

XC - EU50 (UV - camera)

(Click for Drawing)

- Near ultraviolet (365nm), compact, light weight 1/2 black and white C - mount

- More vibration proof so it operates even in harsh conditions.

- Power source DC-700. Tripod adaptor VCT-333I (sold separately)

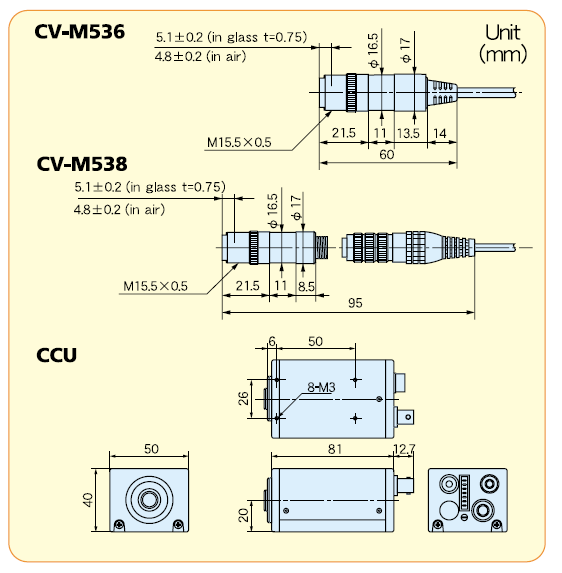

CV - M536/538 (Black and white separate head type 17)

(Click for Drawing)

- 1/2 - inch black and white camera with 380,000 effective pixels. Because of 17 mm separate camera head, it can be installed in a small space.

- 2m (M536) and 5m (M538) cables are usually used.

- AC power source VA-033B (sold separately)

- MP20 C-mount adaptor (sold separately)

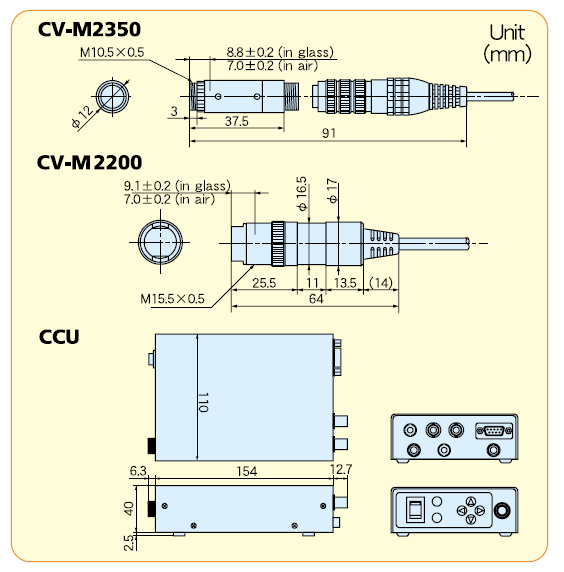

CV - M2200/2250/2350 (Color separate head type 17/12)

(Click for Drawing)

- 1/2, 1/3 -inch color camera with 380,000 effective pixels.

- Separate head allows for installation in a small space.

- AC power source VA-033A. MP20 C-mount adaptor (CV-m2200/2250) (sold separately)

- AC power source VA-033A. MP25 C-mont adaptor (CV-M2350) (sold separately)

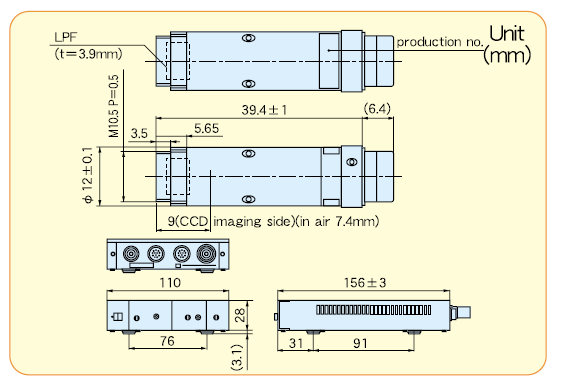

CS - 4300 (Black and white separate head type 12)

(Click for Drawing)

- 1/3 - inch black and white camera with 380,000 effective pixels.

- Separate 12mm head allows for installation in a small space

- AC adaptor CA-130B , tripod mountig fixture CPT6100 (sold separately), and DC/SYNC IN cable (sold separately)

Display Monitors & Printers

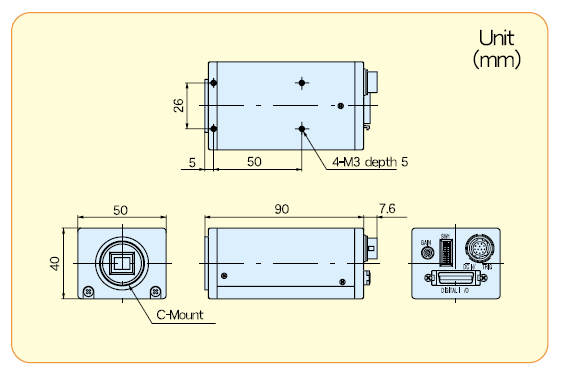

CV - M4 (B lack and white hight pixel camera)

(Click for Drawing)

- 2/3 - inch double speed SXGA black and white camera.

- 1,300 x 1,030 pixels, C - mount type.

EIA - 644LVDS 8 bit digital output

- AC power source VA - 033B (sold seperately)

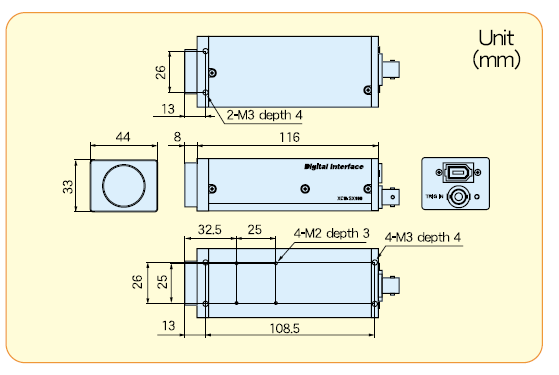

XCD - SX900 (Black and white higt pixel carema)

(Click for Drawing)

- 1/2 - inch black and white camera.

- 1,392 x 1,040 pixels, C - mount type.

- This digital camera uses IEEE1394 digital interface to output images.

- Tripod adaptor VCT - ST70I (sold separately)

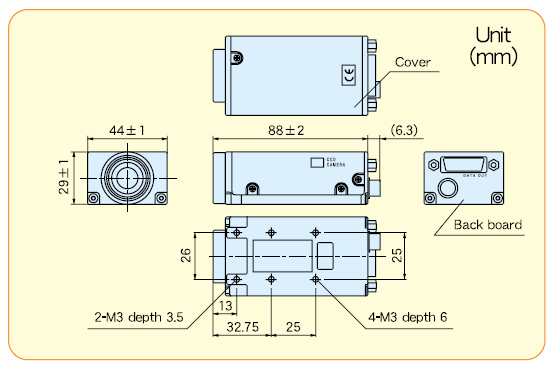

CS3910 (Black and white high pixel camera)

(Click for Drawing)

- 2/3 - inch black and white camera.

- 1,300 x 1,030 pixels, C - mount type.

- EIA-644 single channel 10 bit

- AC adaptor CA 130B (sold separately)

- DC IN cable, digital video cable (sold separately)

- Tripod adaptor CPT390 is optional (sold separately).

9VM10A/20A (9 - inch black and white display monitor)

- Select from two types acording to your budget; 10A with horizotal resolution of 600TV or more and 20A with 850TV.

PVM - 146J (14 - inch black ans white display monitor)

- Horizontal resolution of 1,000 TV. Dual circuit for image and sound input/output.

- Under scan.

PVM - 14N5J (14 - inch color display monitor)

- Horizontal resolution of 500 TV

- Compatible with NTSC, PAL, etc.

UP - 895 (Black and white printer)

- Black and white printer with a higt density head. Prints refined images.

- Operation is easy. Printing size can be selected from three types.

- Compatible with UPP - 110HG printing paper for higt quality images.

UP - 20 (Color printer)

- Color printer with dye - sublimation thermoelectric printing method that faithfully reflects images.

- Frame memory (4 frames) is used. Printing takes 16 seconds/sheet at the fastest.
