HA-12/HA-16/HA-33/HA-40/HA-62/HA-70 (Holder)
- Use the Products above with MML - STD5B shown on the left.
|
MML - XY2 (XY stage)
- Can be easily attached to MML-STD5A/5B.
- Perfect for simple experiments because it moves in both X and Y directions
|
Lens type |
Holder |
Lens outside diameter 12 |
HA-12 |
Lens outside diameter 16 |
HA-16 |
Lens outside diameter 33 |
HA-33 |
Lens outside diameter 40 |
HA-40 |
ML -Z07545.D.PL |
HA-62 |
ML-Z0220D |
HA-70 |
|

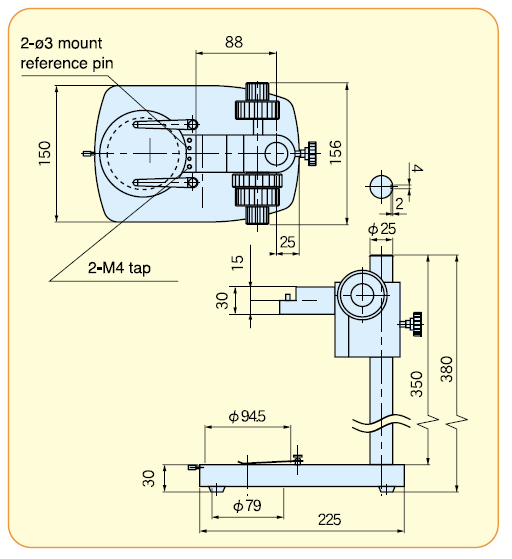

MML - STD700 (XY micro motion stage)
(Click for Drawing)
Using an option, a ring LED or light guide can be held.
It can be fixed to the stand.
|
|

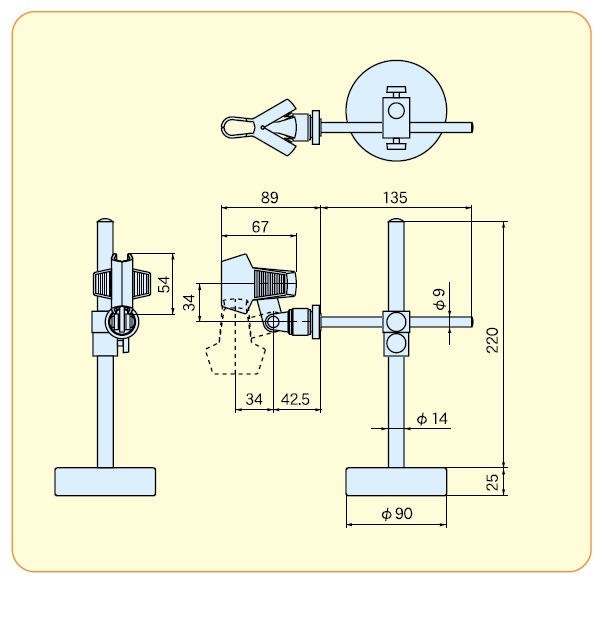

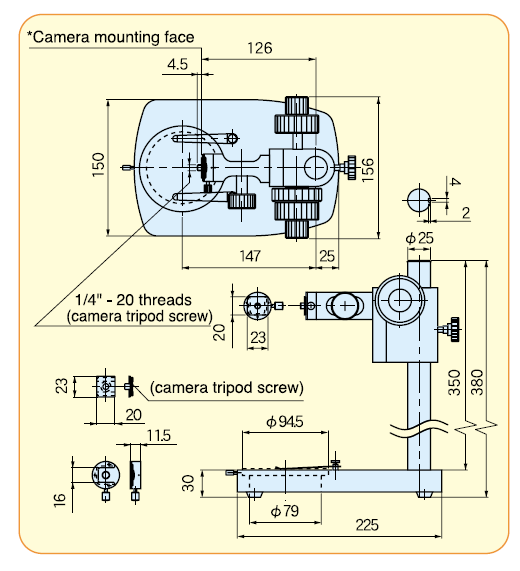

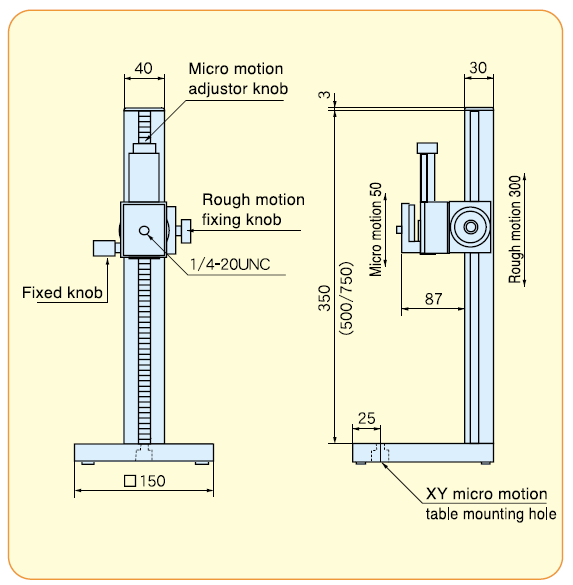

MLH - 50 (Tripod screw stand)
(Click for Drawing)
- Using an option, a ring LED or ring light guide can be held.
- They can be fixed to the back of the stand using the attached M3 screw.
* Standard pole lenght is 350mm. 500 and 750mm types are also available.
|
LED illuminator holder (Click for Drawing)
|

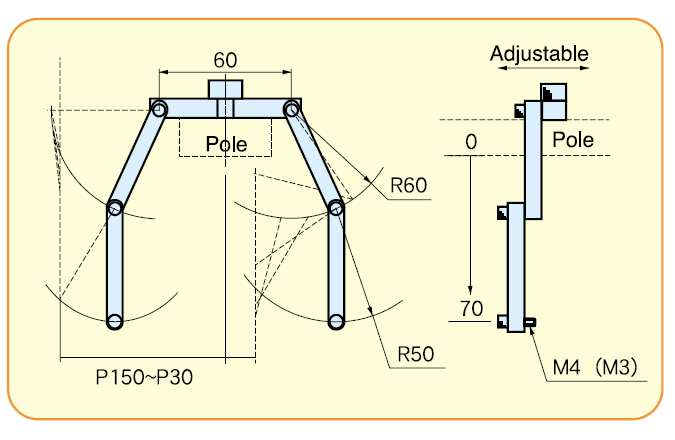

Light Guide Arms |

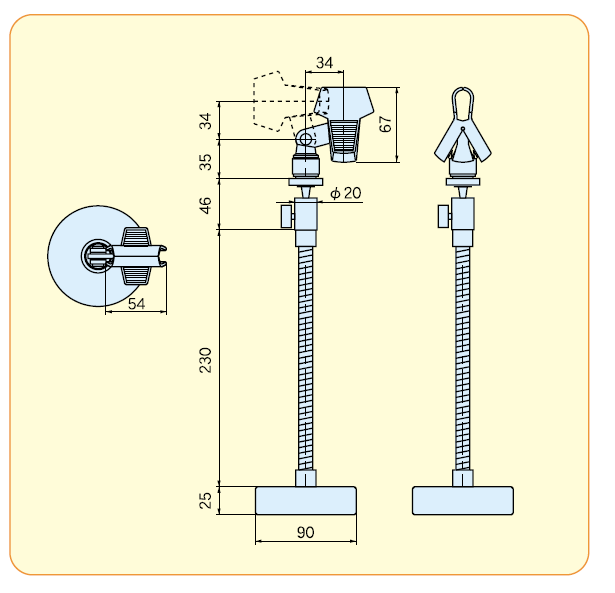

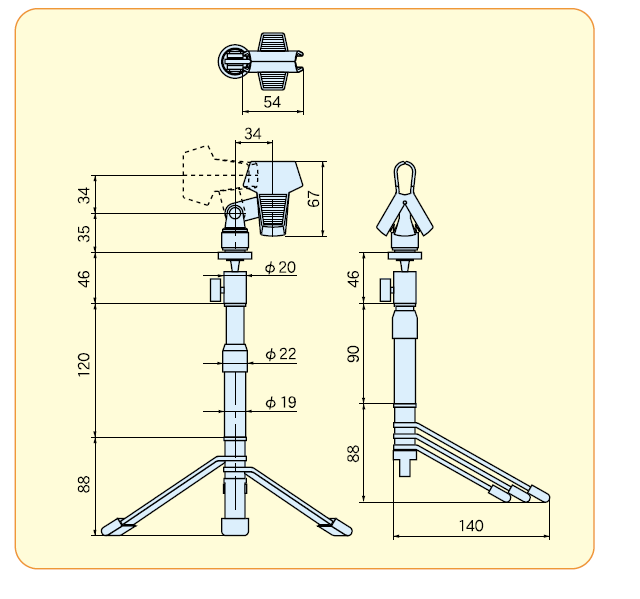

MLH - 10 (Tripod type) (Click for Drawing)
|

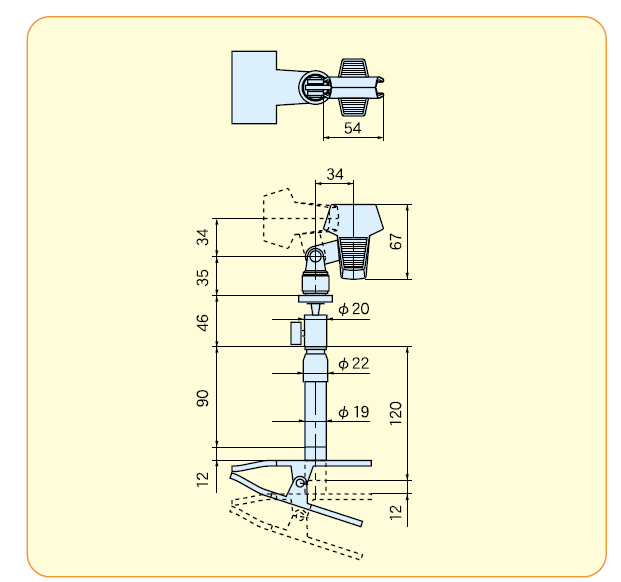

MLH - 20 (Clip type) (Click for Drawing)
|
MLH - 30 (Interlock type) (Click for Drawing)
|

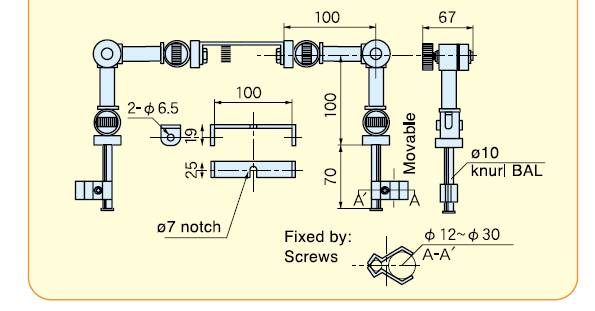

MLH - 40 (Arm type) (Click for Drawing)
|
MLH - 70 (Magnet type) (Click for Drawing)
|

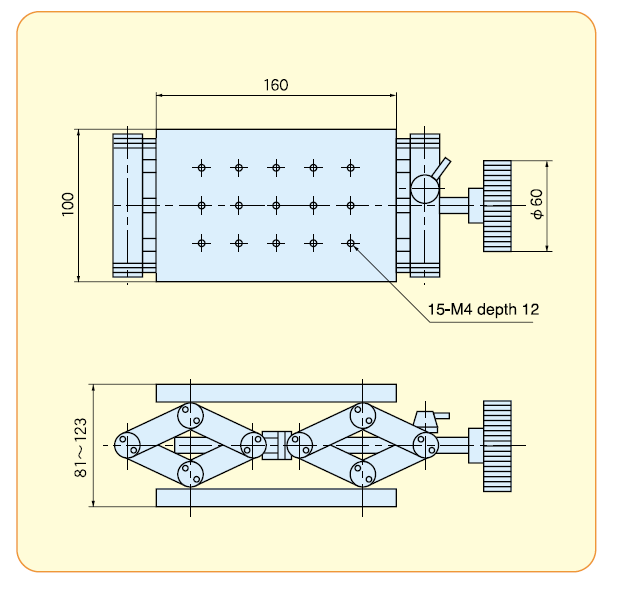

MML - STD - Z (Z stage) (Click for Drawing)
|
Pole |
Model |
Diameter |
Length |

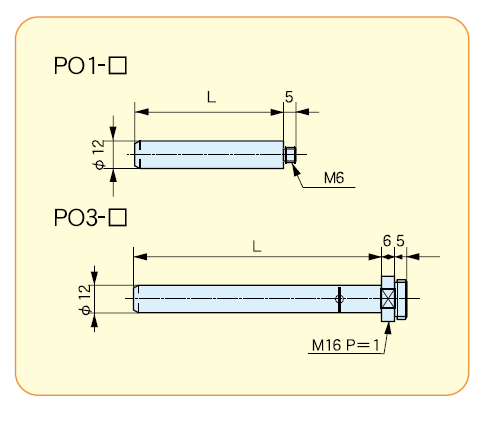

PO1-20
PO1-80 |
12 |
20-80 in multiple of soften |
PO1-100 |
12 |
100 |
PO1-120 |
12 |
120 |
PO1-150 |
12 |
150 |
PO1-200 |
12 |
200 |
PO1-250 |
12 |
250 |
PO1-300 |
12 |
300 |
PO1-400 |
12 |
400 |
PO1-500 |
12 |
500 |
|
Model |
Lenght |
Lenght |
PO3-100 |
12 |
100 |
PO3-120 |
12 |
120 |
PO3-150 |
12 |
150 |
PO3-200 |
12 |
200 |
PO3-250 |
12 |
250 |
PO3-300 |
12 |
300 |
PO3-400 |
12 |
400 |
PO3-500 |
12 |
500 |
|
|
Magnet base |
Fiber holder |

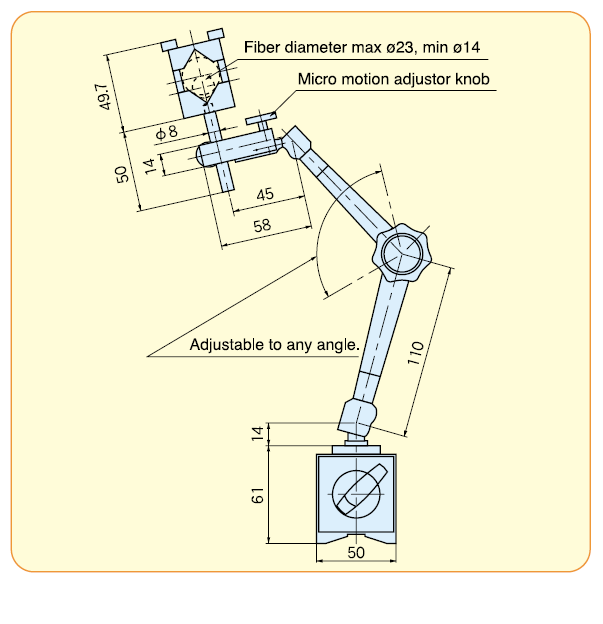

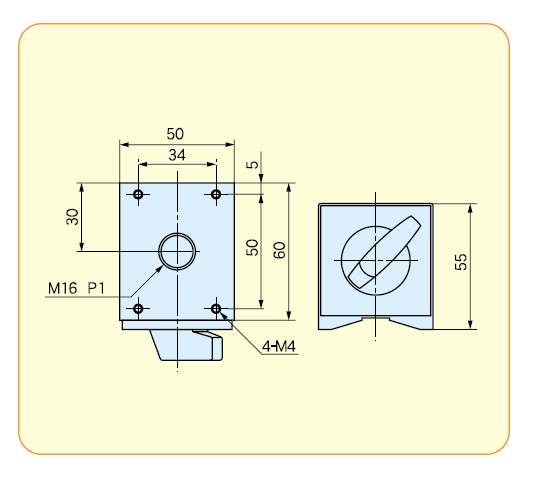

MGB - 6050 (Click For Drawing)
|

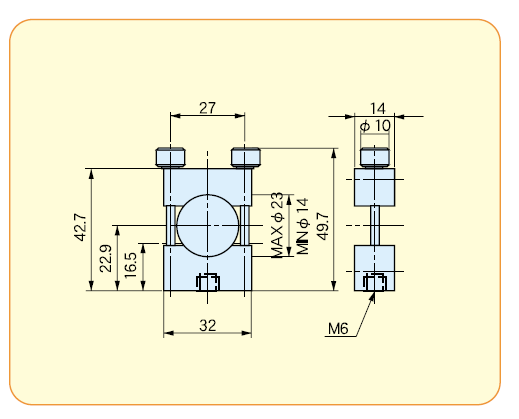

FC - 01 (Click for Drawing)
|

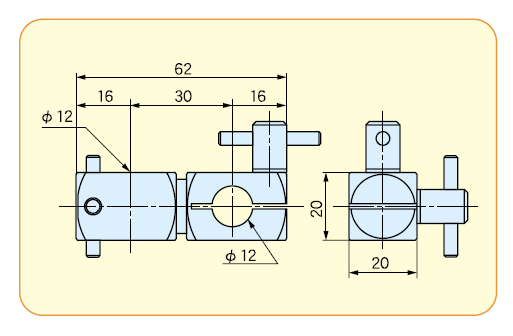

Cross clamp |
|
|

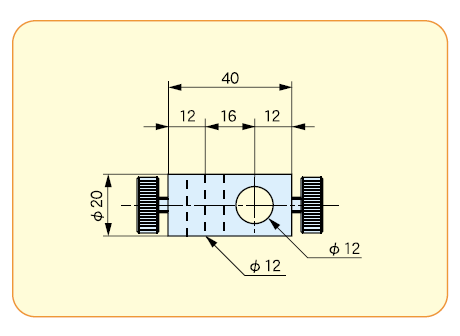

CL3 - 1212

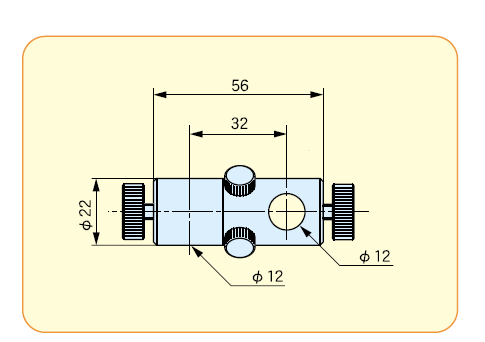

(Click for Drawing)
|
Line generator Connect this equipment between a CCD camera and monitor. It displays electronic lines on the monitor, making measuring easier |
Cross line generator
OPVG - 02B
* Cross hairs can be displayed in the center of an image.
* No misregistration because digital count method is used.
|
Back and white wipe line generator
OPVG - W2

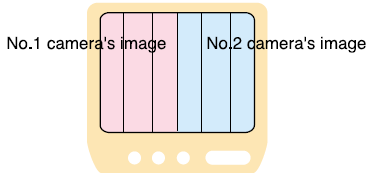

* Image from two cameras are displaed onone monitor
* A line generator and center wipe device are incorporated.
|
Video Scaler
OPVG - 100
* Dimensions of an object on the monitor can be easily measured.
* Hight cost performance.
* Crossed lines or just parallel vertical or horizotzl lines can be displayed.
|
|
|
|
|
|
|
|
|
|
|
|
|
