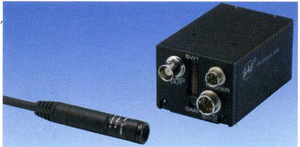

MML-CS1 Series models are thin, space-saving, and lightweight so they can be mounted on micro-head cameras. MML-CS1 Series models are mounted on 12 mm (M10.5 P0.5). |
For compact camera (12mm dia.)
MML-CS1 Series
| |
MML-CS1 Series models are thin, space-saving, and lightweight so they can be mounted on micro-head cameras. MML-CS1 Series models are mounted on 12 mm (M10.5 P0.5). |

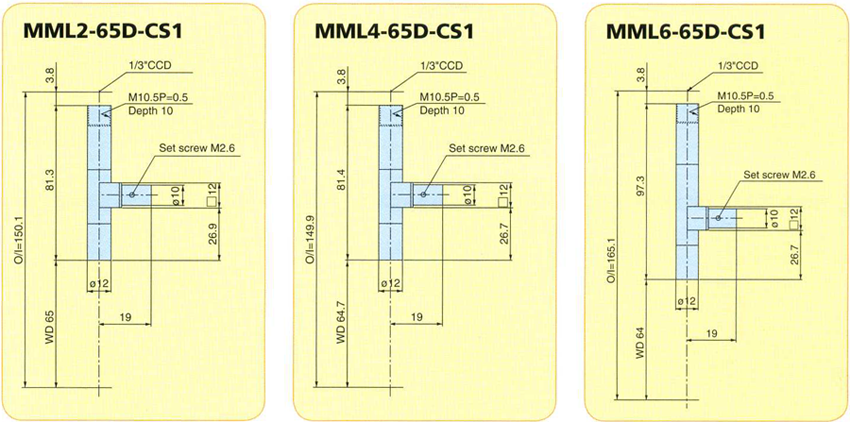

WD65mm

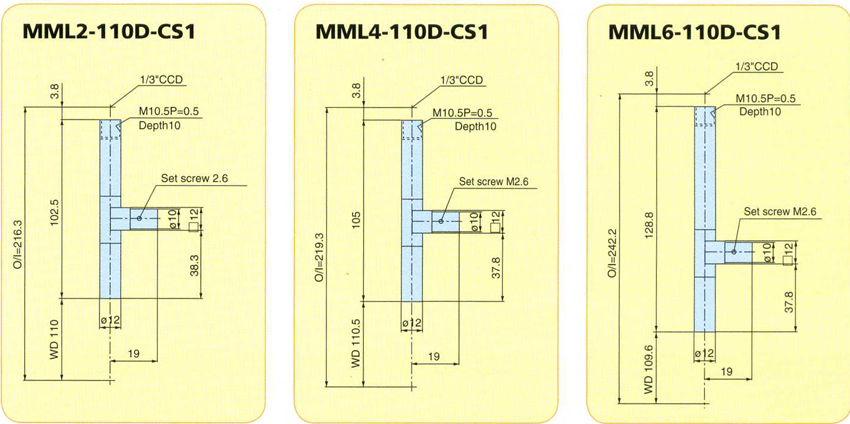

WD110mm

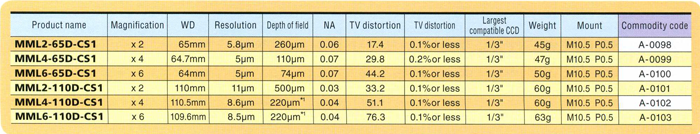

*Depth of field is calculated assuming a horizontal 320 TV resolution using a 1/3 CCD camera. (Permissible circle of confusion on the image-formation size:30 µm) But 1 is calculated based on resolution
*Resolution values are for theoretical resolution at a wavelength of 550nm.
