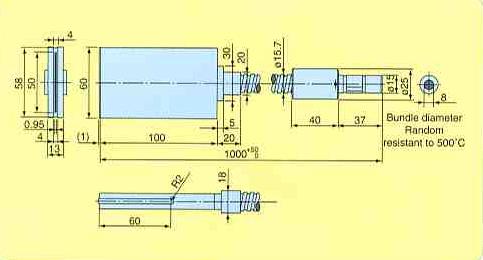

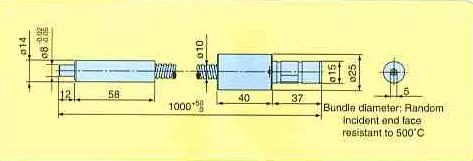

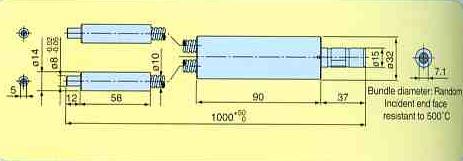

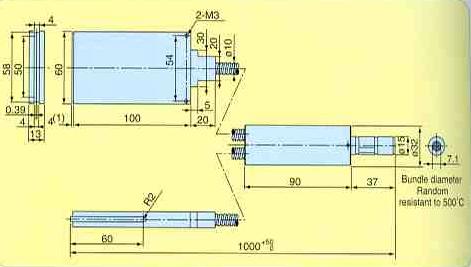

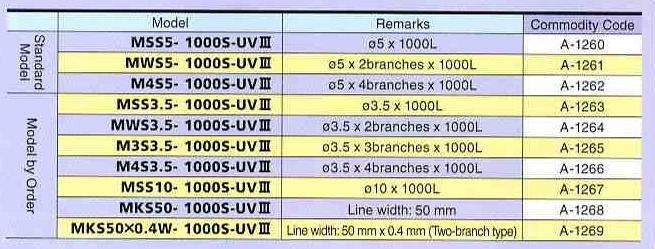

Moritex fabricates UV fiber light guides through the manufacture, bundling, and processin of raw quartz flbers. Straight type, multi-branch, and other variors kinds of configurations can be manufactured including light guides custom light to customer specifications. |
|
|
| |
|
| |
|
|
| |

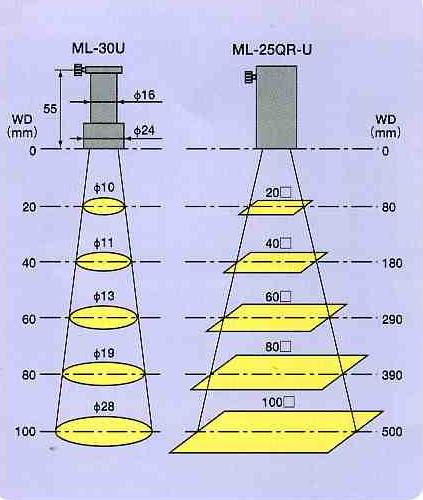

| Condensing lens unit |
 |
| |
| Model |
Remarks |
Commodity Code |
| ML-30U |
Standard UV condenser lens |
A-8590 |
| ML-25QR-L |
Quartz uniform square irradiation lens |
A-8591 |
|
| Filter & Adapter |
 |
| |
| Model |
Remarks |
Commodity Code |
| MUV-PF001 |
Heat-ray cutoff filter(Main transmissive wavelength:220 to 420 nm) |
A-8556 |

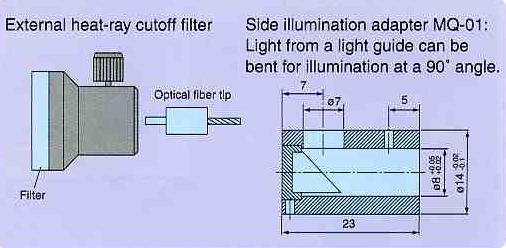

| FAF-10 |
External filter adapter |
A-8321 |
| MLF filter frame |
MLF filter frame |
A-8325 |
| MQ-01 |
Side-irradiation adapter |
A-8346 |
|
| |

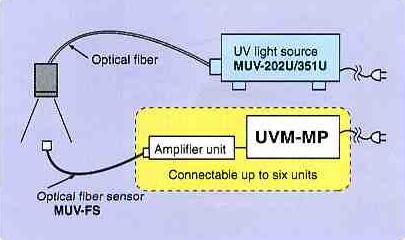

| UV Intensity monitor |
| A light guide unit with dedicated sensor is combined to contiuously monitor UV intensity and display it onthe panel. if the uv intensity becomes lower then the setting. the UV intensity lower limit alarm function is activated. |
 |
 |
|
| |
| Model |
Remarks |
Commodity Code |
| MUV-MP |
UV intensity monitor(Main unit) |
A-8563 |
| MUVM-365 |
Sensor box for UV intensity monitor(365nm) |
A-8570 |
| MUVM-254 |
Sensor box for UV intensity monitor(254nm) |
A-8596 |
| MUVM-FS |
Sensor fiber bead for UV intensity monitor |
A-8576 |
|
| |
| Other |
| Model |
Remarks |
Commodity Code |
| MTC-1 |
Condensing direct-irradiation unit for MUV-202U/351U |
A-8582 |
| MTC-2 |
Condensing direct-irradiation unit for MUV-202U/351U |
A-8583 |
| MTU-1 |
Uniform direct-irradiation unit for MUV-2o2U/351U |
A-8584 |
|
| |
| UV Light Source Data |

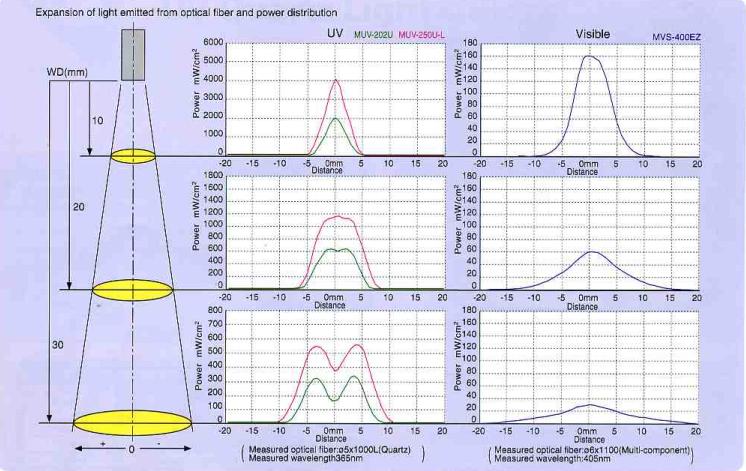

| Irradiation distance-intensity distribution |
 |
| |

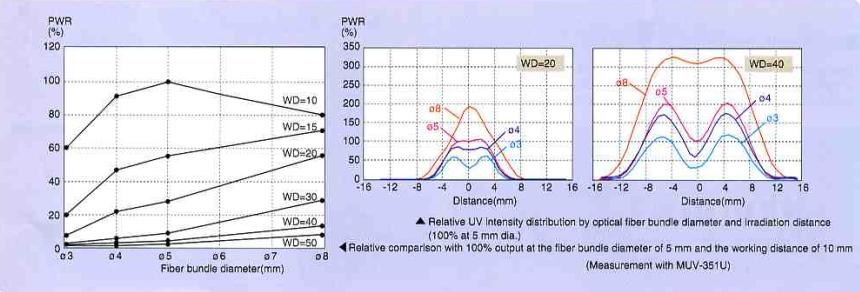

| Quartz fiber bundle diameter - UV intensity © Extending the optial fiber bundle diameter ubcreases tge UV intensity. |
 |
| |

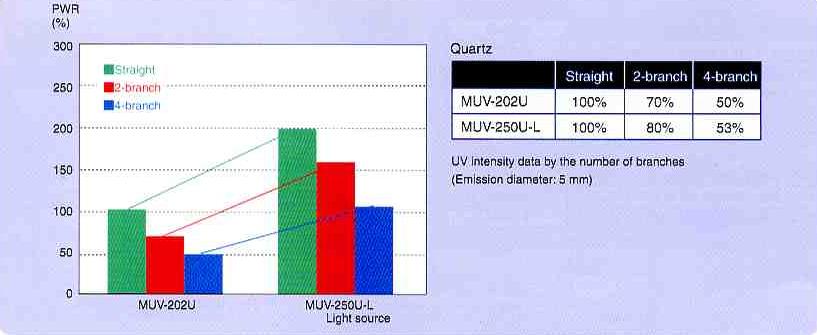

| Decrease of luminous intensity by multi-branching © Multi-branching an optical fiber cable reduces the luminous intensity(If the fiber bundle diameter is the same) |
 |
| |

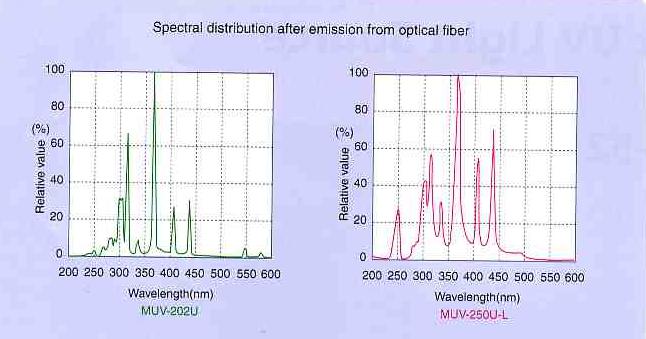

| Spot Area Irradiation Type |
 |
| |

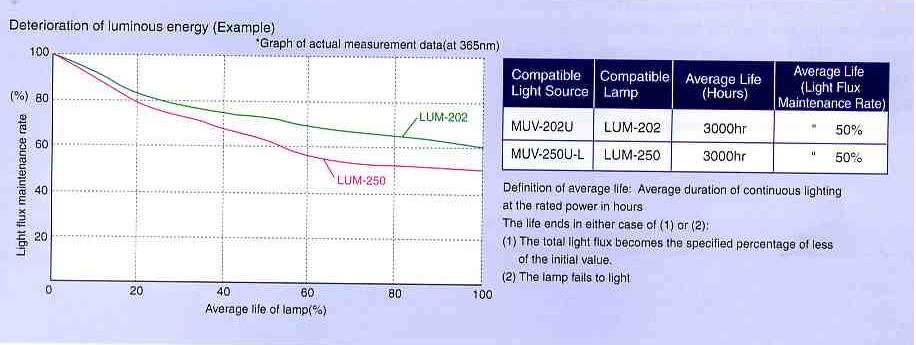

| Lamp service characteristic |
 |
|
