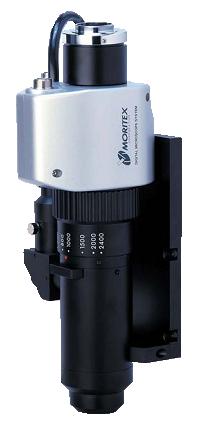

Digital CCD Microscope MS-804 Scopeman is the latest in Moritex's video microscope systems integrating advanced optics, fibre optics and CCD components.

The MS-804 micro-inspection station combines high performance with flexibility and ease of use with proprietary honeycomb CCD camera technology at its heart. Combined with multi-exposure, high intensity LED lighting and powerful software for fast and simple acquisition the system delivers amazingly sharp, high resolution images (1280 x 960 pixel) with unrivalled depth-of-field.

The new system has been designed to be easy to use and includes new features enabling it to undertake almost any micro-inspection application. By changing the cameras shutter speed and combining 'bright' and 'dark' images the MS-804 provides a greatly enlarged dynamic range enabling parts of a subject that are too dark or bright on other systems to be clearly seen and captured in a single image. A new digital zoom feature enables rapid magnification of a feature of interest improving work efficiency.

The MS-804 makes use of the latest advances in digital imaging analysis to provide a powerful, yet easy-to-use inspection system for checking dimensions including linear and angle measurements, area measurement and counting plus functions based on colour extraction.

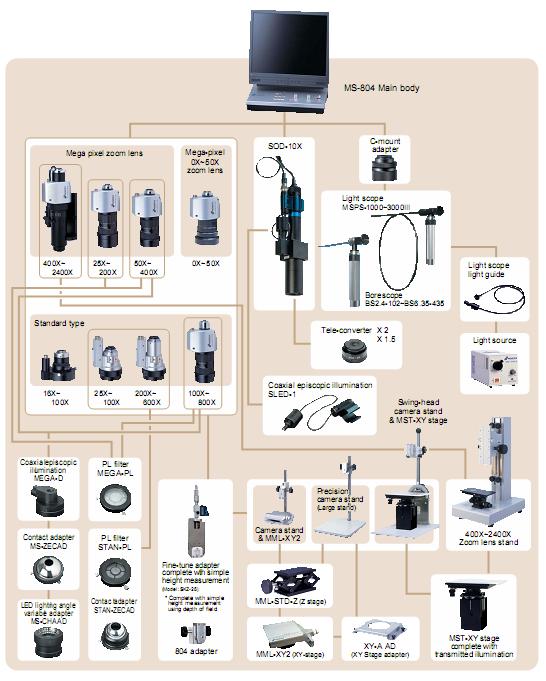

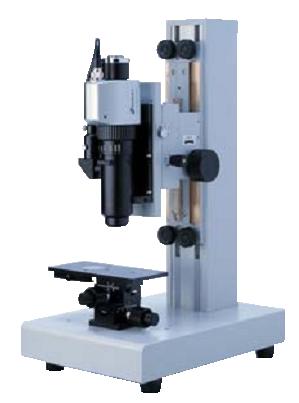

Available with a range of zoom lens (16x - 200x), X,Y and Z stages, camera mounts and a wide variety of imaging peripherals the MS804 Scopeman is able to adapt to undertake almost any real-time industrial micro-inspection or QA task.
