Every Unibrain Basler Firewire Digital Camera Kit includes :

The Basler cameras operate on any Desktop/Portable PC equipped with FireWire OHCI compliant adapters, either built-in, or added. For cost-effectiveness and maximum flexibility, Unibrain does not include a standard FireWire adaptor in the kit.

We recommend :

Basler 'scout' scA1600-14fm


1394b (Firewire-800) monochrome UXGA, max 14 fps

Main features:

  • C-Mount, 1600 x 1200 square pixels, external trigger
  • 1/1.8", Sony ICX-274AL progressive scan, monochrome CCD
  • Pixel size 4.4 um x 4.4 um
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 800 Mbps, partial scanning (AOI, Area Of Interest)
  • size 73.7 x 44 x 29 mm; weight 110 grams
  • 8-36 V DC, power 3 Watt at 12 V DC

Unibrain order Part Number: 4163

Basler 'scout' scA1600-14fc


1394b (Firewire-800) color and color RAW UXGA, max 14 fps

Main features:

  • C-Mount, 1600 x 1200 square pixels, external trigger
  • 1/1.8", Sony ICX-274AQ progressive scan, color CCD
  • Pixel size 4.4 um x 4.4 um
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 800 Mbps, partial scanning (AOI, Area Of Interest)
  • size 73.7 x 44 x 29 mm; weight 110 grams
  • 8-36 V DC, power 2.5 Watt at 12 V DC

Unibrain order Part Number: 4164

Basler 'scout' scA640-70fm


1394b (Firewire-800) monochrome VGA, max 71 fps

Main features:

  • C-Mount, 659 x 490 square pixels, external trigger
  • 1/3", Sony ICX-424AL progressive scan, monochrome CCD
  • Pixel size 7.4 um x 7.4 um
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 800 Mbps, partial scanning (AOI, Area Of Interest)
  • size 73.7 x 44 x 29 mm; weight 110 grams
  • 8-36 V DC, power 2.5 Watt at 12 V DC

Unibrain order Part Number: 4152

Basler 'scout' scA640-70fc


1394b (Firewire-800) color & color RAW VGA, max 71 fps

Main features:

  • C-Mount, 659 x 490 square pixels, external trigger
  • 1/3", Sony ICX-424AQ progressive scan, color CCD
  • Pixel size 7.4 um x 7.4 um
  • 8 or 12 bits/pixel, YUV 4:2:2:, synchronization by 1394 bus
  • 800 Mbps, partial scanning (AOI, Area Of Interest)
  • size 73.7 x 44 x 29 mm; weight 110 grams
  • 8-36 V DC, power 2.5 Watt at 12 V DC

Unibrain order Part Number: 4153

Basler 'scout' scA640-74fm


1394b (Firewire-800) monochrome VGA, max 74 fps

Main features:

  • C-Mount, 659 x 490 square pixels, external trigger
  • 1/2", Sony ICX-414AL progressive scan, monochrome CCD
  • Pixel size 9.9 um x 9.9 um
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 800 Mbps, partial scanning (AOI, Area Of Interest)
  • size 73.7 x 44 x 29 mm; weight 110 grams
  • 8-36 V DC, power 2.5 Watt at 12 V DC

Unibrain order Part Number: 4154

Basler 'scout' scA640-74fc


1394b (Firewire-800) color & color RAW VGA, max 74 fps

Main features:

  • C-Mount, 659 x 490 square pixels, external trigger
  • 1/2", Sony ICX-414AQ progressive scan, color CCD
  • Pixel size 9.9 um x 9.9 um
  • 8 or 12 bits/pixel, YUV 4:2:2:, synchronization by 1394 bus
  • 800 Mbps, partial scanning (AOI, Area Of Interest)
  • size 73.7 x 44 x 29 mm; weight 110 grams
  • 8-36 V DC, power 2.5 Watt at 12 V DC

Unibrain order Part Number: 4155

Basler A102f

1394a (Firewire-400) monochrome SXGA, External Trigger, max 15 fps

Main features:

  • C-Mount, 1392x1040 square pixels, external trigger
  • 2/3 inch, Sony ICX-285AL progressive scan, monochrome CCD
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • size 67.3x62x62 mm; weight 240 grams
  • 8-36 V DC, power 3.5 Watt (12 V DC)
Click here for BASLER™ A102f:
Lens Selection Data, Brochure, Technical Manual

Part Number: 4134

Basler A102fc
1394a (Firewire-400) color SXGA, External Trigger, max 15 fps

Main features:

  • C-Mount, 1388x1038 square pixels, external trigger
  • 2/3 inch, Sony ICX-285AQ progressive scan, color CCD
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • size 67.3x62x62 mm; weight 240 grams
  • 8-36 V DC, power 3.5 Watt (12 V DC)
Click here for BASLER™ A102fc:
Lens Selection Data, Brochure, Technical Manual

Part Number: 4131

Basler A601f

Monochrome VGA, External Trigger, max 60 fps

The kit includes one BASLER™ A601f:

  • C-Mount, 656x491 square pixels, external trigger
  • ½ inch, monochrome CMOS
  • 8 or 10 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • small size 67.3x44x29 mm; weight 100 grams
  • 8-36 V DC, low power 1.7 Watt (12 V DC)
Click here for BASLER™ A601f:

Part Number: 4126

Basler A601fc
Color VGA, External Trigger, max 60 fps

The kit includes one BASLER™ A601fc:

  • C-Mount, 656x490 square pixels, external trigger
  • ½ inch, primary colors Bayer CMOS
  • 8 or 10 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • small size 67.3x44x29 mm; weight 100 grams
  • 8-36 V DC, low power 1.7 Watt (12 V DC)
Click here for BASLER™ A601fc:

Part Number: 4132

Basler A602f
Monochrome VGA External Trigger, 100 fps (more with AOI)

The kit includes one BASLER™ A602f:

  • C-Mount, 656x491 square pixels, external trigger
  • ½ inch, monochrome CMOS
  • 8 or 10 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • small size 67.3x44x29 mm; weight 100 grams
  • 8-36 V DC, low power 1.7 Watt (12 V DC)
Click here for BASLER™ A602f:

Part Number: 4127

Basler A602fc

Color VGA, External Trigger, 100 fps (more with AOI)

The kit includes one BASLER™ A602fc:

  • C-Mount, 656x490 square pixels, external trigger
  • ½ inch, primary colors Bayer CMOS
  • 8 or 10 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • small size 67.3x44x29 mm; weight 100 grams
  • 8-36 V DC, low power 1.7 Watt (12 V DC)
Click here for BASLER™ A602fc:

Part Number: 4133

Basler A311fc

Short Description: The BASLER A311fc is a progressive scan color camera, designed for industrial use. It’s main characteristics are VGA resolution high frame rate (73 fps), combined with a robust, high precision housing.

Main Camera Features

  • C-Mount, 658x492 square pixels, external trigger
  • 1/2 inch, progressive scan CCD (Sony ICX-414AQ)
  • 8 or 12 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • Max frame rate at full resolution: 73 fps
  • small size 40.8x62x62 mm; weight 310 grams
  • 8-36 V DC, low power max 3.0 Watt (@12 V DC)
Click here for BASLER™ A311fc:
Lens Selection Data, Brochure or Technical Manual

Part Number: 4113


Basler A311f

Short Description: The BASLER A311f is a progressive scan monochrome camera, designed for industrial use. It’s main characteristics are VGA resolution high frame rate (73 fps), combined with a robust, high precision housing.



BASLER A311f VGA(646x490), 73 fps

Monochome camera with C-mount/CCD

Basler A622f

Short Description: The BASLER A622f is a progressive scan monochrome camera, designed for industrial use. It’s main characteristics are SXGA resolution high frame rate (25 fps), combined with a robust, high precision housing.

Main Camera Features

  • C-Mount, 1280x1024 square pixels, external trigger
  • 2/3 inch, primary colors Bayer CMOS
  • 8 or 10 bits/pixel, synchronization by 1394 bus
  • 400 Mbps, partial scanning (AOI, Area Of Interest)
  • Max frame rate at full resolution: 24 fps
  • small size 67.3x44x29 mm; weight 100 grams
  • 8-36 V DC, low power max 2.3 Watt (@12 V DC)
Click here for BASLER™ A622f:
Lens Selection Data, Brochure or Technical Manual

Part Number: 4135

Basler A631f

BASLER A631f(1392x1040), 17 fps, Monochome camera with C-mount/CCD

A631f Features

  • 1392x1040 pixels
  • 18.7 Frames Per Second
  • 1/2" format CCD (ICX267AL)



Basler A631fc



BASLER A631fc(1392x1040), 17 fps, Color & Raw color camera with C-mount/CCD

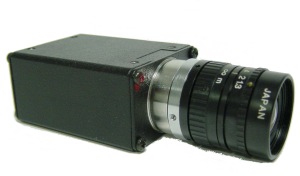

Basler A641f

 Short Description:
The BASLER A641fc is a progressive scan monochrome 2 Mpixel camera, designed for industrial use.

Main Camera Features:
• C-Mount, 1600 x 1200 square pixels, external trigger.
•1/1.18 inch, primary colors CCD (Sony ICX274AL)
• 8 or 12 bits/pixel, synchronization by 1394 bus.

• 400 Mbps, partial scanning (AOI, Area Of Interest).
• small size 67.3x44x29 mm; weight 100 grams.
• 8-36 VDC, low power 1.7 Watt (12 VDC).

Basler A641fc

 BASLER A641fc(1600x1200), 15 fps, Color & Raw color camera with C-mount/CCD

Click here for C-Mount Lens Manufacturers .pdf file.
Please consult Basler's recommendations for optics.
