BMS System from Hipower Batteries (With CAN BUS)

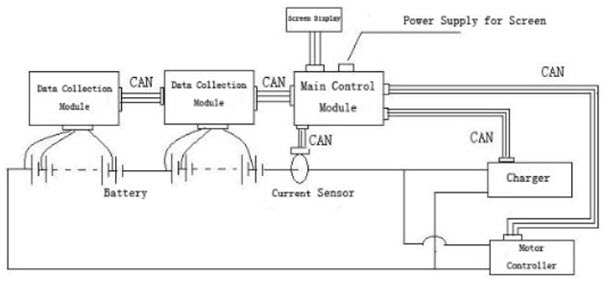

There are 5 parts for the whole BMS system with a CAN BUS.

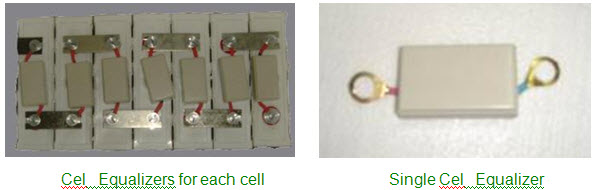

1.  Cel  Equalizer:
Every single cel  needs one Cell Equalizer. There are 3 types of equalizer, you can select
the right one based on your engineer’s suggestion).

A. 200mA
B. 400mA
C. 800mA

For example, if your battery pack is made up of 32 cel s, you choose 200mA type, then you

need 32pcs equalizer.
                                                 MasterBox / Central Control Module（CCM）/ Mainboard

Dimension (190*175*75mm); weight: 0.4kg

MasterBox, the center part of BMS, also can be cal ed as CCM, or Mainboard


Slave / auxiliary board / Data Col ection Module (DCM)
Dimension: 155*120*35mm; weight: 0.4kg
Slave, also can be cal ed as DCM, or auxiliary board.
Each Slave / DCM control 8 – 16 serial units.

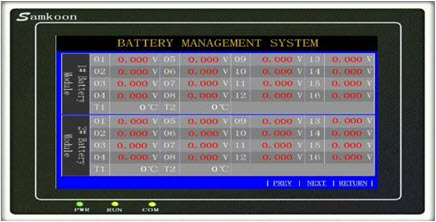

                              Touch Screen

We have 2 types of screen:
For 3.5 Inch touch screen    (Dimension 96*81*46 mm; 0.2kg)
For 5.7 Inch touch screen    (Dimension 172*140*60mm; 0.8kg)

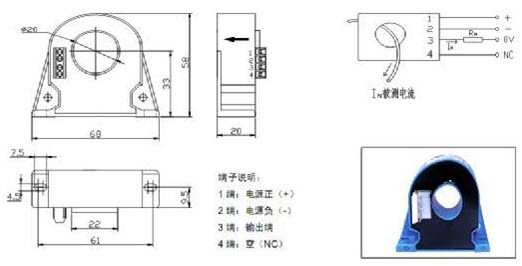

Current Sensor
                                                                 Working principle:

How to calculate the total parts need for a battery pack?
For example, if your battery pack is 96V 400AH battery pack, using 200AH cel . So total is
32 units, using 2 slaves, each slave control 16 serial units, 3.5 inch touch screen, 500A
current sensor.

Cel  Equalizers:                  64 pcs
MasterBox:                          1 pcs
Slaves:                                  2 pcs
Current Sensor (500A):      1 pcs
Touch Screen (3.5’ inch):    1 pcs
