Servo vision CO.,LTD

Get monstrous power from this motor!

Model : HPM5000B -- High Power BLDC Motor
Voltage : 24V/36V/48V/72V /120v
Rated Power : 2000W-7000W
Weight : 11Kgs
Features : Water resistent, Aluminium Casing, Stainless Steel Shaft, Self Cooling Fan

Drawing(pdf)
Motor Performance Curve(jpg)
Performance Data Sheet(jpg)

High power brushless motor controllers for electric car, motorcycle, and motorboat applications.
มอเตอร์ไม่มีแปรงถ่าน สำหรับรถไฟฟ้า,รถไฟฟ้า,มอเตไซต์ไฟฟ้า,เรือไฟฟ้า

Model : HPC100B -- High Power Motor Controller with Regenerative

(มีระบบชาร์ทไฟกลับเข้า แบตเตอรี่ เมื่อเบรค,ชลอ,ลงเนิน)
Voltage : 24V/36V/48V/72V/120v
Rated Power : 100A-300A
Weight : 3.3Kgs
Features : Water resistent

ชุดควบคุมมอเตอสำหรับรถไฟฟ้า , มอเตอไซด์ไฟฟ้า , เรือไฟฟ้า

High Capacity LiFePO4 Battery Pack with BMS and Charger

แบตเตอรี่ลิเธียมไอออนฟอสเฟต. มี Battery management System และ ระบบป้องกันกระแสเกิน

Product Model: LFP-3615
Weight: 5.1Kgs
Capacity: 36V/15AH
Dimensions: 150x110x210mm
Max Discharge Current: 45A
Max Continuous Discharge Current: 30A
Charging Cycles: >1000 times

Product Model: LFP-4820
Weight: 10.25Kgs
Capacity: 48V/20AH
Dimensions: 265*153*155mm
Max Discharge Current: 60A
Max Continuous Discharge Current: 40A
Charging Cycles: >1000 times

Encapsulated LiFePO4 Battery modules with BMS for Electric Cars

• Module capacity: 12V100AH
• Max continuous discharge current: 2.5C
• Standard charge current: 0.5C
• Maximum chargeable voltage: 14.6v
• Cut-off discharging voltage: 10.0v
• Charging cycle life: >1000 times
• Module dimensions: 331x171x221mm
• Module weight: 15.7kgs

High Power Brushless Motor Controllers -- Designed for high reliability!

Model: HPC300A/HPC500A -- Brushless Motor Controller
Voltage Range:24V/36V/48V/72V
Rated Power (Max):300A/500A
Weight:3.3Kgs/4.2kgs
Features: Fuse breaker, Regen Braking, Temperature sensoring, Nano-second high current sampling

User Guide(.pdf)         3D Drawing (.jpg)

BLDC Motors and Controllers

We are manufacturing general-purpose brushless dc motors with power range from 50W to 10KW, and the voltage range from 12V to 72V DC. It has been widely used for many applications, eg., auto industry, self-control system, battery powered bikes, scooters, electric cars etc. It has better performances than other traditional dc motors.

Product Features:

• Long working life (>10,000 hours)
• Low noise, high torque
• Excellent performance characteristics
• High efficiency (>80%)
• High reliability

• Low Price



Technical specifications:

• Rated voltage : 24/36/48/72 VDC
• Rated power : 50W-10KW
• Rated speed: 2000-10000 rpm
• Stepless speed control, dual-direction



Foot Throttle

Model: FSC-010 -- Foot Throttle
Output Voltage: 0-5V
Material: casted aluminium
Weight:0.9Kgs
Features: Water resistent

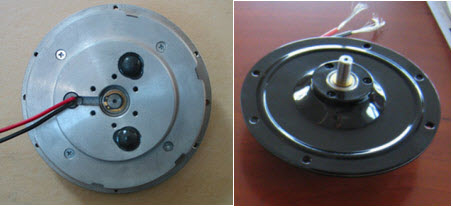

Printed Motor -- High Performance at Low Cost

Model: 40 Series BLDC Motors

Model : 40BLDC-001 VOLTAGE : 28.2 VDC SPEED : 5400 rpm POWER : 180 W Max.peak.torque : 0.5 N.m LENGHT : 69.9 mm MASS : 0.35 kg

Model : 40BLDC-002 VOLTAGE : 24 VDC SPEED : 4200 rpm POWER : 120 W Max.peak.torque : 0.35 N.m LENGHT : 69.9 mm MASS : 0.35 kg

Model: 57 Series BLDC

Model : 57BLDC-001 VOLTAGE : 24 VDC SPEED : 3500 rpm POWER : 55 W Max.peak.torque : 0.39 N.m LENGHT : 55 mm MASS : 0.5 kg

Model : 57BLDC-002 VOLTAGE : 24 VDC SPEED : 3500 rpm POWER : 105 W Max.peak.torque : 0.7 N.m LENGHT : 75 mm MASS : 0.75 kg

Model : 57BLDC-003 VOLTAGE : 24 VDC SPEED : 3500 rpm POWER : 145 W Max.peak.torque : 1 N.m LENGHT : 95 mm MASS : 1kg

Model: 90 Series BLDC

Model : 90BLDC-001 VOLTAGE : 48 VDC SPEED : 2000 rpm POWER : 200 W Max.peak.torque : 2 N.m LENGHT :103 mm MASS : 2 kg

Model : 90BLDC-002 VOLTAGE : 48 VDC SPEED : 2000 rpm POWER : 400 W Max.peak.torque : 4 N.m LENGHT :123 mm MASS : 2.8 kg

Model : 90BLDC-003 VOLTAGE : 96 VDC SPEED : 3000 rpm POWER : 750 W Max.peak.torque : 5 N.m LENGHT :143 mm MASS : 3.6 kg
