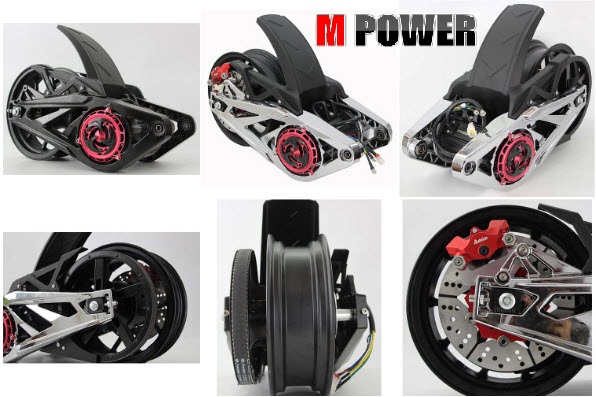

Hub Motor



Electric Motocycle Motors

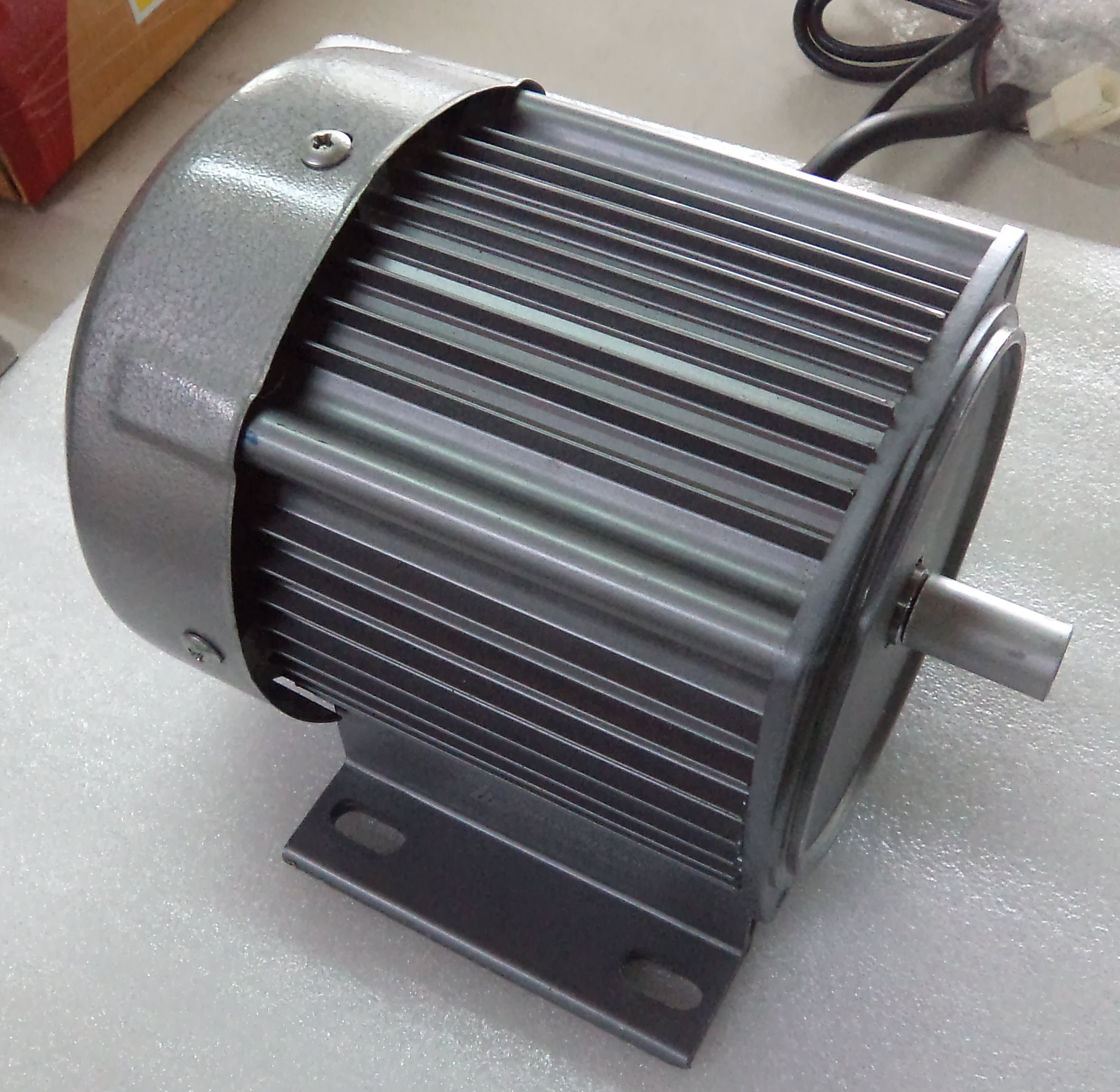

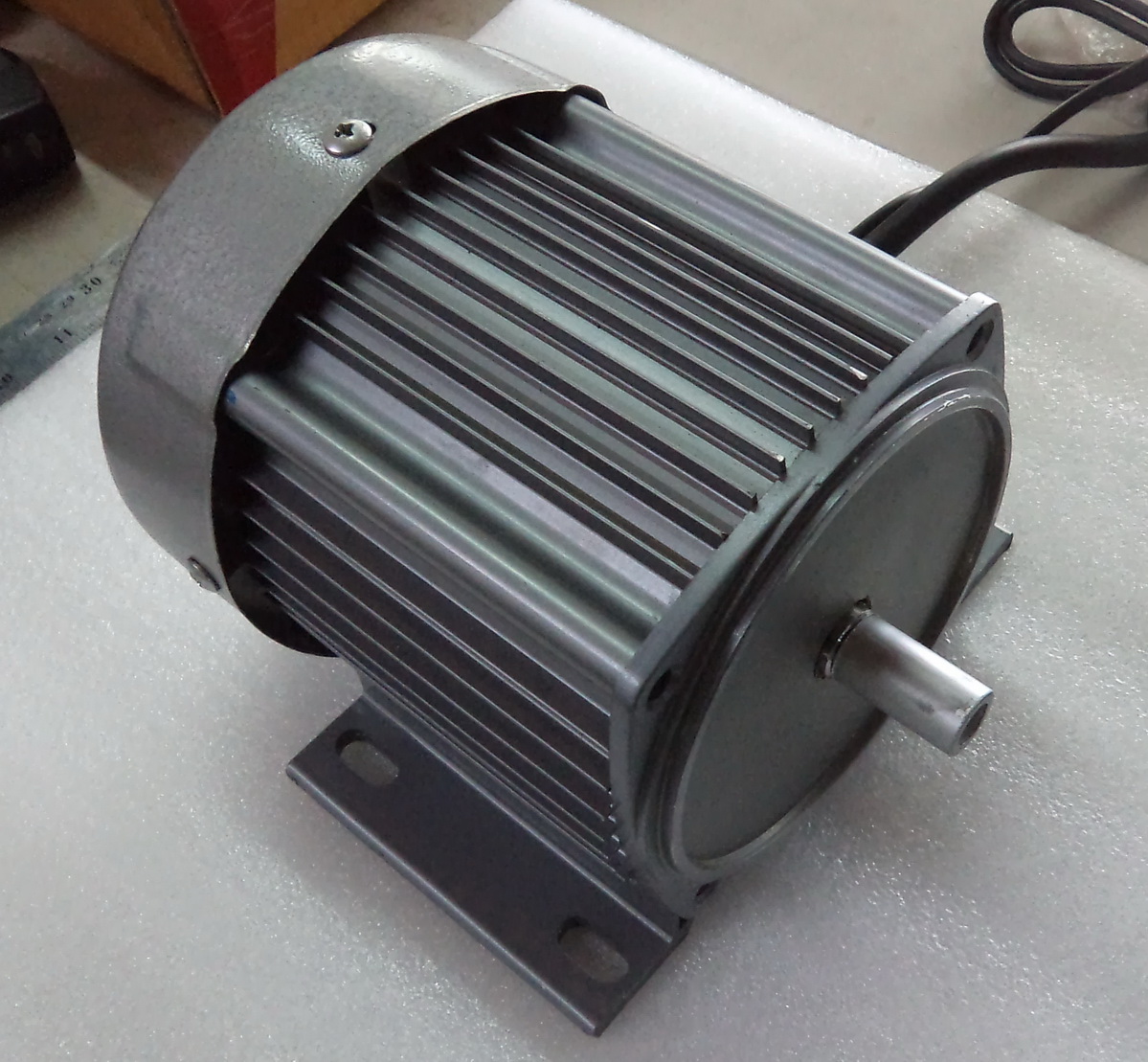

High Efficieny Brushless Motor : BRX Series.
BRX-750
48/60/72v. 3000 RPM. 3.1Nm. Efficieny 88%
BRX-1600
48/60/72v. 3000 RPM. 5.5Nm. Efficieny 88%
BRX-1800
48/60/72v. 3000 RPM. 6.6Nm. Efficieny 88%
BRX-2000
48/60/72v. 3000 RPM. 7.9Nm. Efficieny 88%

Get monstrous power from this motor!

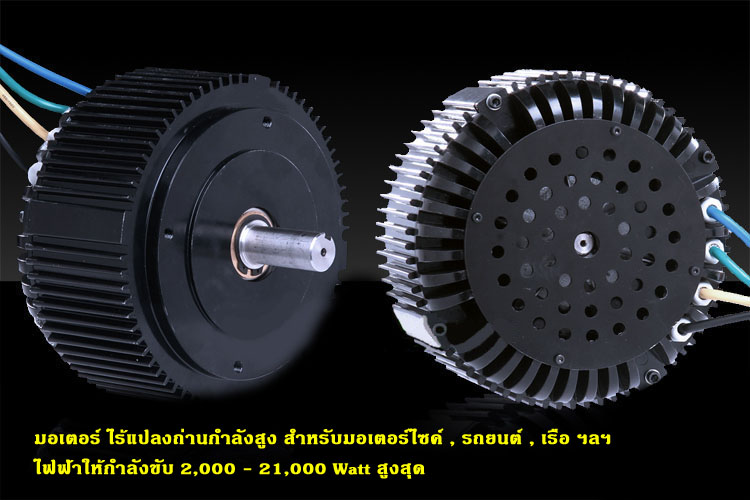

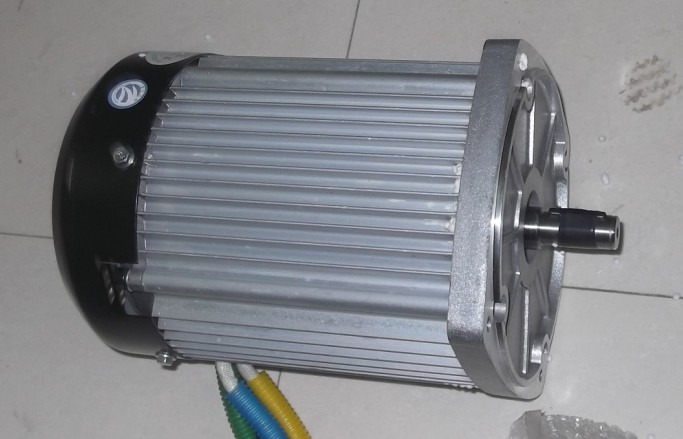

Model : HPM5000B -- High Power BLDC Motor
Voltage : 24V/36V/48V/72V
Rated Power : 2000W-7000W
Weight : 11Kgs
Features : Water resistent, Aluminium Casing, Stainless Steel Shaft, Self Cooling Fan

Drawing(pdf)

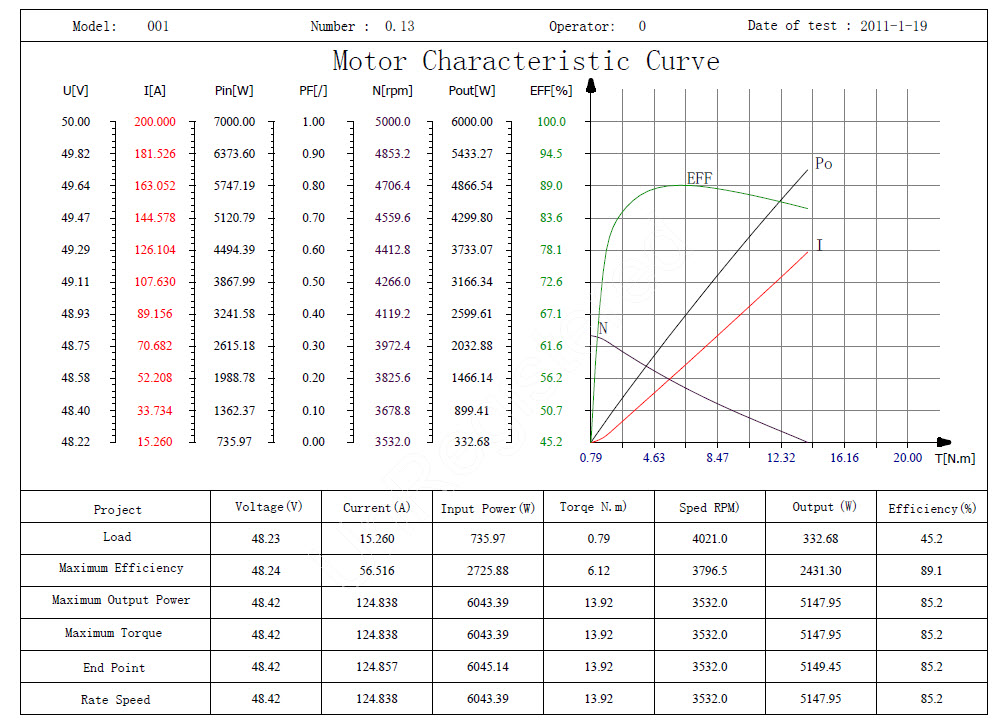

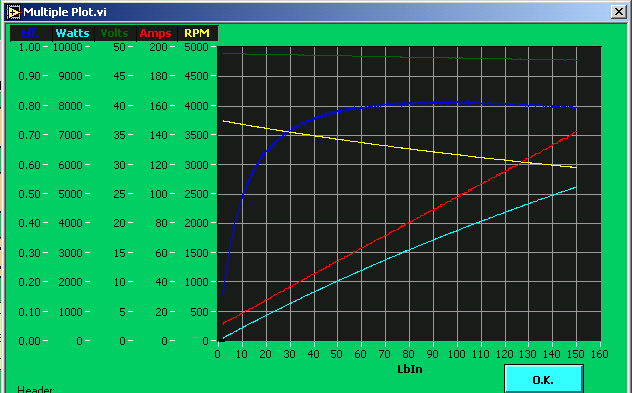

Motor Performance Curve(jpg)

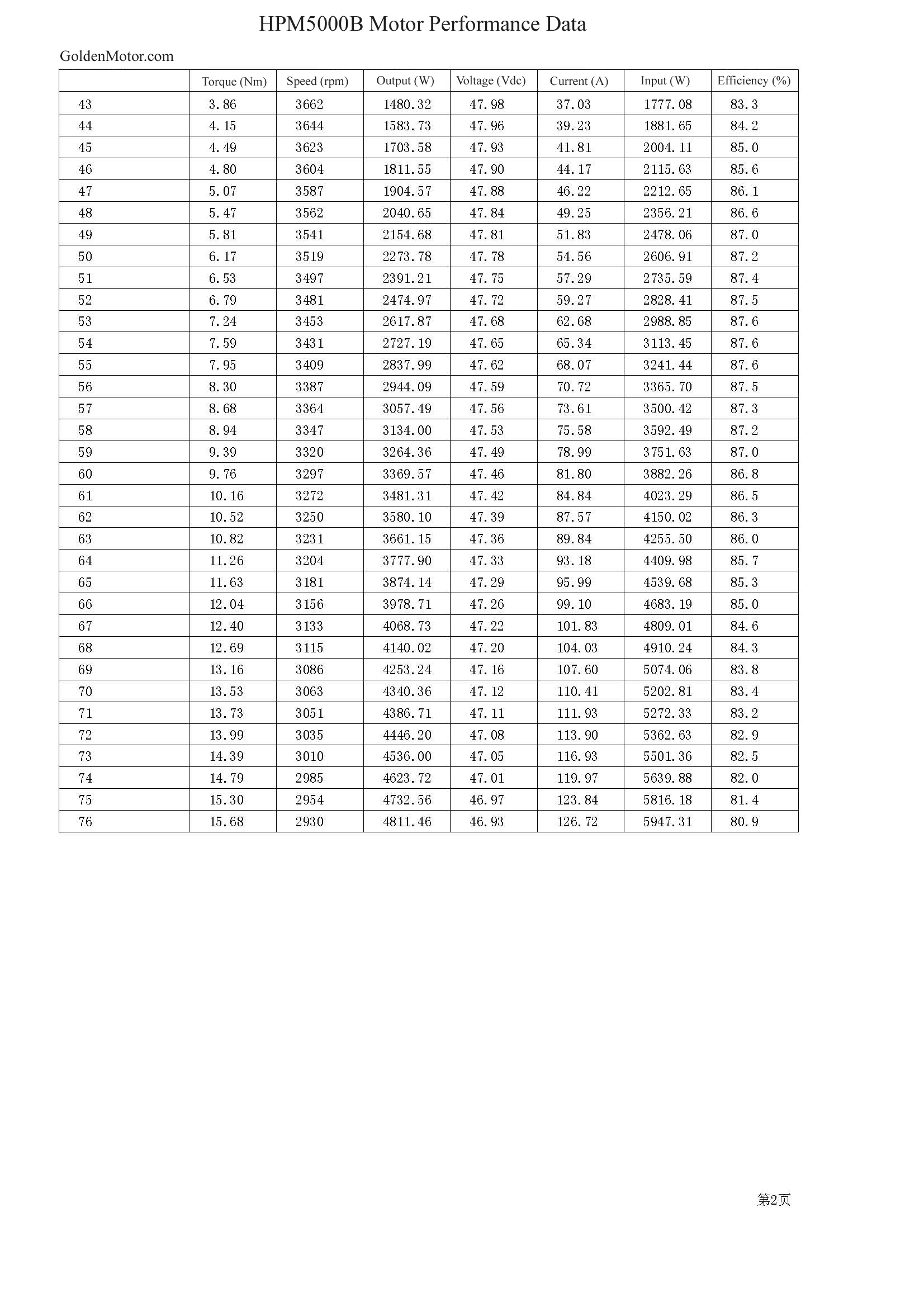

Performance Data Sheet(jpg)
New!! Motor Performance Curve(Jpg)

High power brushless motor controllers for electric car, motorcycle, and motorboat applications.
มอเตอร์ไม่มีแปรงถ่าน สำหรับรถไฟฟ้า,รถไฟฟ้า,มอเตไซต์ไฟฟ้า,เรือไฟฟ้า

Model : HPC100B -- High Power Motor Controller
Voltage : 24V/36V/48V/72V
Rated Power : 100A-300A
Weight : 3.3Kgs
Features : Water resistent

ชุดควบคุมมอเตอสำหรับรถไฟฟ้า , มอเตอไซด์ไฟฟ้า , เรือไฟฟ้า

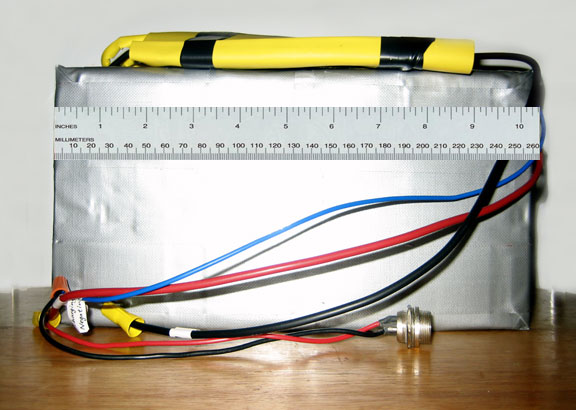

High Capacity LiFePO4 Battery Pack with BMS and Charger

แบตเตอรี่ลิเธียมไอออนฟอสเฟต. มี Battery management System และ ระบบป้องกันกระแสเกิน




Product Model: LFP-3615
Weight: 5.1Kgs
Capacity: 36V/15AH
Dimensions: 150x110x210mm
Max Discharge Current: 45A
Max Continuous Discharge Current: 30A
Charging Cycles: >1000 times

Product Model: LFP-4820
Weight: 10.25Kgs
Capacity: 48V/20AH
Dimensions: 265*153*155mm
Max Discharge Current: 60A
Max Continuous Discharge Current: 40A
Charging Cycles: >1000 times


Encapsulated LiFePO4 Battery modules with BMS for Electric Cars

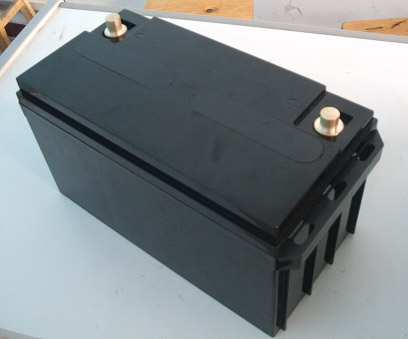

  • Module capacity: 12V100AH
  • Max continuous discharge current: 2.5C
  • Standard charge current: 0.5C
  • Maximum chargeable voltage: 14.6v
  • Cut-off discharging voltage: 10.0v
  • Charging cycle life: >1000 times
  • Module dimensions: 331x171x221mm
  • Module weight: 15.7kgs

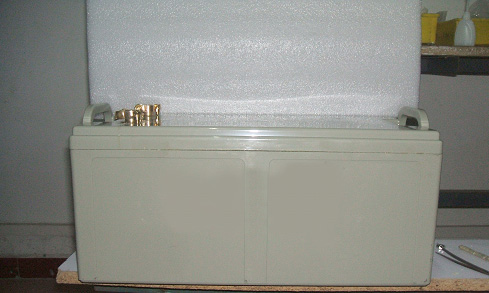

  • Module capacity: 12V200AH
  • Max continuous discharge current: 2.5C
  • Standard charge current: 0.5C
  • Maximum chargeable voltage: 14.6v
  • Cut-off discharging voltage: 10.0v
  • Charging cycle life: >1000 times
  • Module dimensions: 502x262x242mm
  • Module weight: 32.3kgs

    You can easily serialize the high capacity battery modules to form larger capacity battery packs,
    e.g use 4 modules of 12V200A to form 48V200A battery packs with self-managed BMS for each module

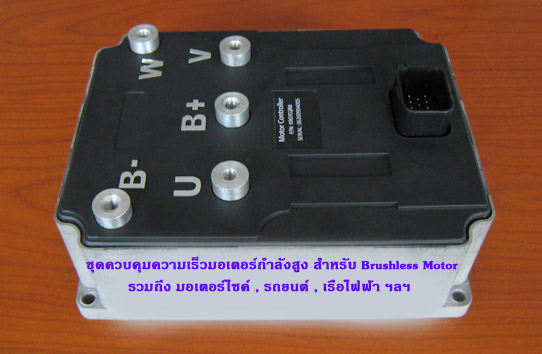

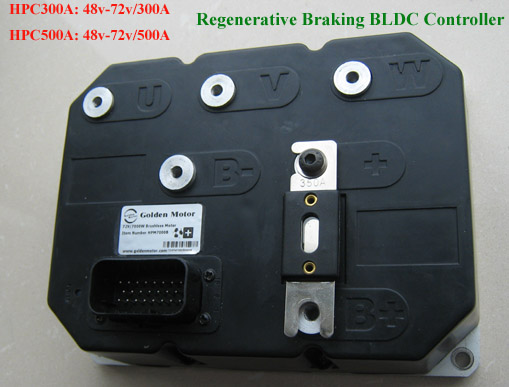

High Power Brushless Motor Controllers -- Designed for high reliability!





Model: HPC300A/HPC500A -- Brushless Motor Controller
Voltage Range:24V/36V/48V/72V
Rated Power (Max):300A/500A
Weight:3.3Kgs/4.2kgs
Features: Fuse breaker, Regen Braking, Temperature sensoring, Nano-second high current sampling

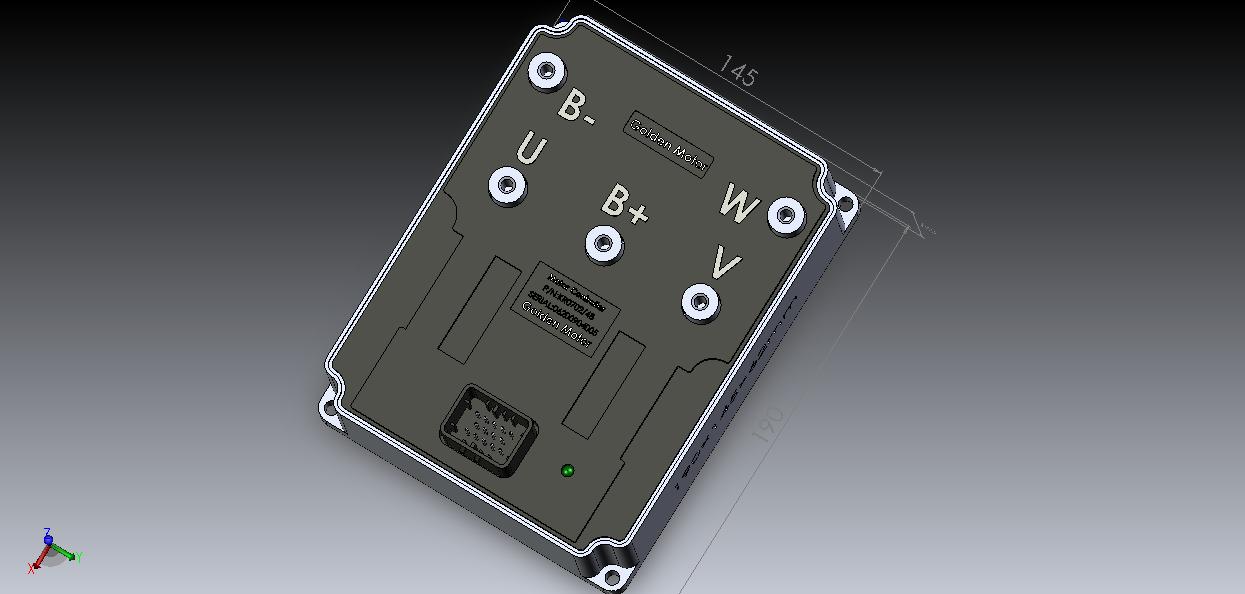

User Guide(.pdf)         3D Drawing (.jpg)
