Copy Stands

Copy Work. Starting’s so Easy.

The RS 2 and RS 3 copy stands are designed especially for lighter camera systems. The RS 3 stand and the matching RB 3 lighting unit represent the smallest members of the family, and are in addition a very inexpensive way to start reproducing! This compact equipment takes up little space, which can be an important factor for occasional users.

The RS 2 copy stand and RB 2 lighting unit are one stage heavier, even though the dimensions are similar to the RS 3/RB 3. A lot of the system components already described can be used without any problems on this equipment, and can be replaced very quickly.

5410 RS 2 Copy Stand

Non-reflecting dull black base board with grid surface markings. Column with cm and inch scales. Hand crank-operated height adjustment by friction drive on plastic bearings. Copy arm with ¼” connecting thread.
- Dimensions : Base board : approx. 400 x 500 x 25 mm (15.7 x 19.7 , 1 in.)
- Column height : 760 mm (30 in.)

5450 RB 2 Copy Lighting Unit

For all Kaiser copy stands (except for RSP) and for conversion of Kaiser enlargers to copy strands. With fur tiltable and adjustable reflectors on mounting arms which are in turn tiltable and adjustable n height. Lights can be switched on separately. For four lamps, 75W (max.).
- Clamp attachment for thicknesses up to 34 mm (1.3 in.).
- Cords : two, 1.7 m (5 ½ ft.)
Supplied without lamps.

5420 RA 2 Copy Arm

With ¼ “ connecting thread. For converting Kaiser enlargers VP 350, VCL 60/VCL 35 and VC 60/VC 35 to copy units.
- Dimensions (W x H x D) : 60 x 40 x 160 mm (2.4 x 1.6 x 6.3 in.)
4356 Opal Lamp

For copy lighting unit RB 2. 75W, 3000 Kelvin, E 27, 1100 Im.
Average service life approx. 100 hrs.

5310 RS 3 Copy Stand

Non-reflecting dull black base board with grid surface markings. Column with cm and inch scales. Hand crank-operated height adjustment by friction drive on plastic bearings. Camera mount with ¼ “ connecting thread.
- Base board : approx. 400 x 420 x 25 mm (15.7 x 16.5 x 1 inc)
- Column height : 760 mm (30 in.)

5350 RB 3 Copy Lighting Unit

For RS 3 copy stand and for conversion of VP 350 enlarger to a copy stand. With two adjustable and tiltable light fixtures for photofloods with E 27 screw-in thread, on mounting arms which are in turn adjustable in height. Lights can be switched on separately. For two lamps, 250W max. Cords : two, 2 m (6 ½ ft.) each, with cord switch
Supplied without lamps

Suitable lamps with E 27 screw thread :
- 3127 : Reflector lamp, 250W, 3400K
- 3128 : Reflector lamp, 150W, 3200K

5320 RA 3 Copy Adapter

With ¼” connecting thread. For converting the Kaiser VP 350 enlarger to a copy unit.
- Dimensions (W x H x D) : 60 x 95 x 85 mm (2.4 x 3.7 x 3.3 in.)

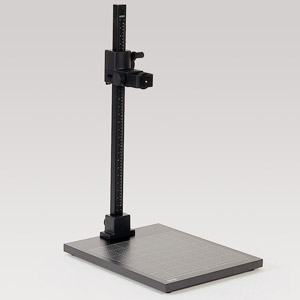

RS 2 XA Camera Stand

Non-reflective matt grey baseboard with printed fine grid and cm/inch scale. Matt-black anodised aluminum section tube column with cm/inch scale. Hand-cranked height adjustment by friction drive in plastic bearings. With horizontally adjustable camera arm to change the distance to the column, moves approx. 7 cm (2.7 in.) back and forth. 1/4” mounting thread.

Baseboard (WxHxD): approx. 400 x 25 x 500 mm (15.7 x 1 x 19.7 in.)
Column height: approx. 76 cm (30 in.)
Maximum load: 1.5 kg (3.3 lbs)

EXTRA COST FOR CAMERA SAND

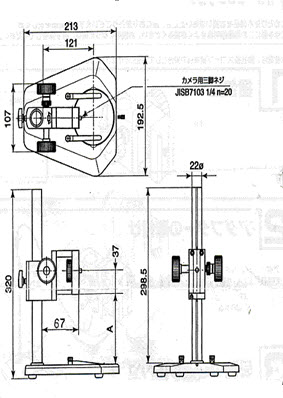

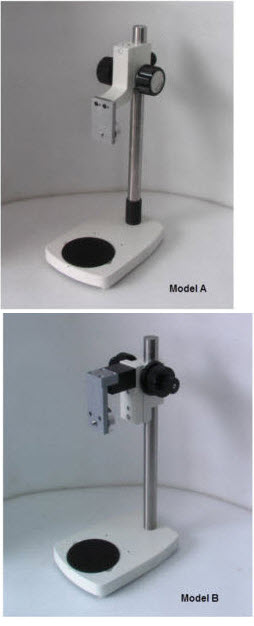

Camera stand A_with Focus adjust Knob and friction knob

Camera stand B_with Fine and Course Focus knob ,Friction Knob

Camera stand C_with Fine and Course Focus knob ,Friction Knob and Large Base Plate  with XY stage



CAMERA Stand OPTION

BIG CAMERA SCAND ขาตั้งกล้องขนาดใหญ่สำหรับงานกำลังขยายสูง ต้องการความแข็งแรง (For using with very high magnification)

ฐานเลื่อนชิ้นงาน แนวแกน X,Y (X,Y Stage)
