TRE
Series
30,60, 100, 200W


i


  • FEATURE

    - Realization of smaller size and lighter weight by adopting high performance rare earth magnet
    - Tremendous characteristics of servo motors by lessening inertia and by upping power rate and respose
    - Dust-proof and water-proof construction
    - Wide series ranging from 30 to 200 watts
    - Heat improvement by incorporating with aluminum die castings (Only 200 watt type is applicable.)
    - Smooth rotation realized by multi-slot design and expansion into a low speed range
    - Advancement of noise immunity and realization of unique shrunken motors
    - Various optional combinations with tachogenerators encoders of supporting brakes are possible
    - Realization of ultra-thin encoders with newly designed hybrid IC (Option)
    - You can use the motor with a combination of and exclusive-purpose control unit and a TDM driver.

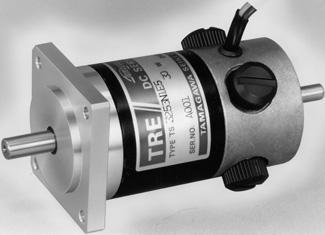

1

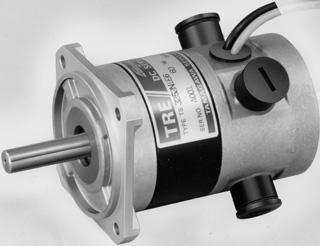

2

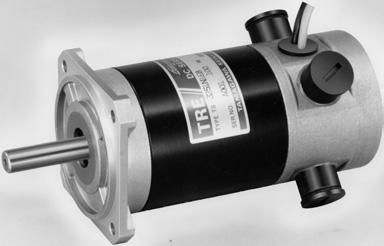

3

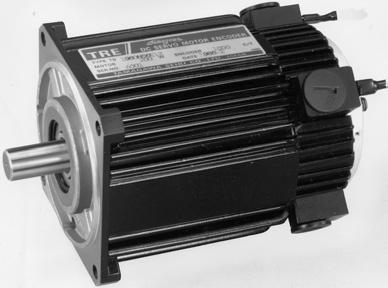

4

TRE Series
SECIFICATIONS


* SHAFT LOADING
Mortor Type
Allowable radial shaft loading F1N (kgf)
Allowable thrust shaft loading F2N (kgf)
Loading point
TS3253 (30W)
39.2 (4)
19.6 (2)
1
TS3252 (60W)
78.4 (8)
39.2 (4)
TS3251 (100W)
78.4 (8)
39.2 (4)
TS3250 (200W)
147 (15)
39.2 (4)

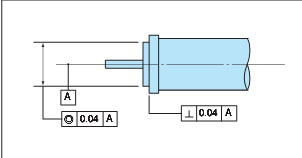

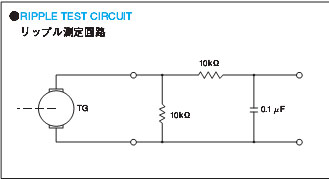

* MECHANICAL ACCURACY OF ATTACHING PART * TACHOGENERATOR
e
h

* ENCODER

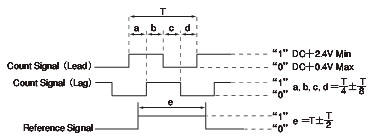

- OUTPUT WAVEFORMS
g f

- WIRING TABLE FOR CABTYPE CABLE


30W TYPE
Lead wire color&functions
(shielded wire)
Blue Count Signal (Lead)
Green Count Signal (Lag)
Yellow Reference Signal
Red DC + 5V
White Output GRD
Black Circuit GRD

* available for power supply of 12V DC.
60, 100, 200W TYPE
Lead wire color&functions
(shielded wire)
Blue Count Signal (Lead)
Black Output GRD
Green Count Signal (Lag)
Black Output GRD
Yellow Reference Signal
Black Output GRD
Red DC + 5V
Black Circuit GRD
