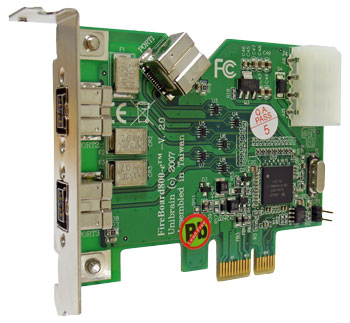

FireBoard800-e™ V.2 1394b OHCI PCI-Express adapter

FireBoard800-e™ V.2 is Unibrain's next generation of 1394b PCI Express x1 add-in interface card, based on LSI's latest 1394b PCI express combined OHCI PHY and Link controller.
This new revision of Firebord800-e incorporates also some new functionality features like 1394b screw lock cables support and improved external power connectivity, adding further stability and usability in industrial and machine vision environments.

OS Supported:

Windows 2000/XP/2003/Vista and 64 bit XP/2003/Vista
Mac OS X 10.4.x or later
Linux

Part numbers:

Fireboard800-e V.2 bulk: 1232
Fireboard800-e V.2 with embedded hardware FireAPI™/Fire-i API SDK™ license: 1719

Main features:

LSI FW643, Revision 6, 1394b to PCI Express OHCI integrated Link/PHY host controller.
OHCI Compliant/Compatible with any FireWire device or peripheral.
Serial data rates: 400Mbps and 800Mbps.
Three (3) fully backward compatible, (1394a-2000 Fully-Compliant) Bilingual 1394b, 9 pin ports at up to 800 Megabits per second (Mbit/sec) - Two external and one internal.
Internal 4 pin power connector (big IDE).
Low profile compatible (low profile bracket included).
Industrial 1394b screw lock cables support.
RoHS and WEEE compliant.
Due to its 8 isochronous transmit/receive contexts the Fireboard800-e V2™ host adapter has the unique capability to simultaneously control and display up to 8 FireWire digital cameras.
Operating Temperature: 0~65' C, Storage Temperature: -20 ~ 100' C.

Humidity Operating : 0 ~ 80% RH, Non-condensing.
