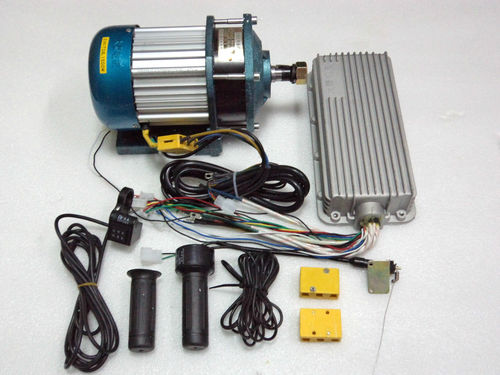

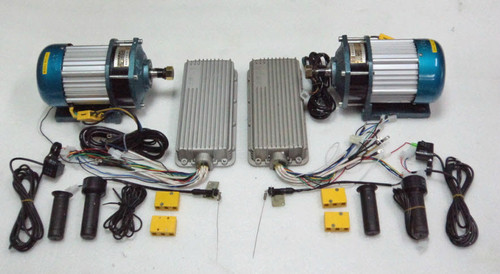

This electric trike conversion kit includes:
You will get all the items as you see in the pictures for this tricycle conversion kit.
1.brushless dc Permanent magnet gear motor
2.brushless CONTROLLER
3.two direction swith
4.brake power switches
5.two connection boxes
6.throttle
the diameter of the motor:140mm length:310mm
the motor is low noise,little vibration,reliable operation,easy maintenance.

Brushless dc Permanent magnet gear motor details .

Rated			Before	After	Rated	Maximum	Eff	Climbing	Maximum	General
Voltage	Current	Power	Gear Reduction	Gear Reduction	Torque	Load		Degree	Load Speed	Speed
48V	25A	800W	3400-3640rpm	600-700rpm	40N.m	1000KG	83%	20-30	25km/h	32km/h
48V	28A	1000W	3400-3640rpm	600-700rpm	45N.m	1200KG	83%	20-30
60V	25A	800W	3400-3640rpm	600-700rpm	40N.m	1100KG	83%	20-30
60V	28A	1000W	3400-3640rpm	600-700rpm	45N.m	1300KG	83%	20-30
60V	30A	1200W	3400-3640rpm	600-700rpm	50N.m	1400KG	83%	20-30
60V	32A	1500W	3400-3640rpm	600-700rpm	60N.m	1500KG	83%	20-30
72V	28A	1000W	3400-3640rpm	600-700rpm	50N.m	1400KG	83%	20-30
72V	30A	1200W	3400-3640rpm	600-700rpm	60N.m	1500KG	83%	20-30
72V	32A	1500W	3400-3640rpm	600-700rpm	70N.m	1600KG	83%	20-30

Brushless CONTROLLER DETAILS(Dual mode,if motor's hall is broken,the motor also can work well

Rated Voltage	Rated Power	Maximum limit	under voltage	brake handle voltage	brake blackout
48V	800W	75A	41.5±0.5V	1.2-4.3V	low level
48V	1000W	80A	41.5±0.5V	1.2-4.3V
60V	800W	75A	50.5±0.5V	1.2-4.3V
60V	1000W	80A	50.5±0.5V	1.2-4.3V
60V	1200W	85A	50.5±0.5V	1.2-4.3V
60V	1500W	90A	50.5±0.5V	1.2-4.3V
72V	1000W	75A	63±0.5V	1.2-4.3V
72V	1200W	80A	63±0.5V	1.2-4.3V
72V	1500W	85A	63±0.5V	1.2-4.3V
