: : : : : : : : : :Halogen Light Source : : : : : : : : : :
  150W Series
       MHAB-150W


     150W Halogen light source of dual wattage, designed for 150W but also availale for 100W if a 100W lamp is attached. The irradiation is the most powerful among the Halogen light sourceseries. This highperformance model can be provided with an external linear dimmer function(option)
  • Illuminance up to 80,000 Ix (2.6 times that of 100W light source)
  • 100W/150W dual lamp wattage
  • External linear dimmer(option)
  • Environment-friendly model
  • External analog control standard, other control options available" and place it above "External linear dimmer(option)
Special power source specifications (AC100V type)
Order Code
MHAB-150W-C-100V MHAB-150W-D-100V MHAB-150W-LI-100V
Remarks
Long life type
With external digital dimmer
Linear dimmer type
Commodity code A-0521 A-0522 A-0523
Optional Parts
Cable with external remote connector MC=EXC-02
External remote connector D-SUB155
Replacement lamp LM-100, LM-150, LM-150C

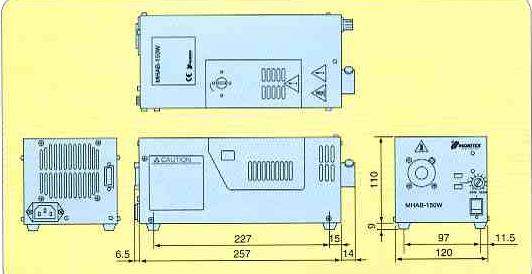

MHAB-150W

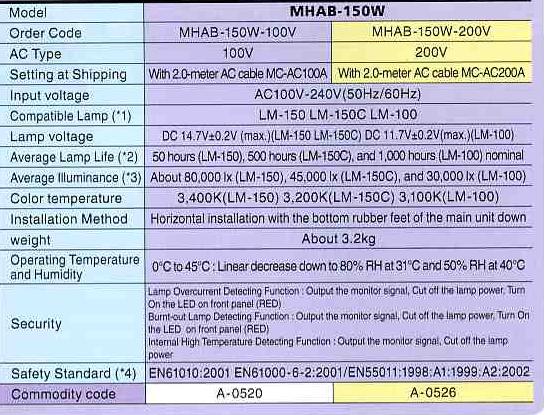

  • *1 Only compatible lamps can be used.
  • *2 Many lamps are lit and the time measurements until their filaments blow are normally distributed. The average time from the peak time until the survival ratio of 50 % is called the average life.
  • *3 The average illuminance is at 50 mm from the fibr end at the maximum volume when Moritex standard light gukde(MSG4-2200S) is attached.
  • *4 This is only when the voltage is 200V
  • NOTE : Plastic fibers may not be available.

INFRARED 100W HALOGEN LIGHT SOURCE :MHAB-100W-IR
      Designed based on MOritex's standard light source(MHAA-100W), this IR light source used for invisible image observation epitomizes MOritex's logn accumulated experience in the Machine Vision industry. This lightsource is not only effective for Si, but also for compound semiconductorw like GaAs and ASW filter(LiNbO3,LiTaO3) inspection.
  • Irradiation of Silicon transmission wavelength(1127 nm or more)(patent pending)
  • Radiation mechanism by unique technology

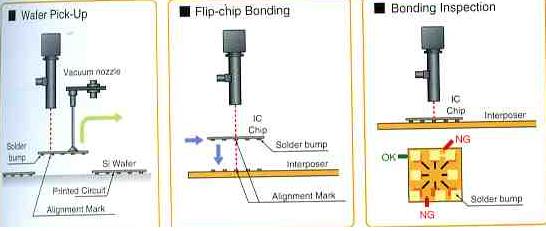

Example application

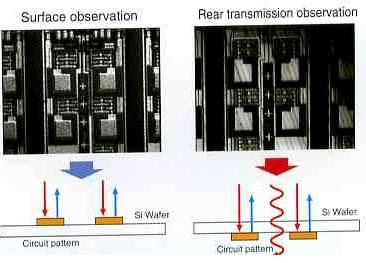

Infrared coaxial transmission observfation

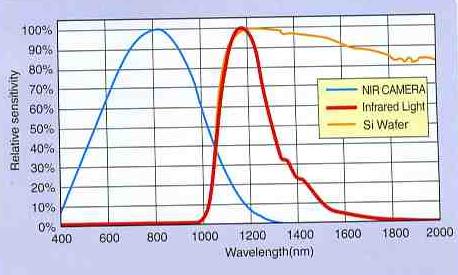

Spectral Characteristics

Accessories for IR systems
Spare Lamp Lens Series for IR System
Model LM-100_IR
Specification IR reflection coationg For 100W
Commodity code A-0637
Model MML4-80D-IR MML6-80D-IR MML8-80D-IR
Specification Lens for IR Magnification 4*6*8
Commodity code A-0235 A-236 A-237

Heat resistant light guide Camera for infrared light
Model MSG4-1100S-HR
Specification Heat resistant specification Light guide
Commodity code A-0637
Model MC-781P-0030
Specification 2/3" 780H*480pix NIR sensitivity
Commodity code A-0346
