: : : : : : : : : : UV Light Source : : : : : : : : : :

Combination of a lamp fiber and light source of different types and outputs allows you to light ares that ware not effectivey lighted with conventional light source. Maintanance is easily becaurse the lamp lasts for 1,500 to 3,000hours.
Fluorescent material emission inspection ; wafer, substrate,metal parts damage inspection


High-power, compact, low cost UV light sources for FA
MUV-202U
MUV-250U-L
MUV-351U

                                  _____
Visible light cutting filter




Area Irradiation Type
Direct UV Light Source Desktip UV Light Source

Inline UV light Source

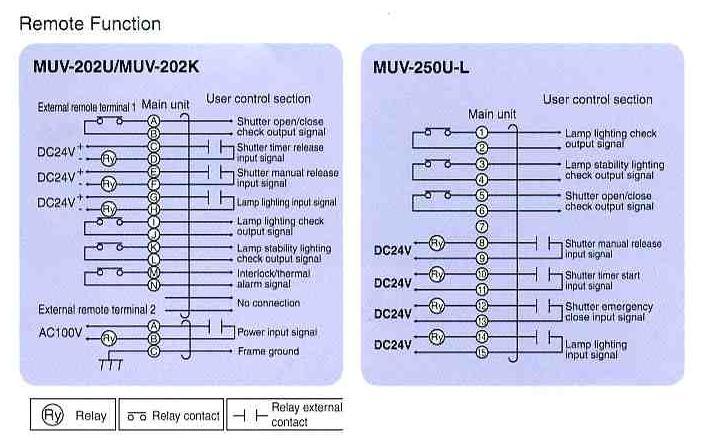

Remote Function


Spot Area Irradiation Type
Series
Mercry Xenon 200W
Ultrahigh Pressure Mercury 250 W
Model
MUV-202U
MUV-250U-L
Outside Dimensions(Inc. Projection)W*H*D(mm)
210 * 166 *345
220 * 288 * 300
Features
Low cost and long life
High power
Lamp Model Average Lamp Life (hr)
LUM-202
LUM-250
Ultraviolet Intensity(365 nm)
4000
3000
Optical Axis Adjustment
3000mW/cm2
4000mW/cm2
Dimmer System
None
Shutter Drive System(Front Operation)
Mechanical dimmer
Power Consumption
Manual/digital timer
Weight
320W
500W
Fiber
7Kg
9Kg
(External Input Functions)
Shutter Timer Start
°
°
Shutter Manual ON/OFF
°
°
Power ON/OFF
°
°
Lamp ON/OFF
°
°
(Out Functions)
Lamp Lighting
°
°
Lamp Stability
°
°
Shutter Open/Close
°
°
Interlock/Thermal Error
°
°
Commodity Code
A-1201
A-1203
(Options)
Replacement Lamp
LIM-202
LUM-250
Commodity Code
A-8531
A-8532
Heat-ray Cutoff Filter
MUV-PF001
MUV-PF001 * 1
MUV-FU-250 * 2
Commodity Code
A-8556
A-8556
A-8557
UV Intensity MOnitor(Main Unit)
MUVM-MP
Commodity Code
A-8563
Amplifier for UV Intensity Monitor
MUVM-254
MUVM-365
Commodity Code
A-8569
A-8570
Fiber Sensor for UV Intensity Monitor
MUVM-FS
Commodity Code
A-8576
Condensign Direct Irradiation Unit
MTC-1
Commodity Code
A-8582
High-condensing Direct Irradiation Unit
MTC-2
-
Commodity Code
A-8583
-
Uniform Direct Irradiation Unit
MTU-1
-
Commodity Code
A-8584
-

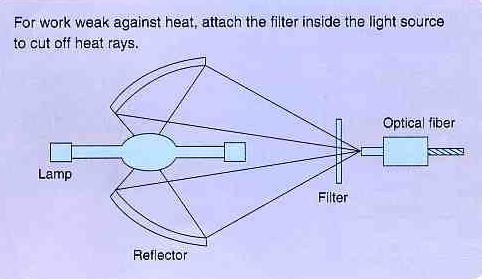

Internal heat cutoff filter for ligt source MUV-PF001
Model
MUV-PF001
Remarks
Heat-ray cutoff filter (Main transmissive wavelength: 220 to 420 nm)
Commodity Code
A-8556
