  RS-485 Light Controller
     MCGA-204D

  • Single unit for controlling one or two channels

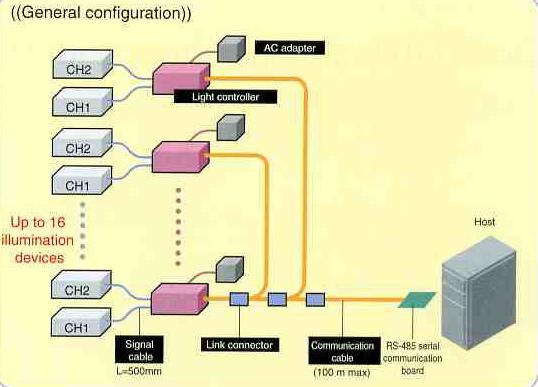

  • Batch control of up to 16 channels by unit connection
  • Standard light sources and power supplies connectable(Some old models not supported)
Communication Specifications

Communication Interface
RS-485
Communication System
Asynchronous, simplex
Transmission Speed
115.2(19.2-115.2) Kbps


Capable of connecting Moritex standard light sources and power supplies
Halogen Light Source
LED Power Supply
MHF-V501 Series
MLEK-A/B Series (1 and 2 channels)
MHAA-100W Series
MLEP-A(Conversion plug essential for 3 channels)
MHAB-150W Series
MLED-G02512LRD
MHAB-100W IR
MLED-E00811L(Supportion illumination ON/OFF only)
Model
Item
 Commodity code
MCGA-204D RS-485 oight controller
A-1600
MCBB-24W-100V AC adapter(100V)
A-1601
MC-EXC-08 Signal cable L=500 mm
A-9000
MU=EXC-01 Communication cable L=10m
A-9004
MU-CON-01 Link connector (2 pcs.)
A-1602

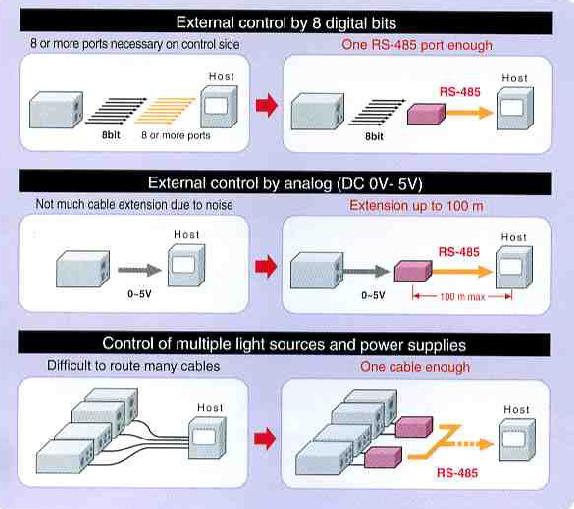

Advantages of RS-485

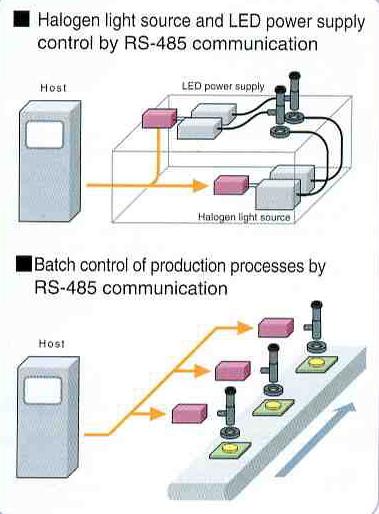

Example of application
