: : : : : : : : : :Halogen Light Source : : : : : : : : : :
|
|
|
 |
This lamp house is small and lightweight since it does not have a power source. This unit is ideal when there is not enough room to install a lamp housing and power supply together. The compact lamp house can be installed with the voltage driving the lamp and cooling fau remotely supplied.
|
| |
|
|
| Optional Parts |
| Replacement lamp |
LM-50 |
LM-100 |
| Commodity code |
A-8203 |
A-8213 |
|
|
| |
| Lamp House : 50W/100W |
 |
 |
-

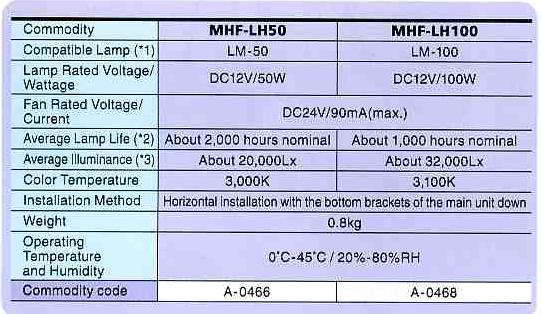

*1 Only compatible lamps can be used.
-
*2 Many lamps are lit and the time measurements until their filaments blow are normally distrbuted. The average time from the peak time until the survival ratio of 50% is called the average life.
-
*3 The average illuminance is at 50 mm from the fiber end at the maximum volume when Moritex standard light guide(MSG4-2200S) is attached
|
