The 100W Halogen light sourec is the most common source in its series because it exhibits excellent performance in all aspects.
Running on worldwide power supplies
Conforming to the safey standards of CE marking
Envoronment-friendly model
External analog control standard, other control options available
Special power source specifications (AC100V type)
Order Code
MHAA-100W-SO-100V
MHAA-100W-SC-100V
MHAA-100W-D-100V
* MHAA-100W-D-SO-100V
* MHAA-100W-D-SC-100V
Remarks
Built-in shutter
(Normally open)
Built-in shutter
(Normally closed))
With external 8-bit digital dimmer
With extermal digital dimmer adn built-in shutter
(Normally open)
With extermal digital dimmer and built-in shutter
(Normally closed)
Commodity code
A-0512
A-0511
A-0513
A-0515
A-0514
Optional Parts
Cable with external remote connector
MC=EXC-02
External remote connector
D-SUB155
Replacement lamp
LM-50
MHAA-100W

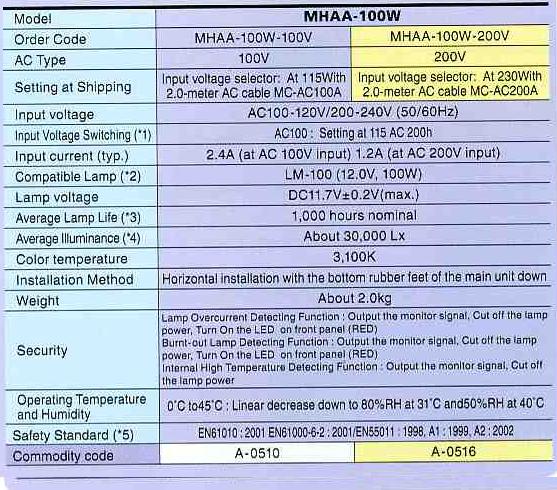

*1 When the switch is set at 115V, do not apply AC 200V. Doing somay damage the power supply. When the input voltage selector is set at 230V, the device does not run on AC 100V.
*2 Only compatible lamps can be use.
*3 Many lamps are lit and the time measurements until their filaments blow are normally distributed. The average time from the peak time until the survival ratio of 50% is called the average life.
*4 The average illuminance is at 50 mm from the fiber end at the maximum volume when Moritex standard light guide(MSG4-2200S) is attached.
