LifePo4 Advantage , Life Advantage & Performance Comparision with others.

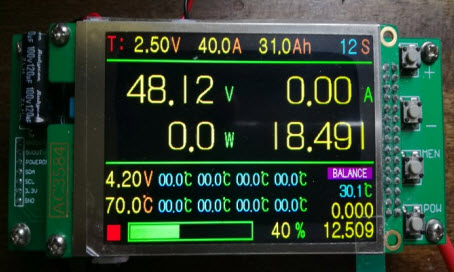

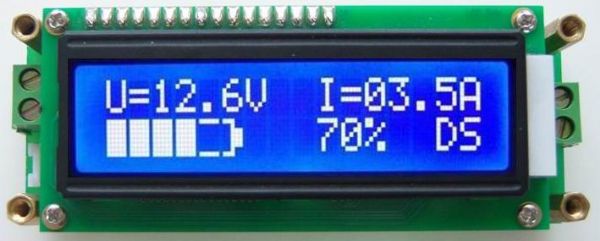

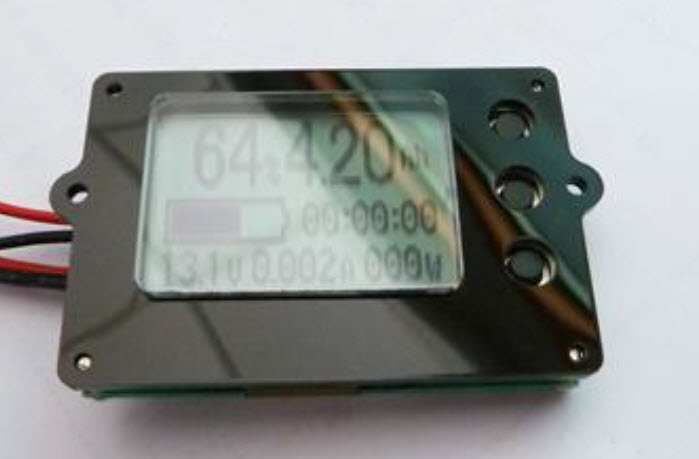

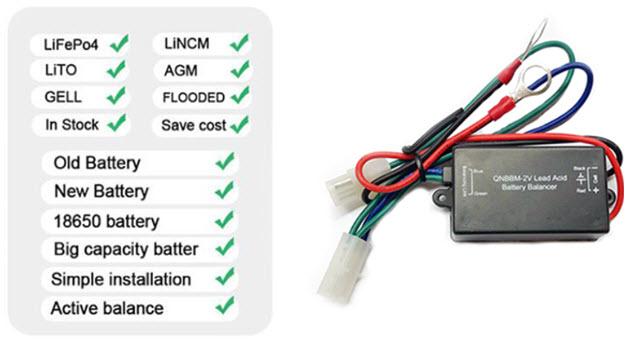

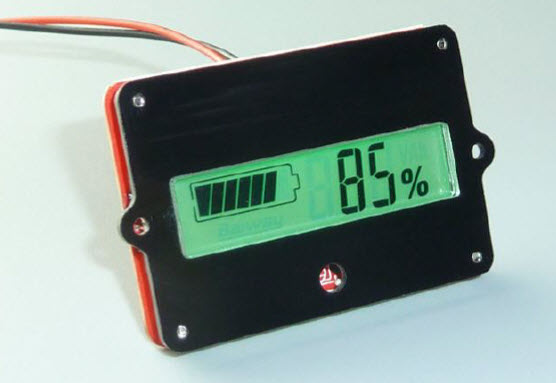

Battery fuel gauge battery monitor
Battery fuel gauge battery monitor

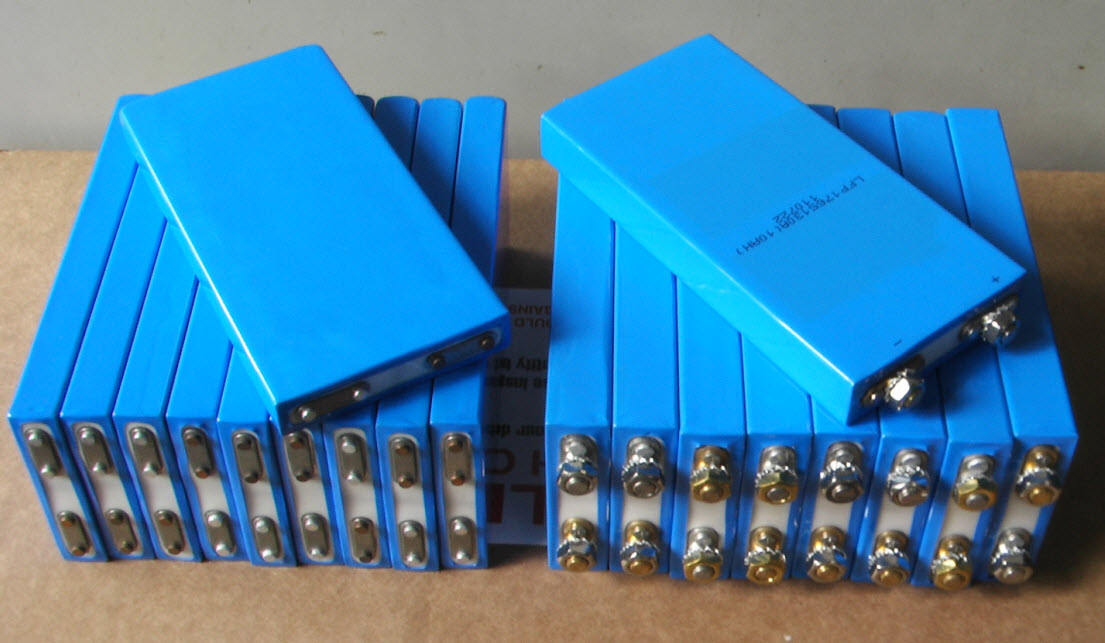

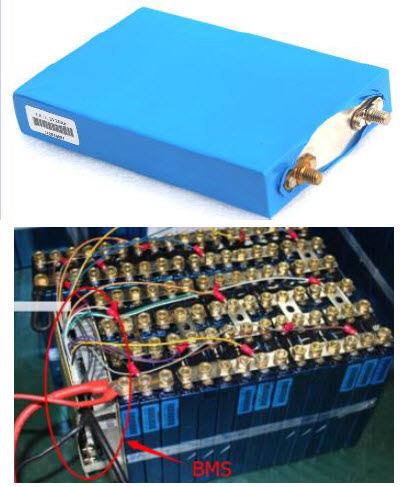

LithiumFerrumPhosphate LiFePo4 cell aluminium casing6Ah,8A,10Ah,12Ah (Square FLat) Very Best in Heat-Dissippation

Clik to See wiring Diagram 24V pack & BMS
Clik to See wiring Diagram 36V pack & BMS
Clik to See wiring Diagram 48V pack & BMS
Clik to See wiring Diagram 72V pack & BMS

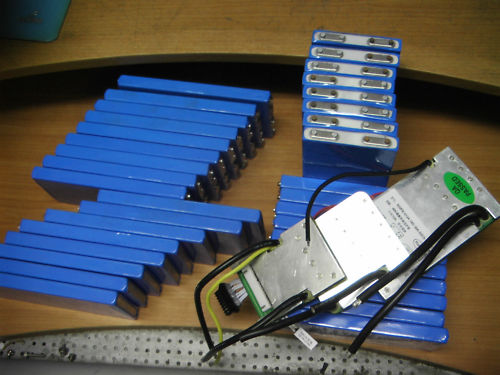

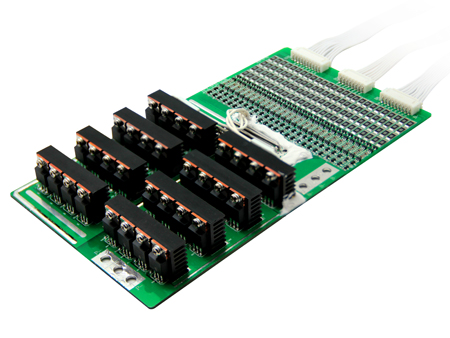

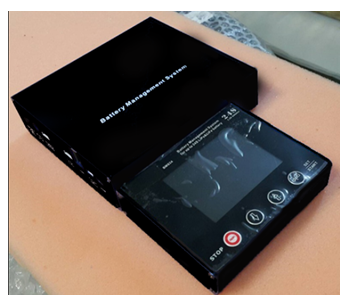

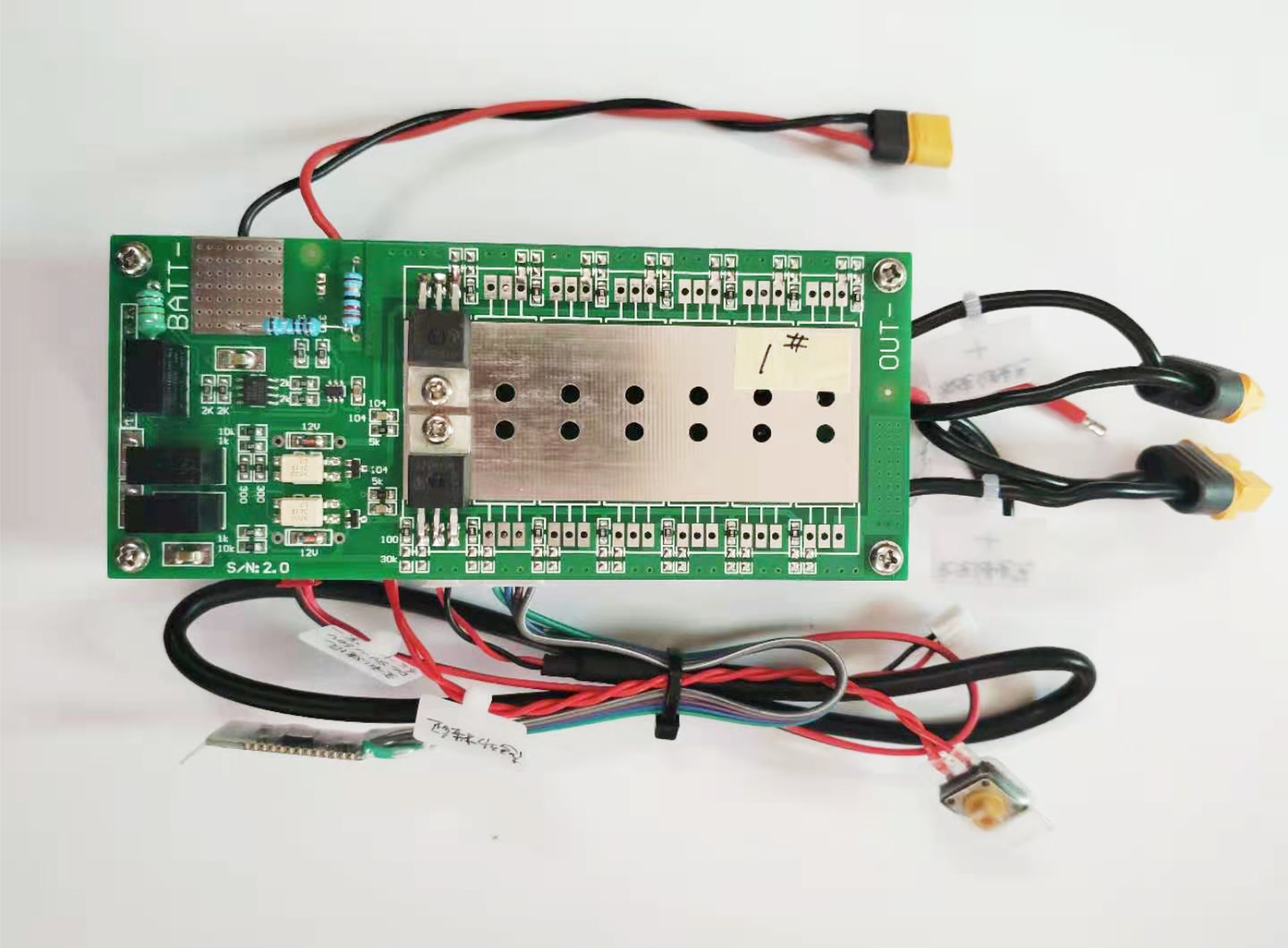

High Performance BMS,PCM for LiFePO4 Battery Packs

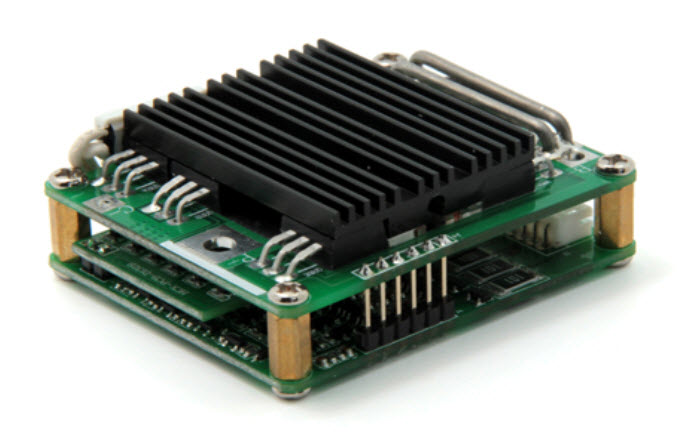

Small LiFe BMS D132 Series



Available Models:

4S, 8S, 12S, 16S, 32S

for more info of each model

Charging current: 10A to 25A

Discharging current: 25A

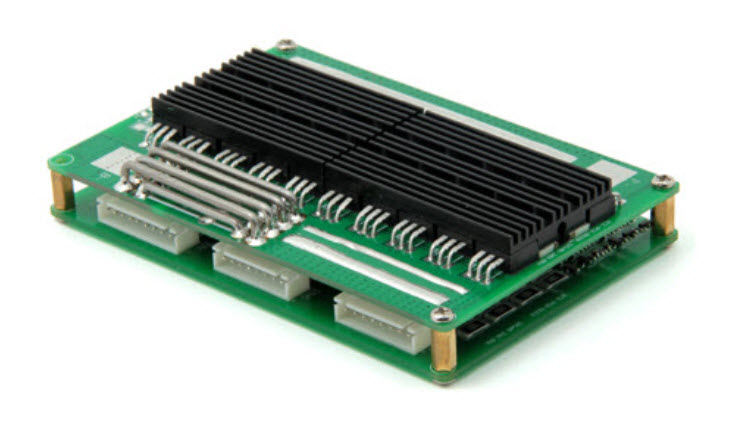

Medium LiFe BMS D131 Series



Available Models:

8S,12S, 16S, 20S, 24S

for more info of each model

Charging current: 50A

Discharging current: 50A

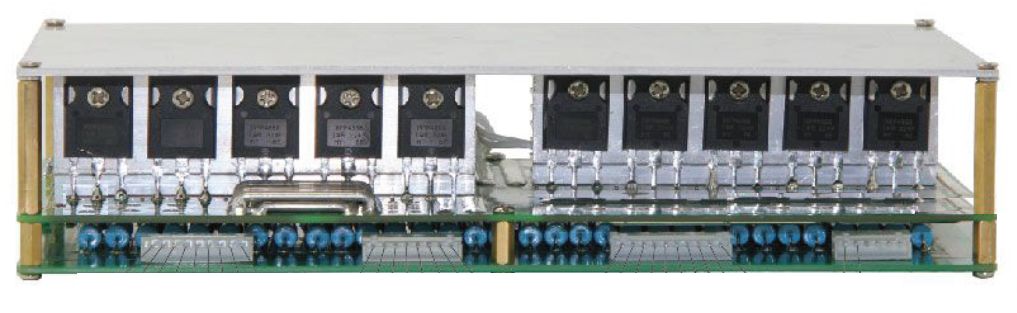

Large LiFe BMS, D138 Series



Available Models:

12S,16S, 20S,24S, 26S,

for more info of each model

Charging current: 80A

Discharging current: 100A

Large LiFe BMS, D170 Series

25A/50A

Available Models:

12S,16S, 24S, 32S

for more info of each model

Charging current: 80A

Discharging current: 250A

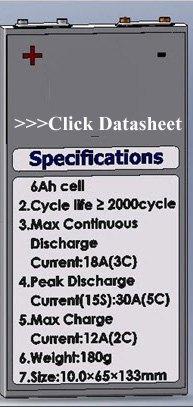

For 6Ah Cell Specification See Below

Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING  , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .

capacity = 6Ah , with size = 10 x 65 x 133 mm.  , Weight = 180 g.

max. continuous discharge current  = 18A (3C)

Peak discharge current 15S =  30A (5C)

max. Charge current = 12A (2C)

cycle life > 2,000  cycle

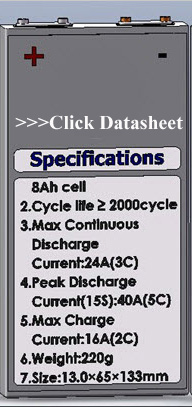

For 8Ah Cell Specification See Below

Lithium Ferrum ( Iron ) Phosphate LiFePo4 cell aluminium casing for COOLING  , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .

capacity = 8Ah , with size = 13 x 65 x 133 mm.  , Weight = 220 g.

max. continuous discharge current  = 24A (3C)

Peak discharge current 15S =  40 A (5C)

max. Charge current = 16A (2C)

cycle life > 2,000  cycle

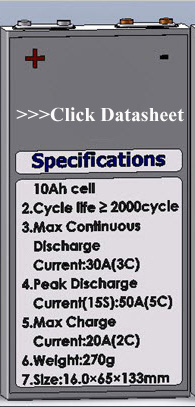

For 10Ah Cell Specification See Below

Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING  , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .

capacity = 10Ah , with size = 16.5 x 65 x 139 mm.  , Weight = 270 g.

max. continuous discharge current  = 50A (5C)

Peak discharge current 15S =  80A (8C)

max. Charge current = 30A (3C)

cycle life > 2,000  cycle

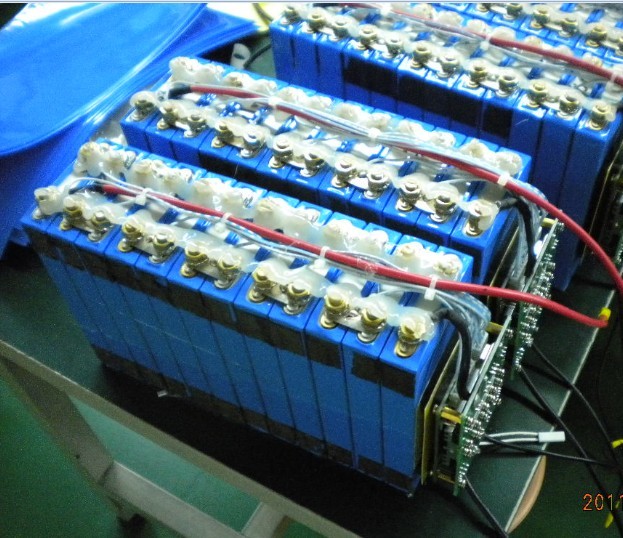

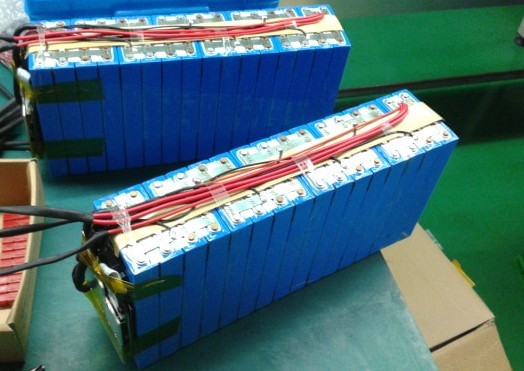

LiFePO4 Battery Pack

GM Aluminium Casing

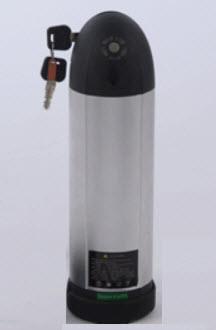

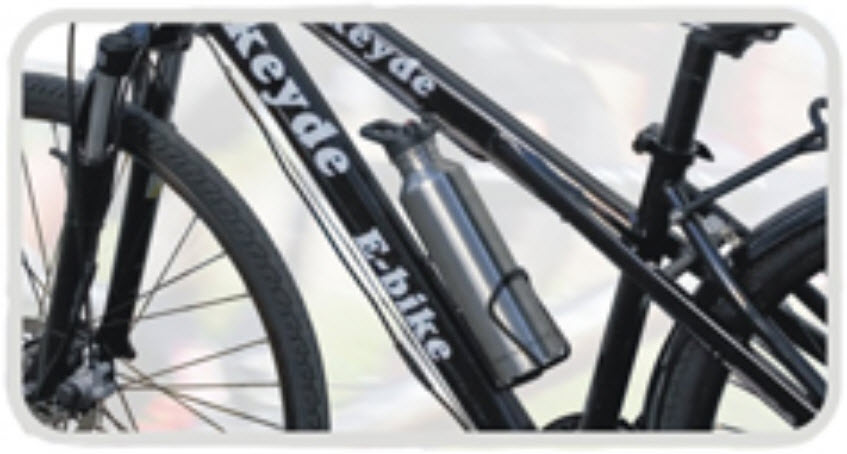

Water Bottle LiMn

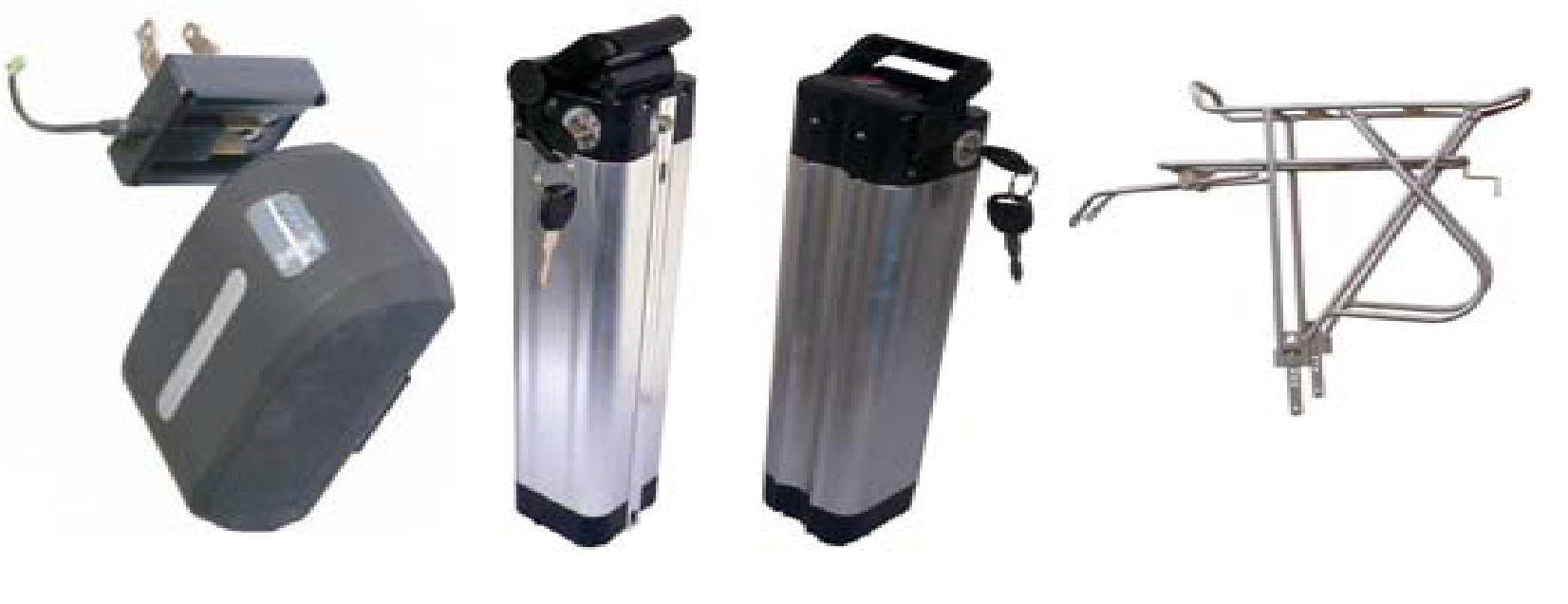

Various Type of Battery Case

Click for more details

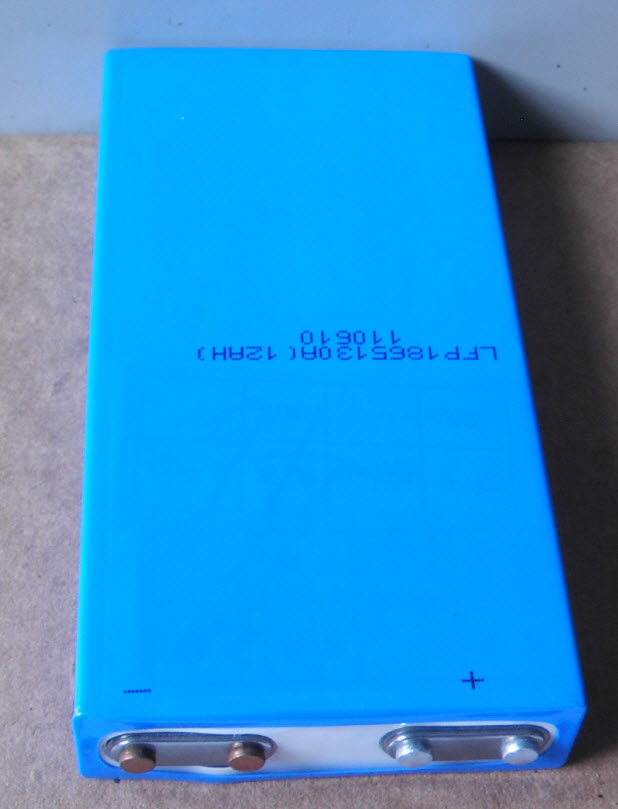

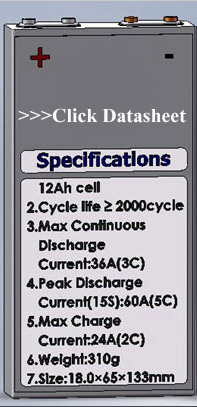

For 12Ah Cell Specification See Below

Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING  , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .capacity = 12Ah , with size = 18 x 65 x 133 mm.  , Weight = 324 g.max. continuous discharge current  = 60A (5C)Peak discharge current 15S =  96A (8C)max. Charge current = 32A (2C)

cycle life > 2,000  cycle

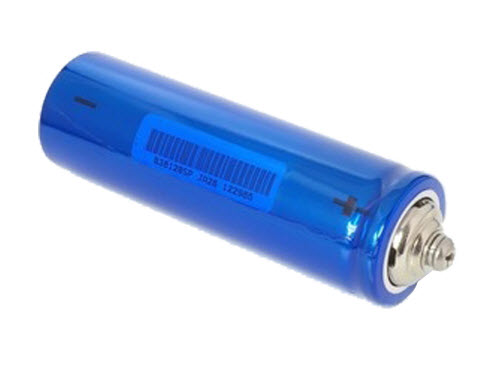

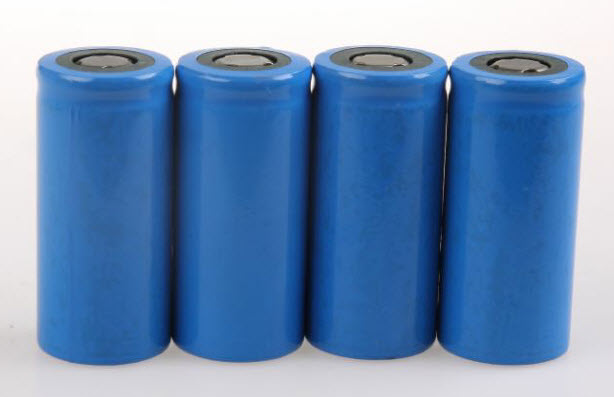

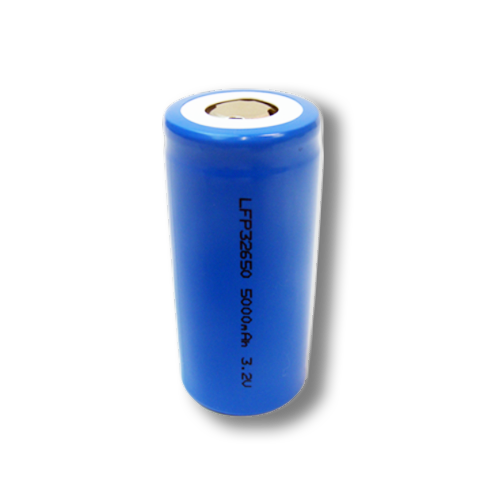

Special Product(OEM) Lifepo4 LR-32700 3.2V 5Ah Cell.

- Material :LiFePO4
- Typical capacity : 5AH
- Nominal Volt :3.2V
- Dimension: 32x 70mm
- N.W : 144g
- 2500 cycles to 80% with 100% DOD under normal temperature

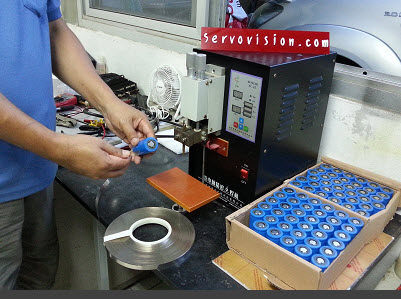

We can customized Pack by spot-weld with Pure nikle strip!!Call!!

Special Product(OEM) Lifepo4 KHY-9059156 6Ah Cell.

- Material :LiFePO4
- Typical capacity : 6AH
- Nominal Volt :3.2V
- Dimension: 156x59x9 mm
- N.W : 152g
- 2500 cycles to 80% with 100% DOD under normal temperature

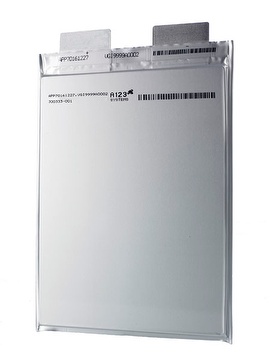

Special Product(OEM) LifePO4 3.2V 20Ah Cell.

- Material :LiFePO4
- Typical capacity : 20AH
- Nominal Volt :3.2V
- Dimension: 22x 90X148mm
- N.W : 550g
- 2800 cycles to 80% with 100% DOD under normal temperature

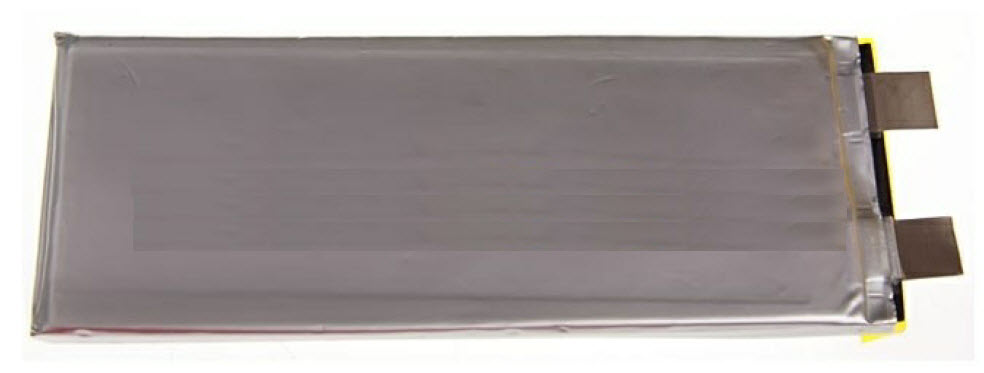

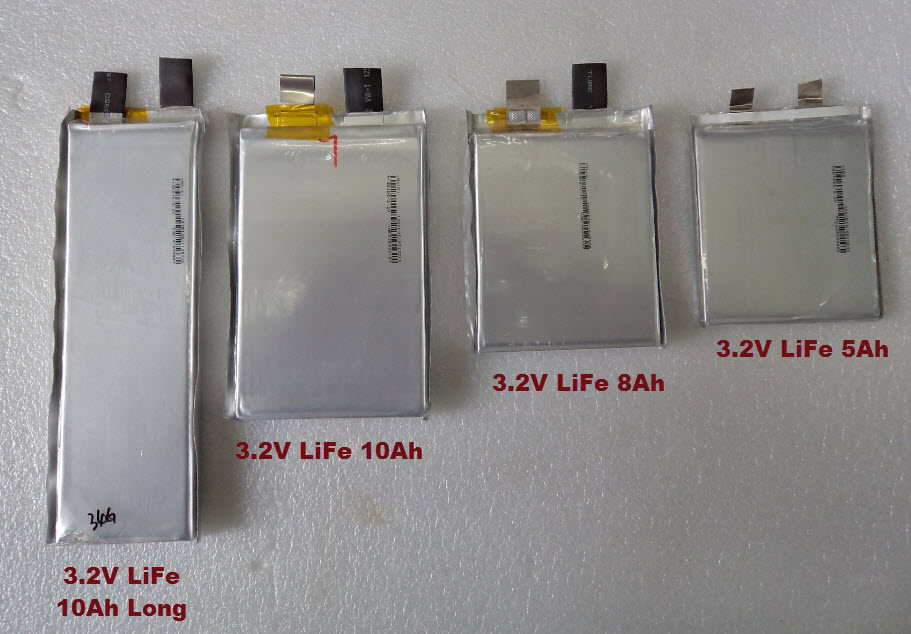

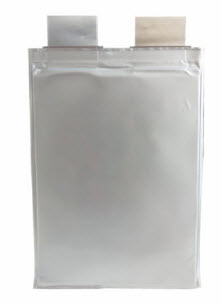

Long Life span,Ultra safe LifePo4 Pouch cell

Click More info

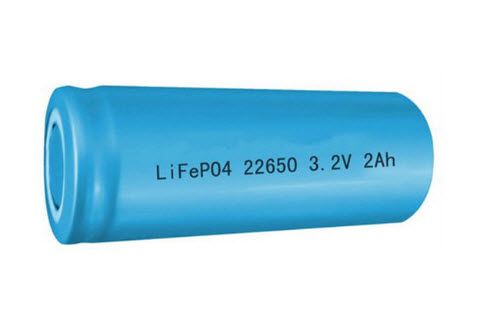

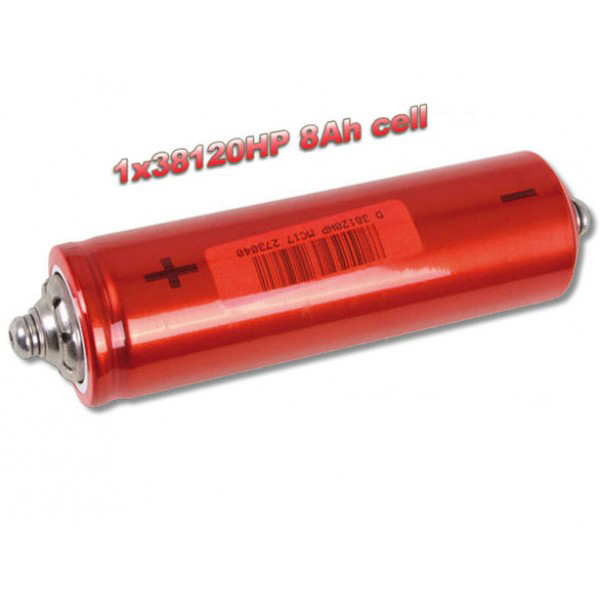

Lithium Iron Phosphate Cell LFP LiFeP04, 8Ah 3.2V BMS /Cylindrical Shape


Alu. case +Key Switch Pack 12V. 10 Ah Size + Weight Alu. case +Key Switch Pack 24V. 10 Ah Size + Weight

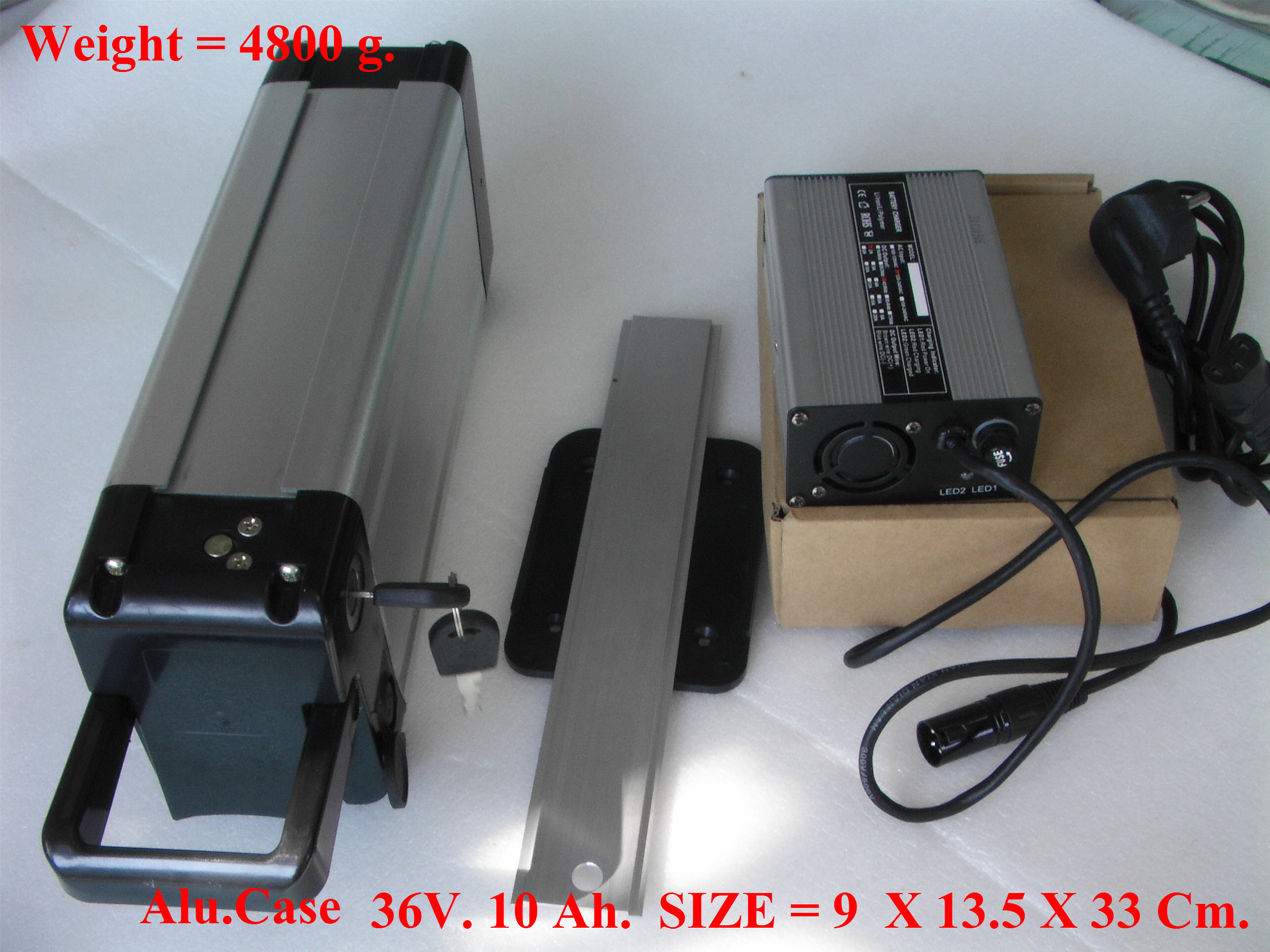

Alu. case +Key Switch Pack 12. 36V. 10AhSize + Weight

Alu. case +Key Switch Pack 48V. 10 Ah Size + Weight
