Drives


Bipolar two phase stepper motor drives


Products >>

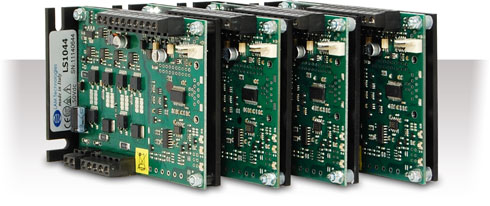

Step and Direction, wall mounting, Stepping Motor Drives series

LS1041 LS1044

Supply from 18Vdc up to 50Vdc
Current up to 1.4Arms
78x110x25mm (3.07x4.33x0.98in)

Supply from 20Vdc up to 50Vdc
Current up to 4Arms
78x110x25mm (3.07x4.33x0.98in)

LS1048 LS1073

Supply from 20Vdc up to 50Vdc
Current up to 8Arms
78x110x25mm (3.07x4.33x0.98in)


Supply from 24Vdc up to 90Vdc
Current up to 3Arms
78x110x25mm (3.07x4.33x0.98in)

LS1076 LS1078

Supply from 24Vdc up to 90Vdc
Current up to 6Arms
78x110x25mm (3.07x4.33x0.98in)

Supply from 24Vdc up to 90Vdc
Current up to 10Arms
78x110x25mm (3.07x4.33x0.98in)

LS1084 LS1087

Supply from 45Vdc up to 160Vdc
Current up to 4Arms
78x110x25mm (3.07x4.33x0.98in)

Supply from 45Vdc up to 160Vdc
Current up to 8.5Arms
78x110x25mm (3.07x4.33x0.98in)

LS1098 LS1041A


Supply from 45Vdc up to 240Vdc
Current up to 10Arms
78x110x25mm (3.07x4.33x0.98in)

Supply from 16Vac up to 36Vac
Current up to 1.4Arms
78x110x35mm (3.07x4.33x1.38in
)

LS1044A LS1073A

Supply from 18Vac up to 36Vac
Current up to 4Arms
78x110x35mm (3.07x4.33x1.38in)

Supply from 18Vac up to 36Vac
Current up to 3Arms
78x110x35mm(3.07x4.33x1.38in
)

Open design bipolar stepper motor drives

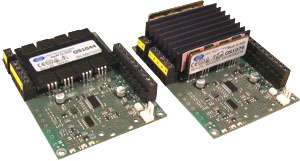

Open design bipolar stepper motor drives    The drivers are mountable through 4 holes placed on the corners of the board.
    The connection of the signal and power cables is through screw terminal blocks suitable for 2,5mm 2 wire size.

    The diagnostics is accurate and the setting is quick and simple thanks to the graphic software UDP Commanderdesigned for Windows platform.
    The many setting options available allow to use the drivers with many kinds of motor and applications. For example, it is possible to set each input to operate in true or negate logic, to set the automatic current reduction time and percentage, etc.


The low cost reserved to high volumes makes these drivers the ideal choice for high quantity OEM applications.

os1044OS1044
4Arms 5.6Apk 50Vdc microstepping driver

os1048OS1048
8Arms 11.3Apk 50Vdc microstepping driver
os1073OS1073
3Arms 4.2Apk 90Vdc microstepping driver
os1076OS1076
6Arms 8.5Apk 90Vdc microstepping driver
os1078OS1078
10Arms 14.1Apk 90Vdc microstepping driver
os1084OS1084
4Arms 5.6Apk 160Vdc microstepping driver
os1087OS1087
8.5Arms 160Vdc microstepping driver
os1098OS1098
10Arms 14.1Apk 240Vdc microstepping driver



Bipolar stepper motor drives suitable for PCB mounting

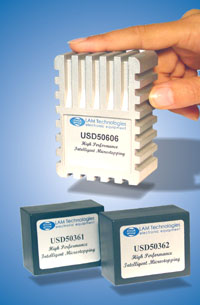

Bipolar stepper motor drives suitable for PCB mounting     The stepper motor drive modules of the USDxxx series have been designed for circuit board assembling and are the optimal solution to reduce sizes and eliminate wiring.

    Perfectly integrable with the electronics of the machine, they often allow to realize one only electronic board to contain all the electronic circuits necessary to the machine.

    Totally twelve different models are available, split in three current sizes and four different functionalities. Some models are controllable through the STEP and DIRECTION signals, others through the serial link. For both of them are available versions with a step resolution of half step and versions which allow the microstep resolution up to 25.600 step/rev.

    Through a protocol designed to minimize communication latency, it is possible to connect up to 32 different drivers using a simple two wires serial link. The commands set is wide and complete: it allows to set up the acceleration times, the minimum and maximum frequency, etc; it allows to execute absolute positioning or relative to the current position and, furthermore, it allows to read in real time the functioning state of the module and the instant position of the motor. The motor position is represented with a resolution of 32bit.
    Three general purposes I/O lines freely settable as input or output, complete the serial version of the modules. Such lines, opportunely set, can also trigger a positioning start or emergy stop.

usd10361

USD10361
1,2Apk 42Vdc microstepping driver

usd10362

USD10362
2,4Apk 42Vdc microstepping driver

usd10606

USD10606
7,5Apk 85Vdc microstepping driver

USD20361
1,2Apk 42Vdc bipolar driver

USD20362

USD20362
2,4Apk 42Vdc bipolar driver

usd20606

USD20606
7,5Apk 85Vdc bipolar driver

usd50361

USD50361
1,2Apk 42Vdc serially controllable microstepping driver

usd50362

USD 50362
2,4Apk 42Vdc serially controllable microstepping driver

usd50606

USD50606
7,5Apk 85Vdc serially controllable microstepping driver

usd60361

USD60361
1,2Apk 42Vdc serially controllable bipolar driver

usd60362

USD60362
2,4Apk 42Vdc serially controllable bipolar driver

usd60606

USD60606
7,5Apk 85Vdc serially controllable bipolar driver





Bipolar stepper motor drives suitable for DIN rail mounting

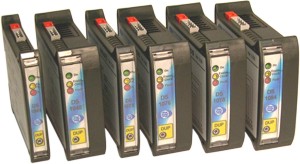

Bipolar stepper motor drives suitable for DIN rail mounting     High reliability and performance, compact size and low cost have been the guidelines followed to develop the drivers of DSxxx series suitable for DIN rail mounting.

    Using the last electronic components generation and the SMT technology it has been possible to produce an high power driver in a compact and smart case easy and quick to install on a DIN rail. The connection to the motor, with the logical signals and to the power supply is through three different colored terminal blocks, each one of them is removable, numbered and suitable for 2,5mm2 wire size.

    The many setting options available allow to use the drivers with many kinds of motor and applications. The phase motor current can be tuned fine in a wide range of value as the step resolution, the current reduction, etc.
Each logic signal can be connected independently from the other for PNP or NPN use, the input line can also be driven using differential line driver technology.

    The diagnostics is accurate, the setting of the driver is quick and simple thanks to the graphic software UDP Commander designed for Windows platform.

ds1044DS1044
4Arms 5.6Apk 50Vdc Micro-
stepping Driver

ds1048DS1048
8Arms 11.3Apk 50Vdc Micro-
stepping Driver

ds1073DS1073
3Arms 4.2Apk 90Vdc Micro-
stepping Driver

ds1076DS1076
6Arms 8.5Apk 90Vdc Micro-
stepping Driver
ds1078DS1078
10Arms 14.1Apk 90Vdc Micro-
stepping Driver
ds1084DS1084
4Arms 5.6Apk 160Vdc Micro-
stepping Driver
ds1087DS1087
8.5Arms 12Apk 160Vdc Micro-
stepping Driver
ds1098DS1098
10Arms 14.1Apk 240Vdc Micro-
stepping Driver






s   s
Stepper Motor Drives
