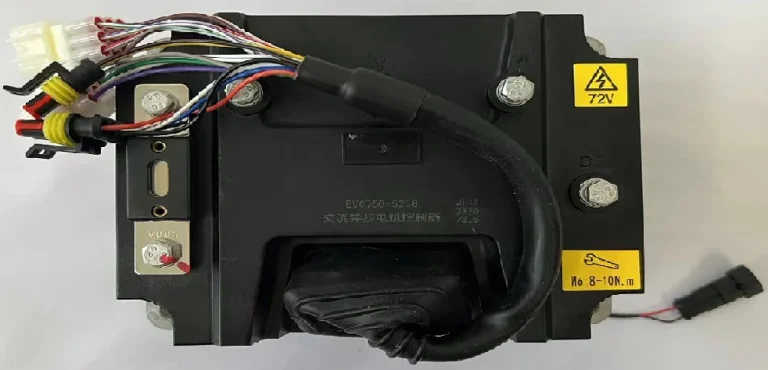

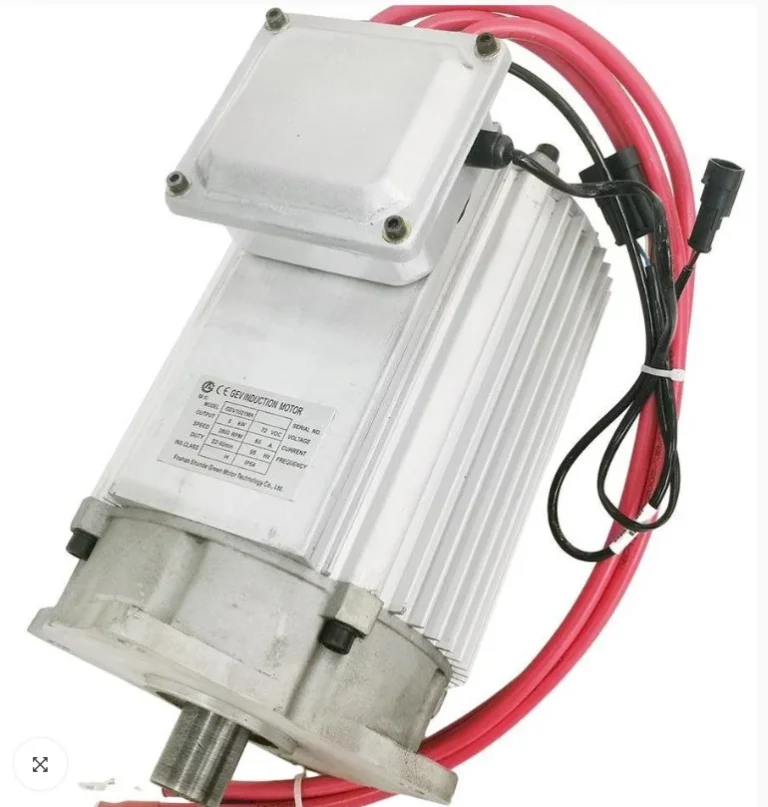

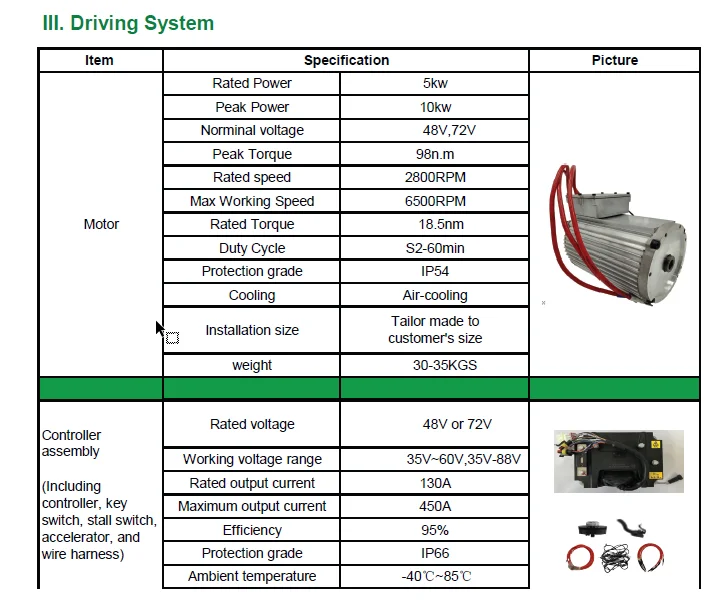

AC induction motor EV 5Kw 48V , 72V with AC indction controller 5Kw-8Kw blue tooth vai Andriod APP for monitoring and setting all paratmers
AC induction motor EV 5Kw 48V , 72V with programmable AC indction controller HERCULES 5Kw-8Kw blue tooth vai Andriod APP for monitoring and setting all paratmers

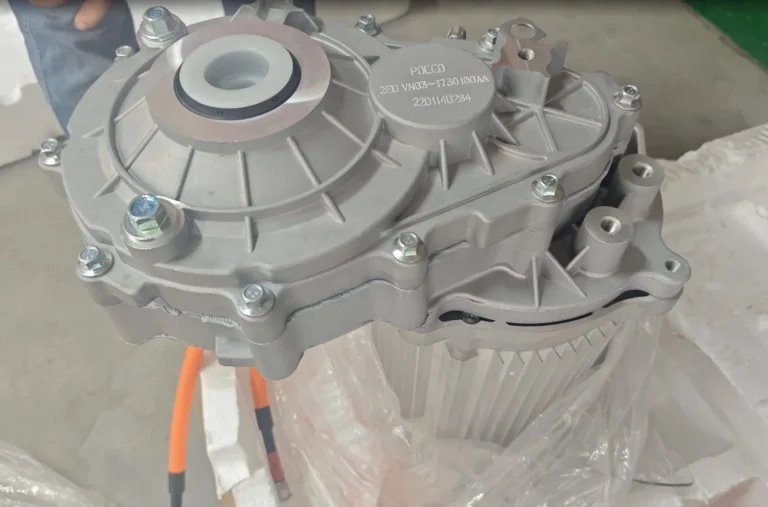

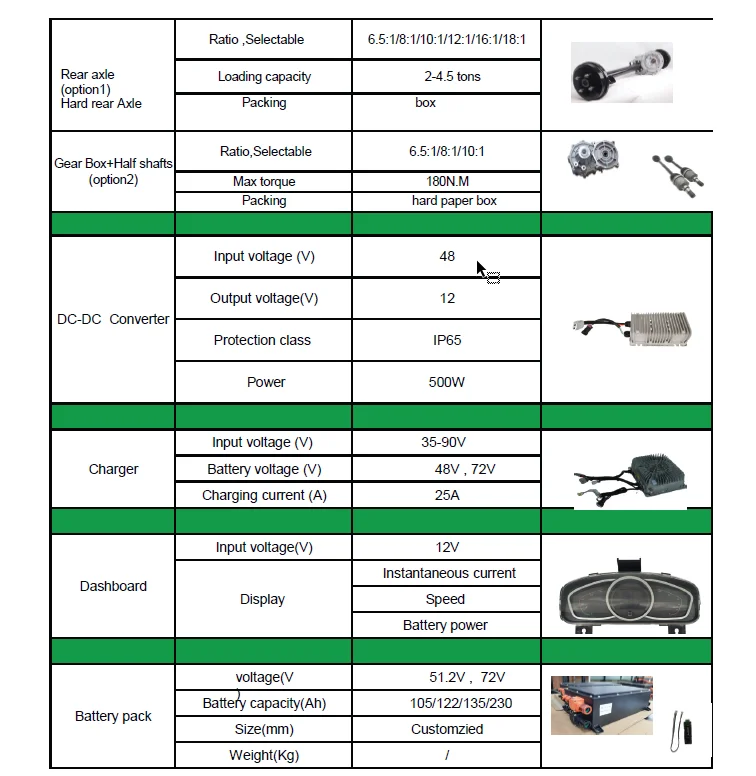

OPTION of GearBox Differentail gear and Drive shaft CV
GearBOX can choose ratio upon ordering
Hard Rear Axle gear RATIO selectable of 6.5 :1 , 8:1 , 10:1 ,12:1 , 16:1 , 18:1
Flexible drive shaft GEAR RATIO selectable of 6.5:1 , 8:1 , 10:1
Connect the controller to host(User program or APP)
Please check the programming cable or bluetooth dongle is connected correctly,the user program
software or APP can be used and opened.
When you use APP to connect the controller for configuration,please contact your sales manager for
register account first.You just need to input name,company info,cell phone number and password in the
first pop-up window of APP.After sending it,our server will receive the requesting accordingly.We will
approval this requesting.Then you can use the cell phone number as account to use this APP.
After the user program or APP is successfully connected, first check the system parameters to confirm
that the DC system voltage is consistent with the vehicle battery voltage consistency,and ensure that the
maximum output current of the driver is compatible with the controller model.
