QS138 90H water Cool 4Kw-10Kw 72V

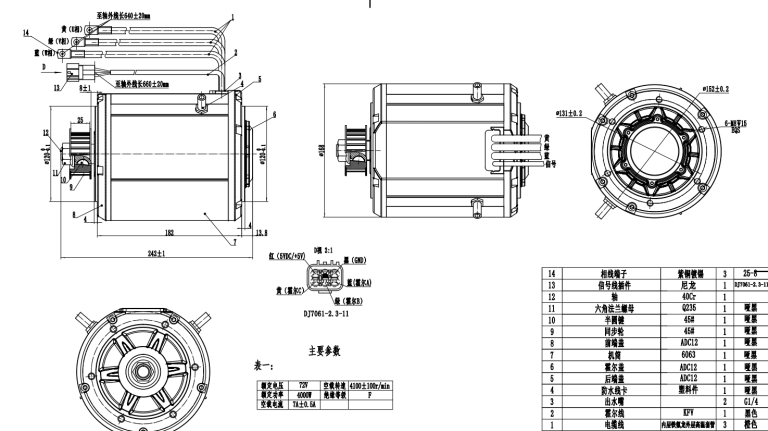

QS138 4000W 90H PMSM Water Cooling Mid Drive Motor with 428 sprocket
QS motor138 90H mid drive motor rated power 4Kw-5Kw Water Cool work well with Kellycontroller 600A for massive Torque

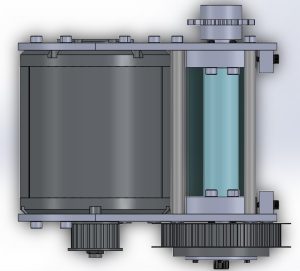

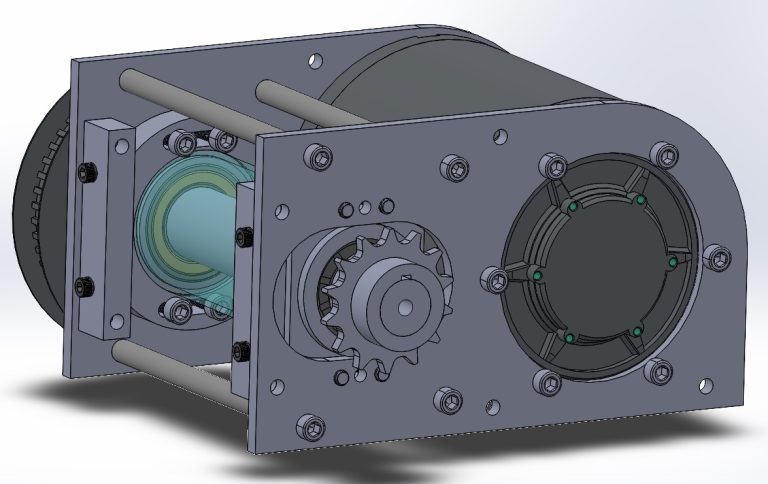

Motor Output shaft is sprocket 428 stabdard 14T user can choose any driven Sprocket teeth as Torque is large enough to get top speed of eMotorcycle at 140 Km per hour controller equipped with Aluminium alloy water cool base
Set approach max. efficiency 93% or more with controller 600A be able to deliver max. Torque 100Nm or more as long as good water cooling motor have 5 magnetic pole pair weight 12.8Kg industrial protection IP67 work system S9 water cool

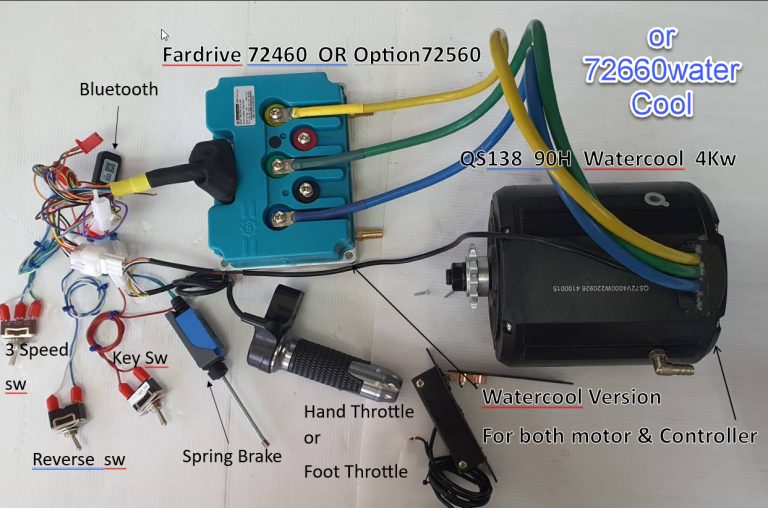

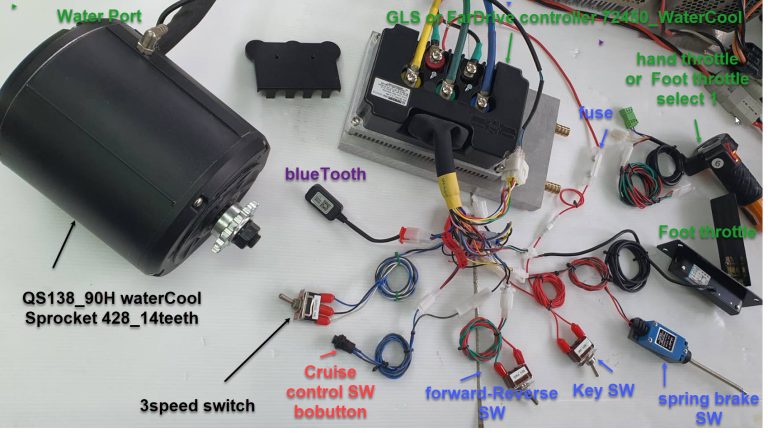

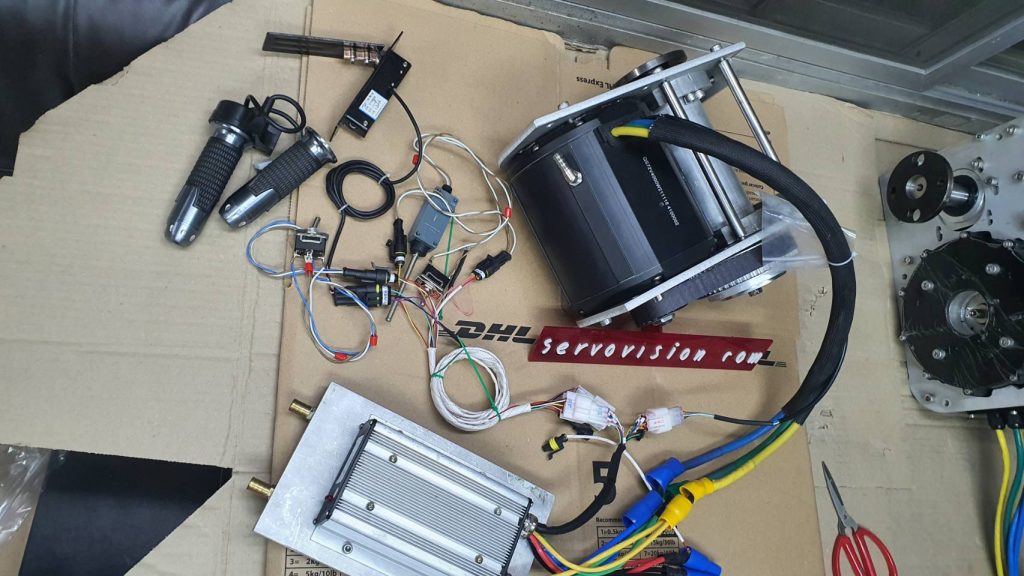

Kit come with long wire harness branch to each water proof connector to key switch Forward_Reverse switch Double Spring brake switch Throttle and CPU supply12Vdc
Controller is Isolated type for high performance driving ground 12Vdc must be separated with -Batt terminal .
Optional part is : Denzel Speedo meter =This display or dash board no use protocol So can use with any controller Speed signal you can take from any hall sensor and speed can be correct by change speedometer’s parameter such as : Quantity of motor poles and wheel circumference
The line in screen can show monitor battery voltage and current It can work with battery volt 36-110Vdc And essential functions monitor lamps warning such as turning left ,right, braking , mileage , ODO in metric or imperial ,ready led, cruise or fixed speed ,sport riding , reverse Park, high beam tow -color charging indicator key switch etc
Call = Extra cost
Please contact to www.servovision.com email: servo.vision@yahoo.com email: servovision1@hotmail.com

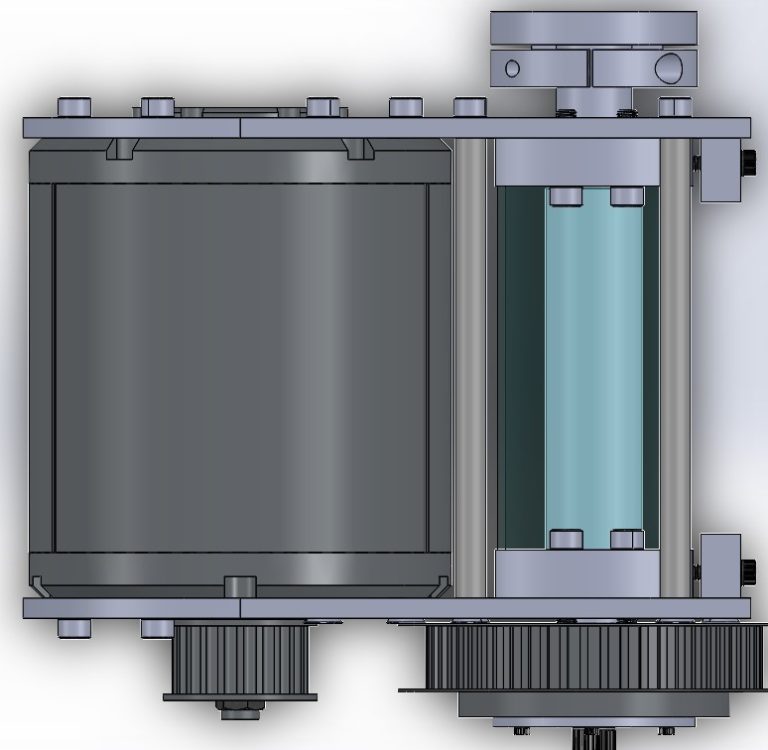

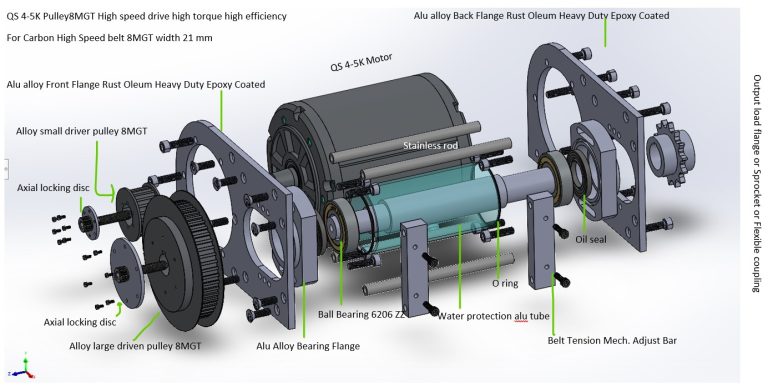

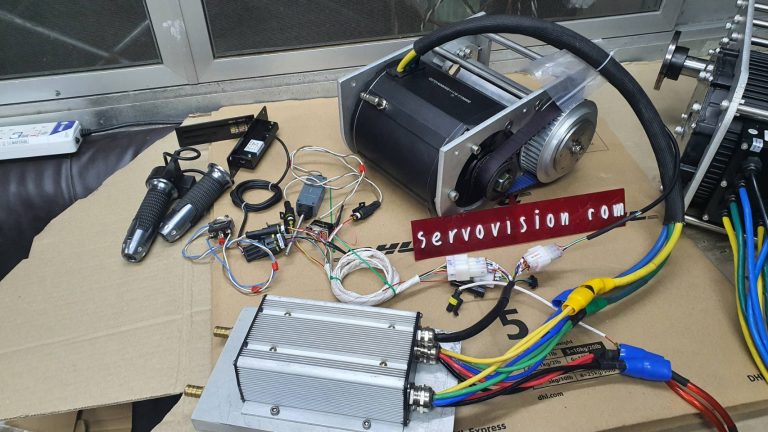

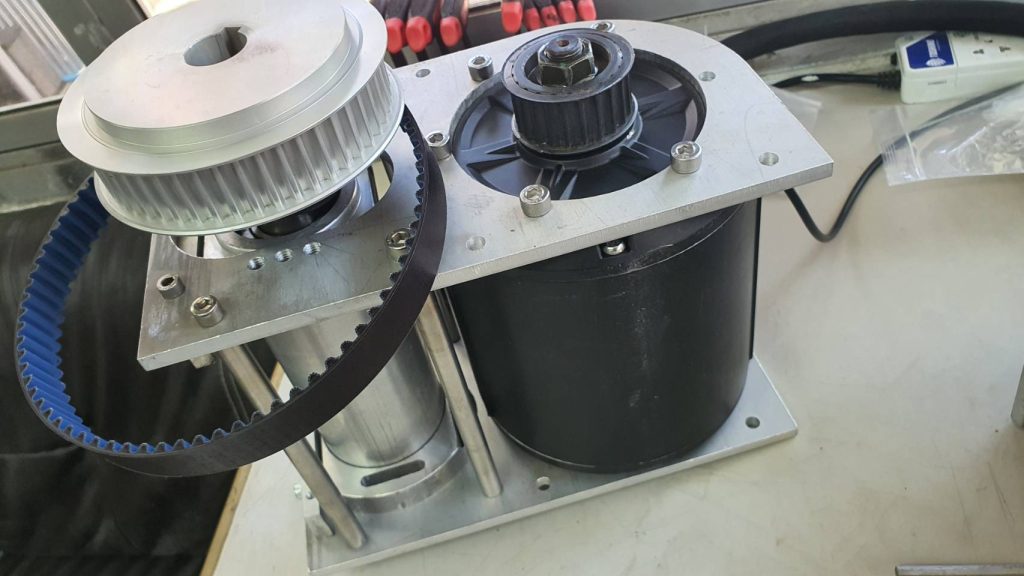

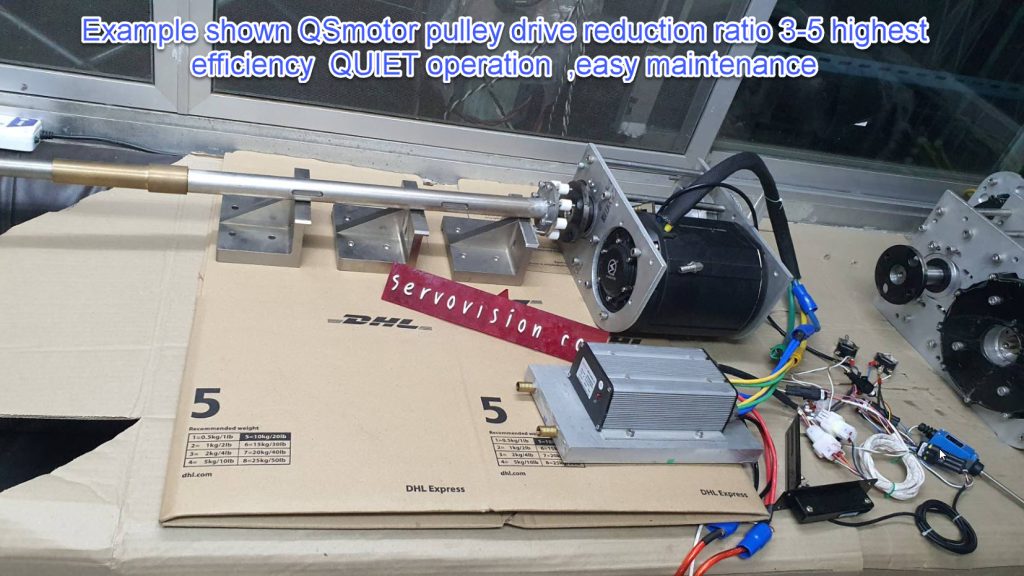

QS138 90H water Cool OPTION of pulley drive reduction ratio 3-5 selection to increase torque 3-5 time with reduce output max, speed 3-5 devider , also Goldenmotor HPM10K 10kw peak 20Kw 48V 72V 96V

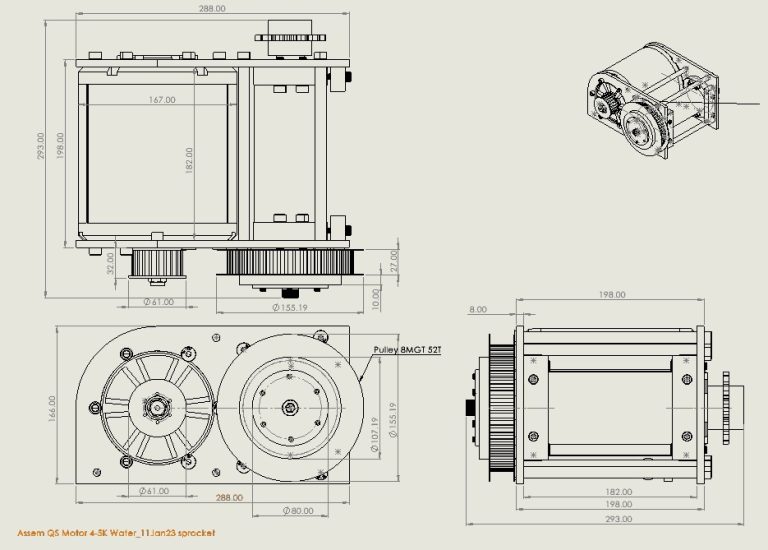

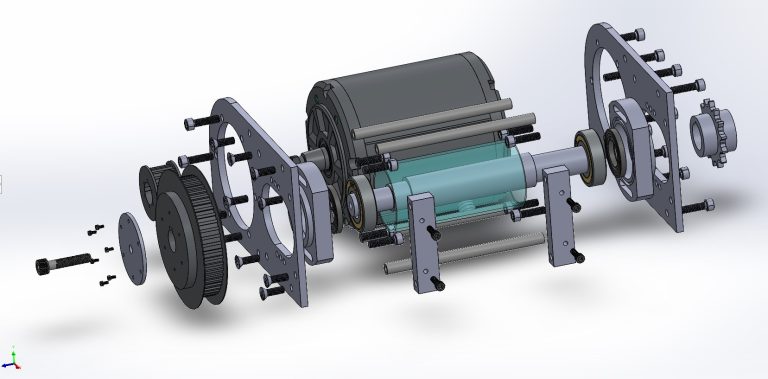

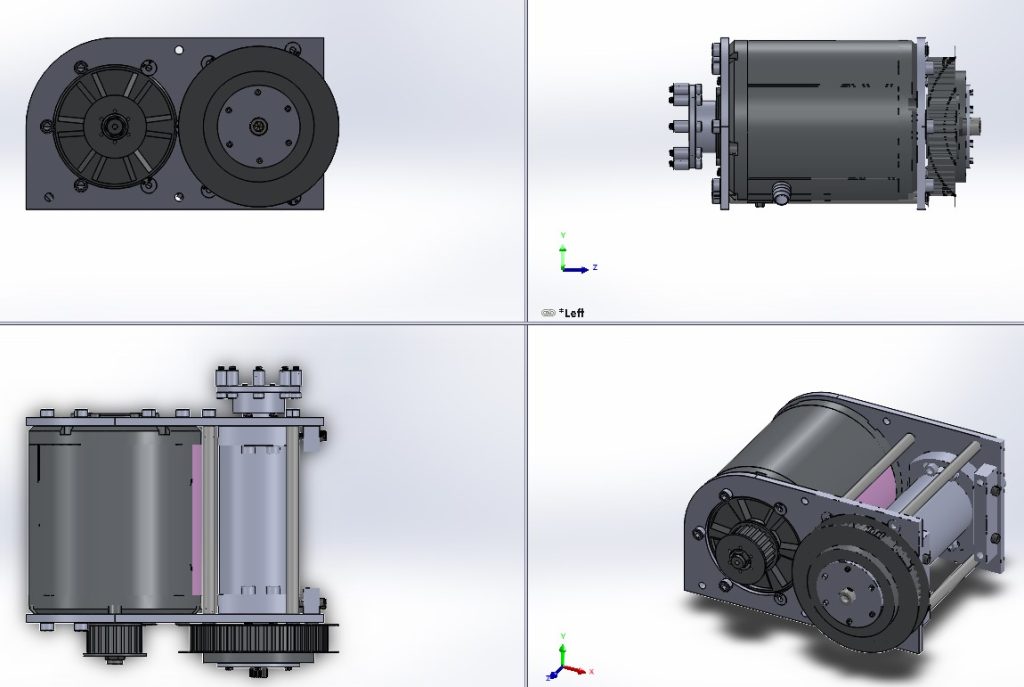

QS138 90H Pulley Drive Technical details and user manual ,see below PDF sheet
and

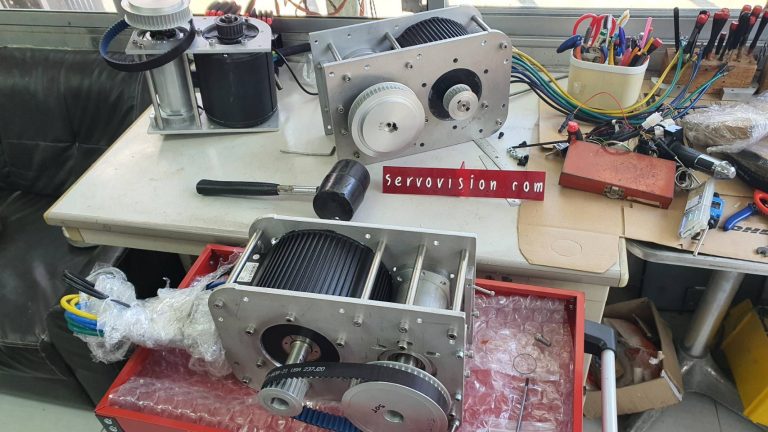

HPM10Kw Pulley drive reduction ratio 3-5 selection
see below PDF sheet
