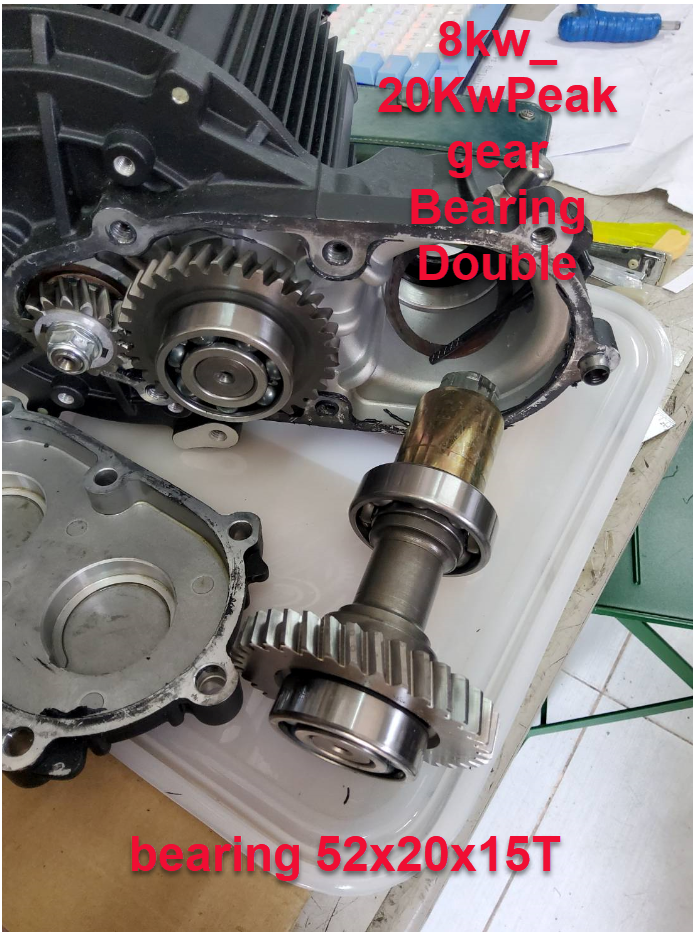

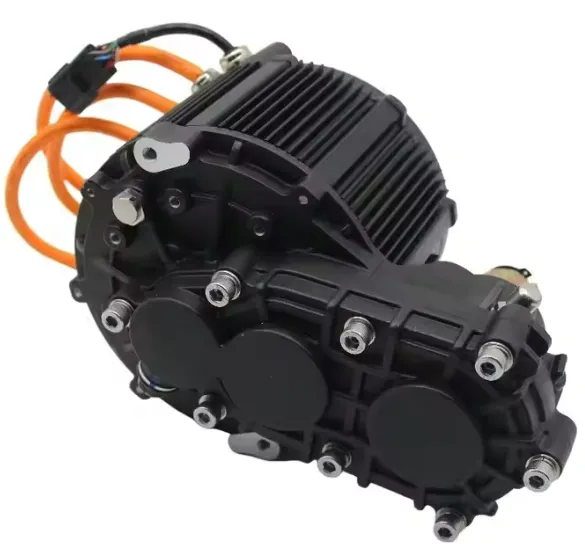

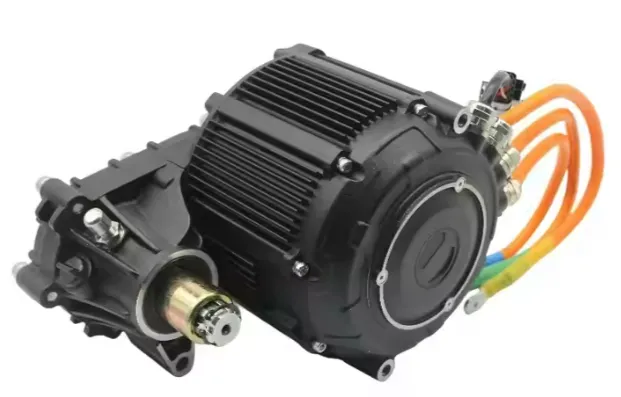

EV brushless motor GEAR PMSM_ BLDC motorGear 8Kw /20Kw 72V_ 96V with Strong output shaft adn double bearing support New HairPin winding(much more better than conventional winding) provide highest performance

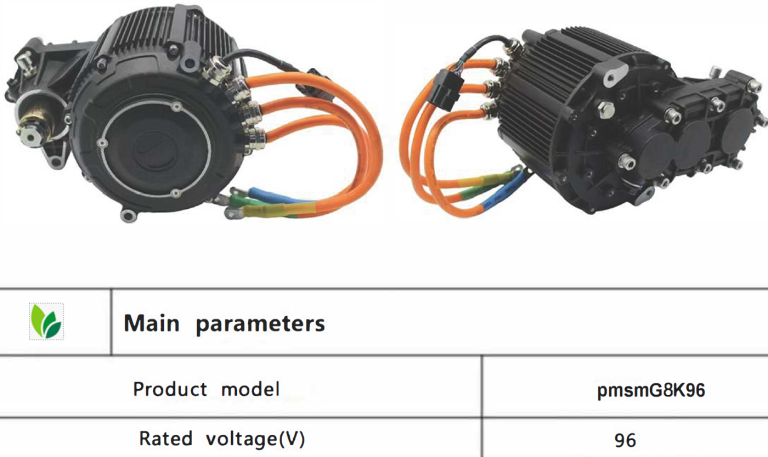

BLDC PMSM motorGear 8Kw-12Kw Peak 25Kw for 72V or 96V EV brushless motor GEAR PMSM_ BLDC motorGear 8Kw /20Kw 72V_ 96V with Strong output shaft adn double bearing support

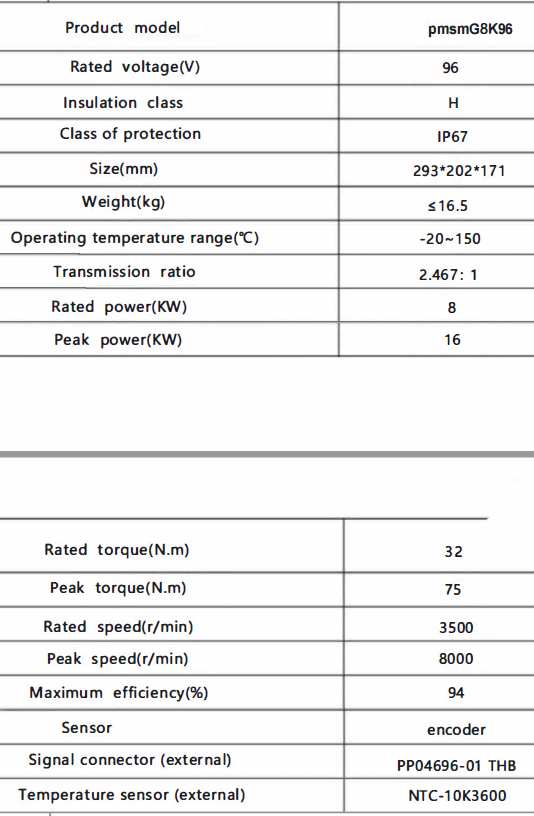

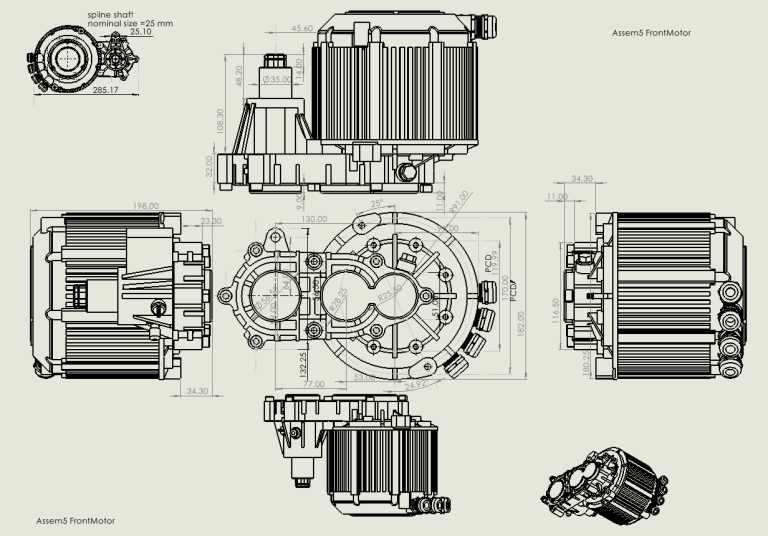

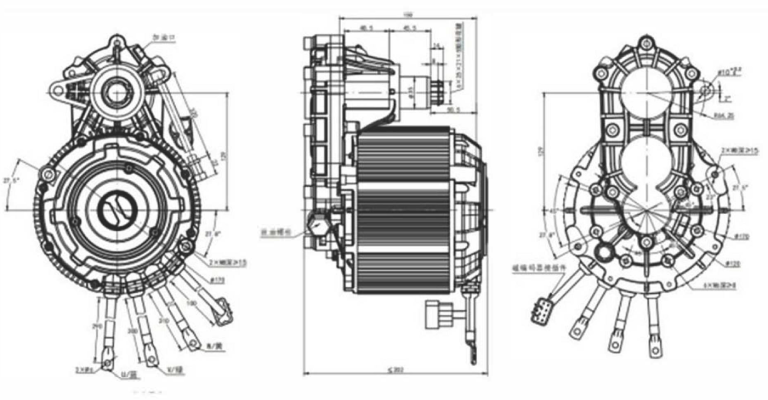

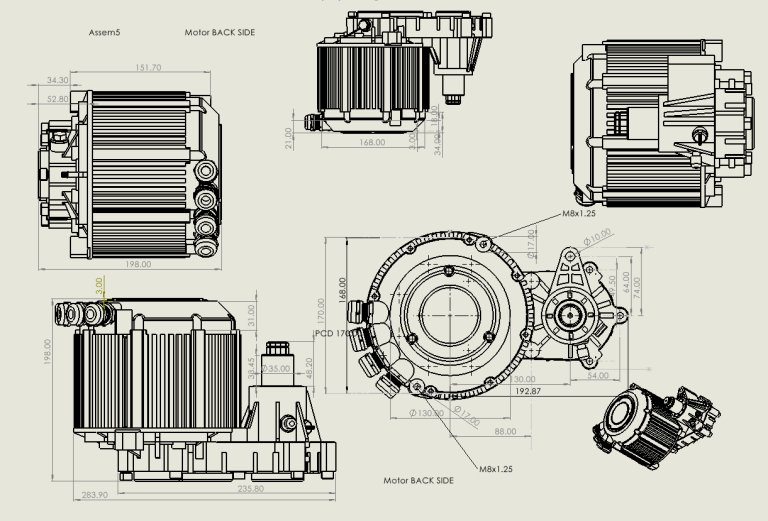

compact size 293 x 202 x 171 mm Gear Ratio 2.5:1 deliver massive outpuyt torque motor and controller cna be set up for 72V or 96V battery max. speed 8000 rpm highest efficiency 94% wider operating temperature -20 up to 150 degreeC at weght 16.5 Kg with full protection IP 67

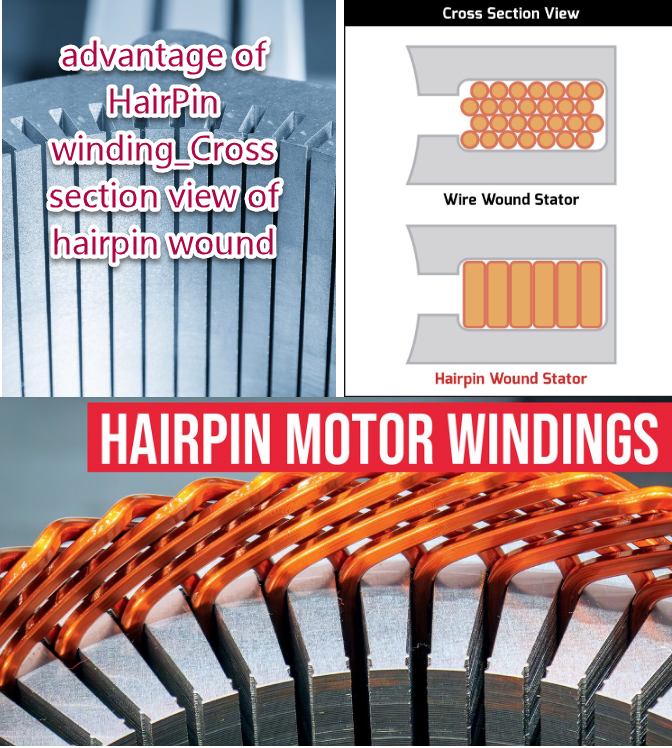

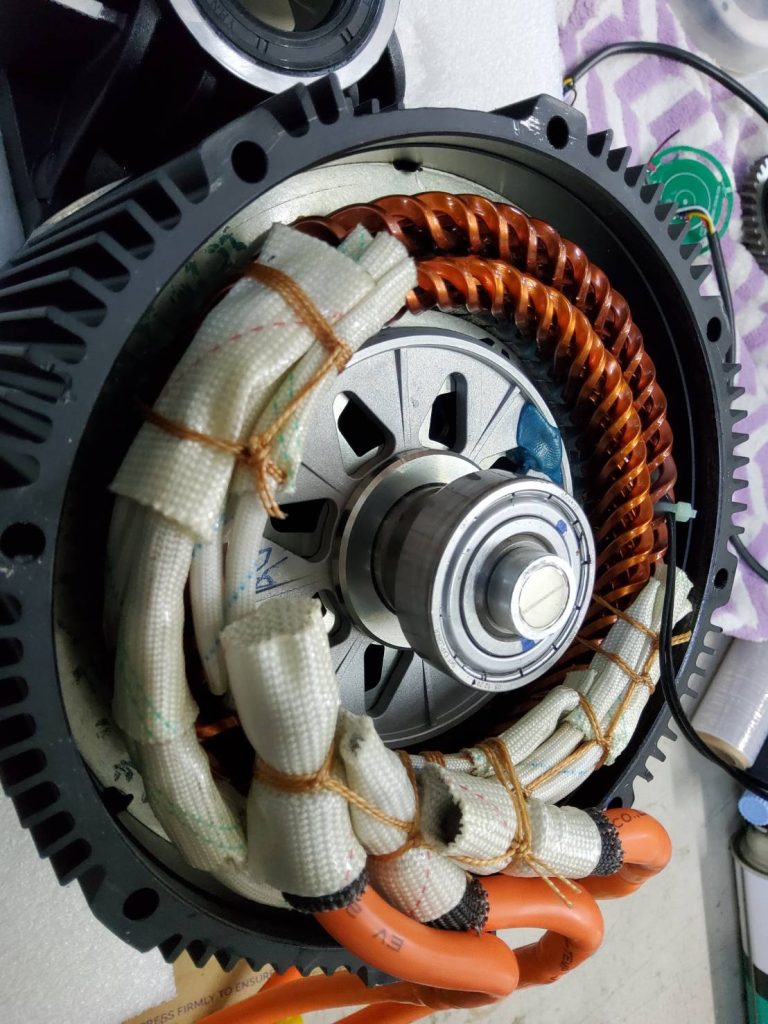

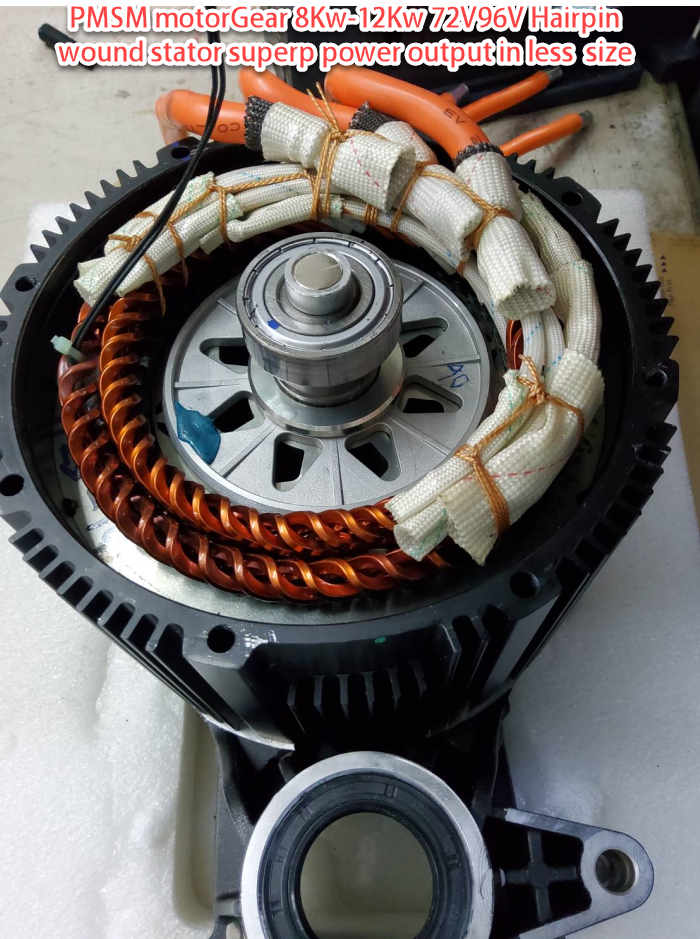

SPECIAL DESIGN New HairPin winding(much more better than conventional winding) provide highest performance power output in less space ,best heat dissipation,lower heat rise,less noise,higher efficiency,longer life span Technology

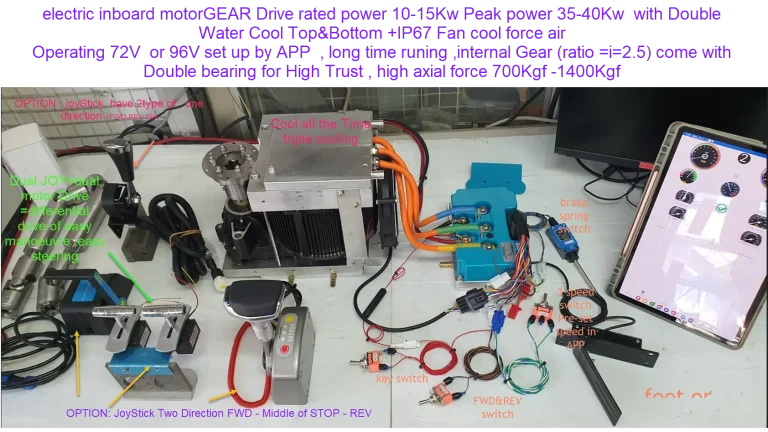

OPTION : combine cooling of Water or Liquid Cool and Fan cool 12Vdc or

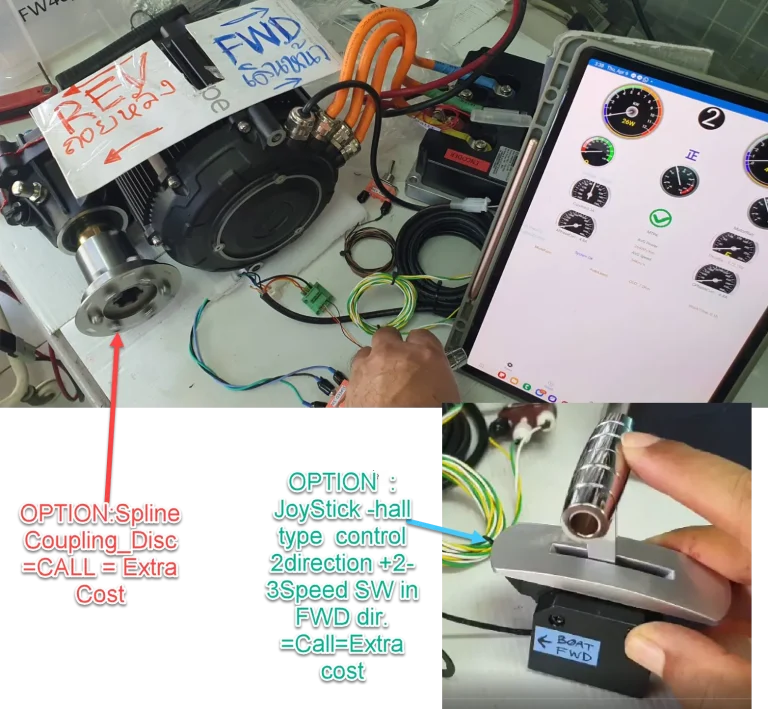

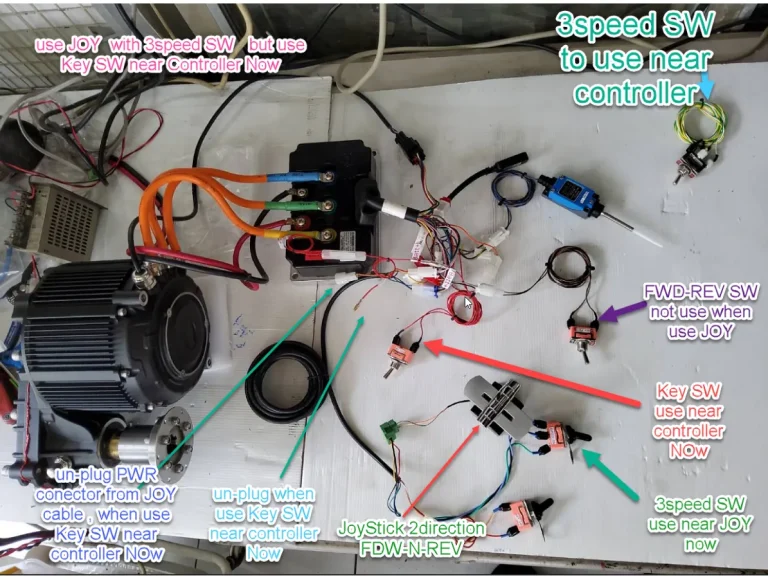

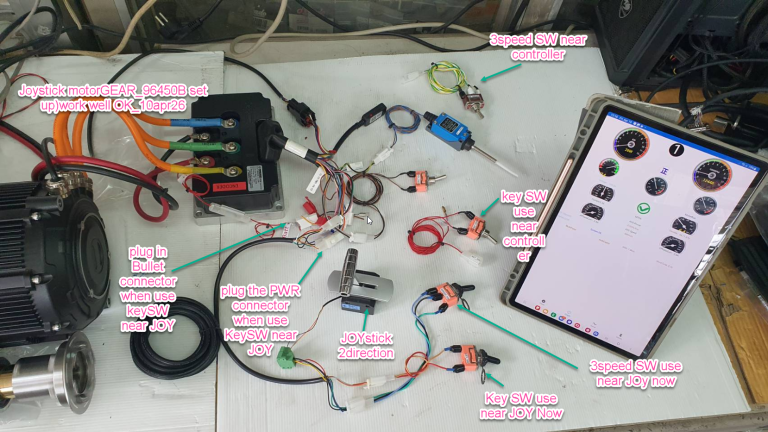

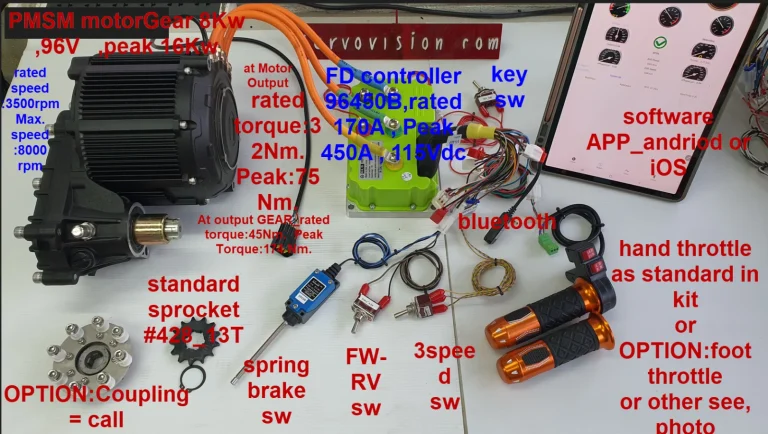

Foot throttle or Joystick control

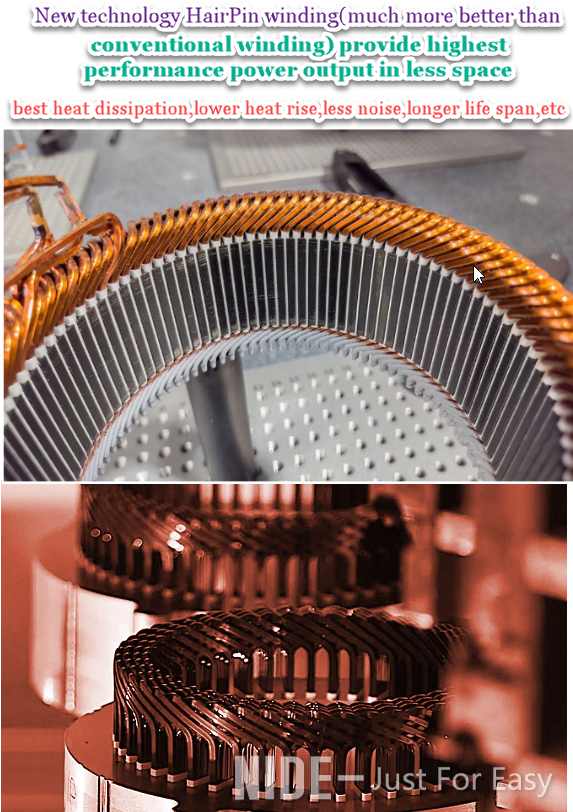

New technology Hairpin winidng highest power output in less space best heat dissipation lower heat rise long life span less noise,ETC
