QS138 70H 3000W V3 100kmh PMSM Mid-Drive Motor With 1:2.35 Internal Reduction Gears For Electric Motorcycle Moped DirtBike
PMSM blcd Motor QS13870H_V3 rate 3000w-4000w Internal Reduction Gears i 2.35

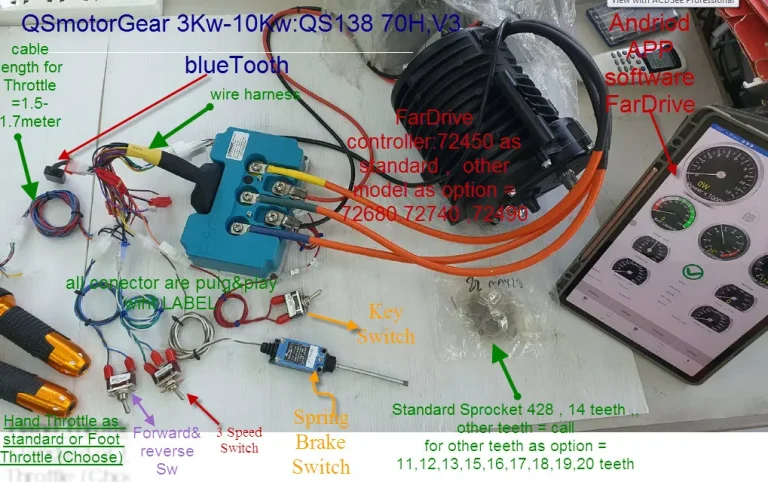

with FarDriver controller :72450 ,90Vmax, rated 200A peak 450A+blueTooth all switches as photo shown FarDriver software APP , download from link send you buyer highest performance controller EV Advantage reliable and high Performance
More extra functions Hi performace feature included field weakening that maintain a high torque during high speed
Power module use Toshiba Mosfet from Japan.Industrial protection IP66 rating. It has fruit functions for ev project.It has anti-theft function,three speed function,low and high level brake switch input,Cruise function regenerative braking .
OPTION : It has CAN optional function.It can support different CAN baud rate configuration.
The auto-learn function can be used directly support software APP or PC user program for setting n monitor Android APP and iPhone OS. It is more reliable and stable of improvement Now .
use inside aluminium PCB for best heat dissipation and noise immunity
problem for other brand It is not designed by themselves.And they just FarDrive brand have intellectual property right for customize hardware and software
The controllers can support 60 degrees hall sensor,120 degrees sensor
can support many types of motor temp sensors such as PTC,NTC,KTY841-30,83-122,84-121..
support releasing throttle regen mode and brake switch regen mode.
Under three speed modes user can configure the speed limiting and Current limitings for each speed mode.
OPTION :Speedo meter_DashBoard =call = Extra cost , have 2 type of FarDrive Speedo Meter and DenZel DashBoard
more Details about item :

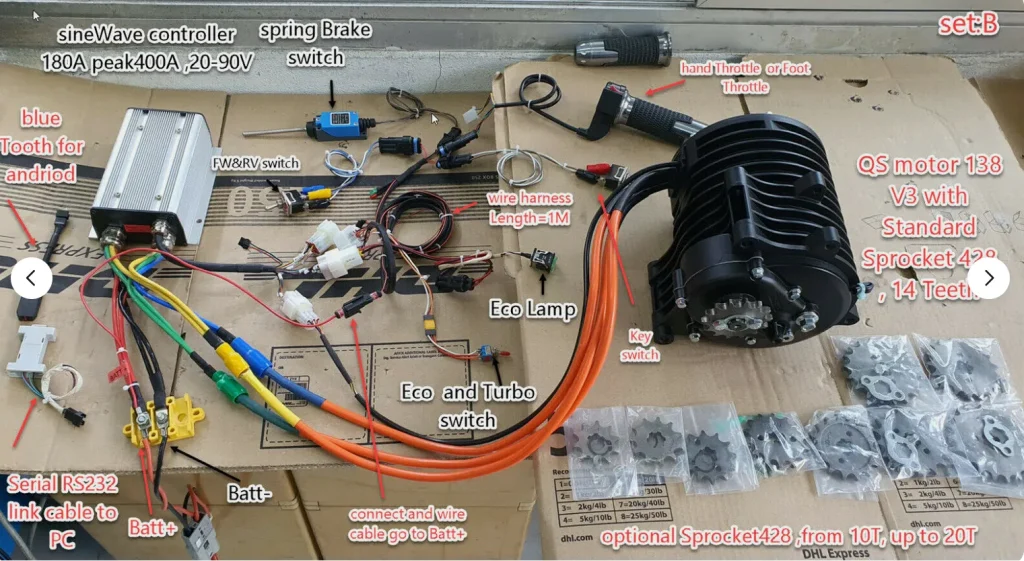

PMSM IPM Motor With Hall Sensor model: QS 138 70H SP With Internal Reduction Gears ratio 2.35:1 installed a standard 428 sprocket 14 teeth WITH ALL ACCESSORIES , ALL SW , THROTTLE , LED .WIRE HARNESS

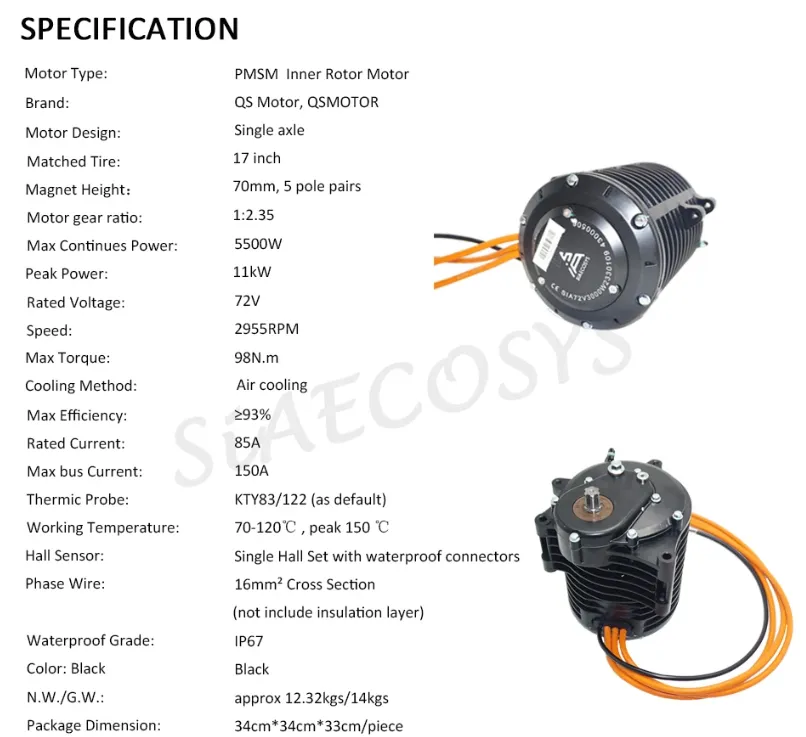

rated Power 3000w Peak Power 17Kw at Voltage 72 – 84 v max. 90V DC
come with software down load or Serial RS232 link cable

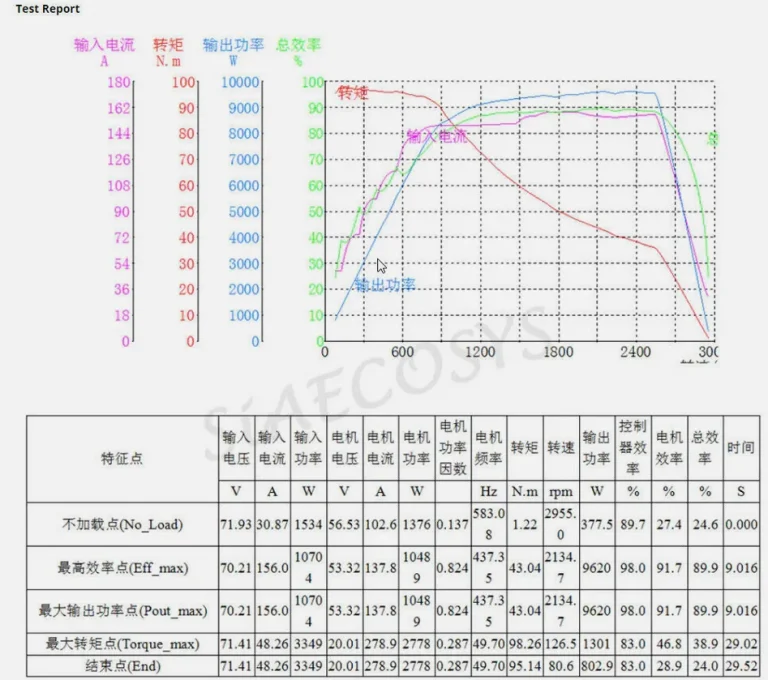

No load RPM 3800-5000 rpm Peak at 72 -86Vdc Max Efficiency 91%Max Torque 121.5 N.M
Battery Current 67A 5 Pole Pairs Current Limit < 150A Controller 5000W 300A peak 24 – 84vor 5000watt
PRICE PER 1SET : Servovision introduce BLDC PMSM IPS motor with Gear Built in reduction ratio 2.35 with strong output spline shaft hardened installed with sprocket model 428 number of Teeth 14Teeth at output
motor gear installed with Sprocket model 428 have a popular sprocket among motorcycle in the market
This brushless motor installed built in the internal gear ratio 2.35 thus make a huge output torque at driver sprocket14T deliver massive torque at starting until max speed it can deliver higher max speed with no compromised torque at high speed as well below show output at any voltage
Power 3000 watt Rate Power at 72 – 84 Vdc Batt peak 14000watt
Max Torque 121.5 – 130 N.m at output Gear Ratio 2.35
Max Speed at output gear 1700 RPM
Power 3500 watt Rated Power at 96 Vdc Batt peak 14000watt
Max Torque 140 N.m at output Gear Ratio 2.35
Max Speed at output gear 2100 RPM
User Now can calculate max linear speed and torque output Motor design with cooling fin Optional :

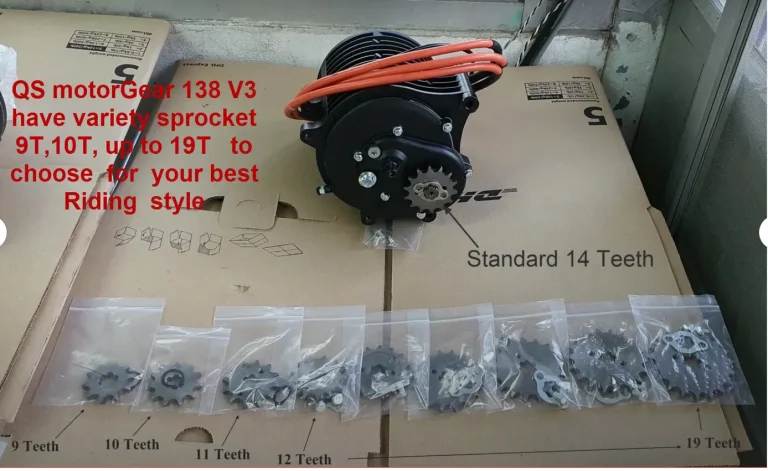

- Sprocket 420 13 or 14 teeth ,or other teeth , Extra cost = 48 usd.
