electric inboard water cool plus Fan coo 10Kw 72V-96V max.

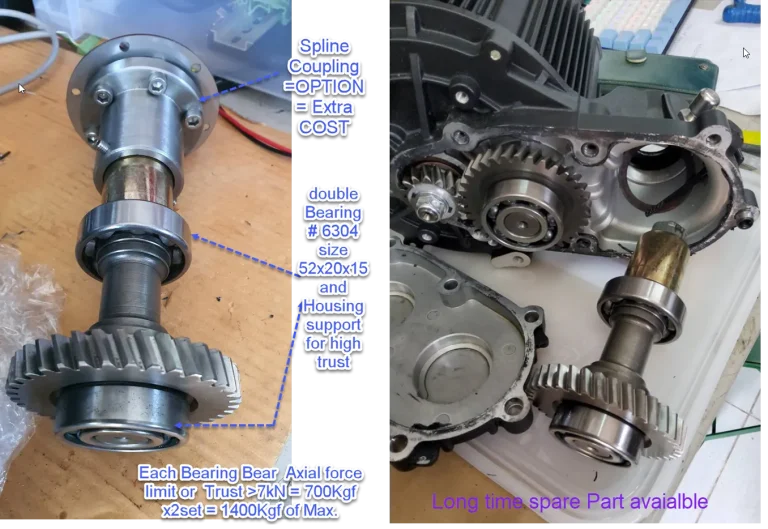

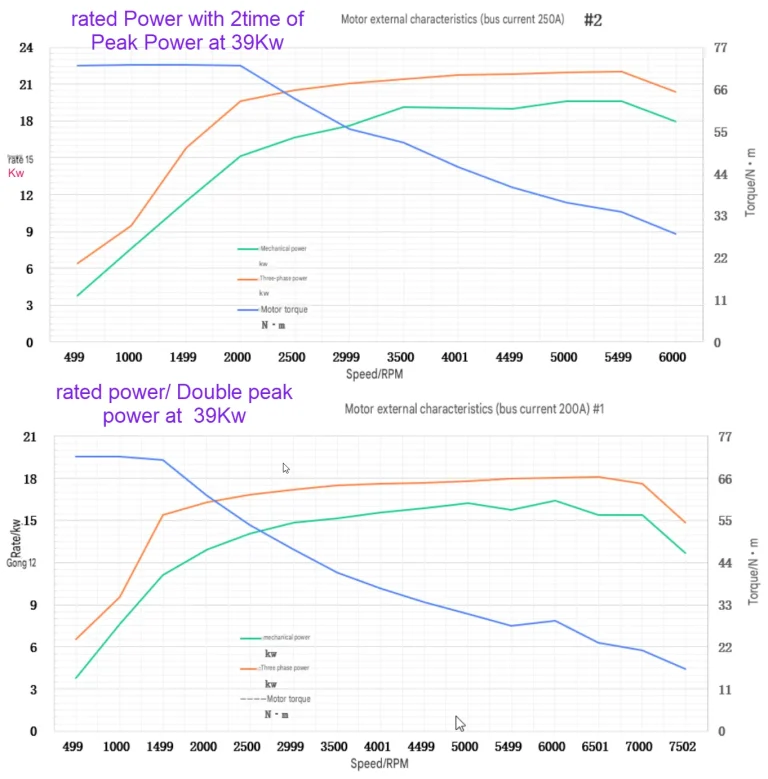

Electric inboard pmsm motorGEAR with internal double Bearing bear high trust or axial force 700Kgf-1400Kgf from drive shaft and Prop. With Fardrive controller can be operated for 72V or 96V Rated power 10-15Kw peak power 30-39Kw see performance curve

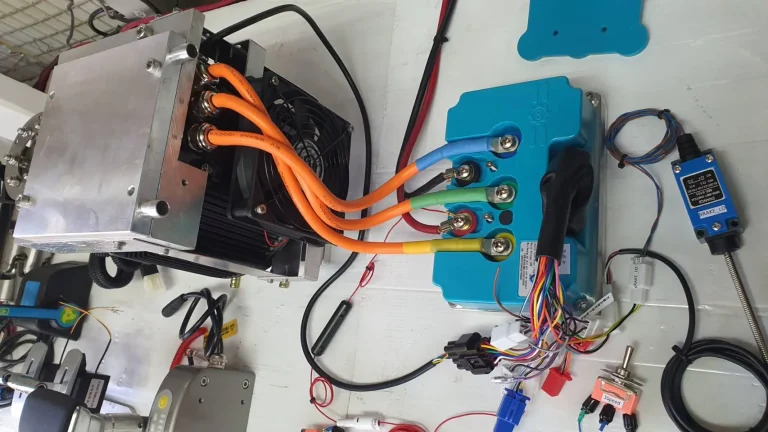

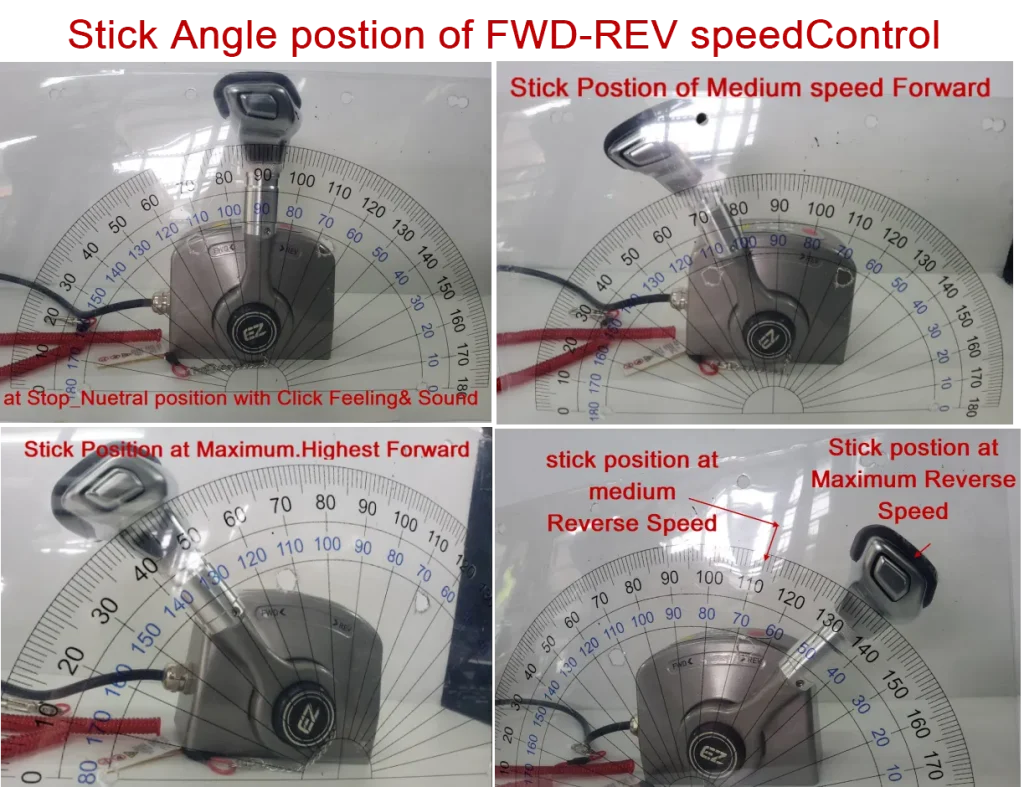

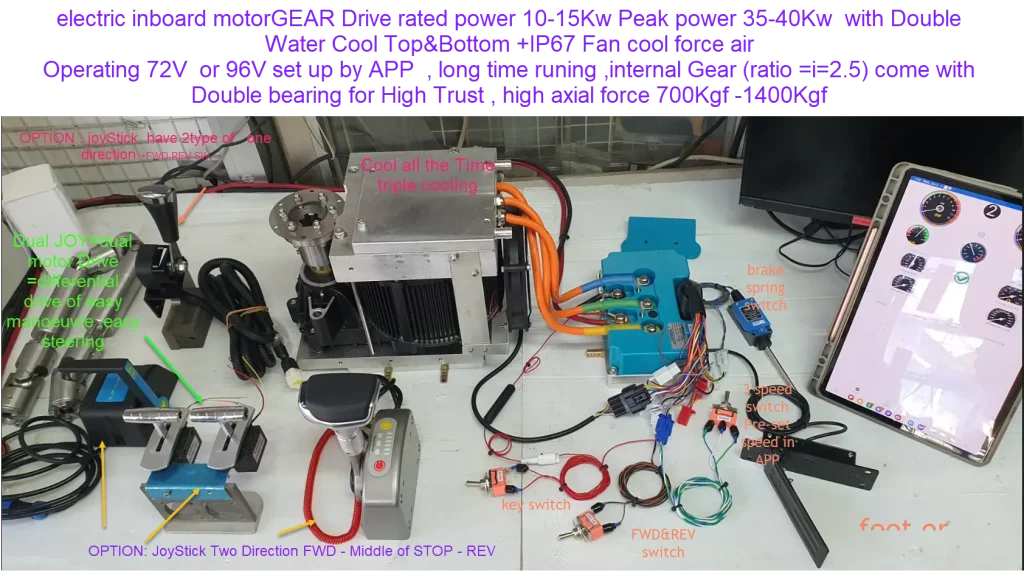

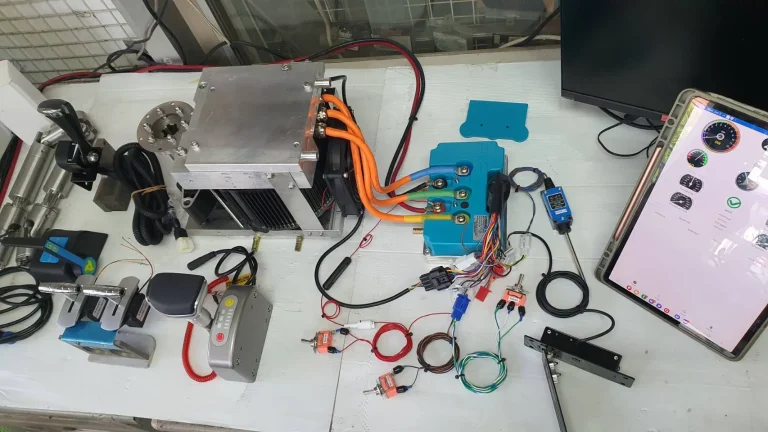

Kit standard come with hand or foot throttle key switch FWD&REV switch Brake spring switch 3 speed pre-set switch all connector cable are water proof controller can monitor or set up more by android or iOS APP but can run without APP also.

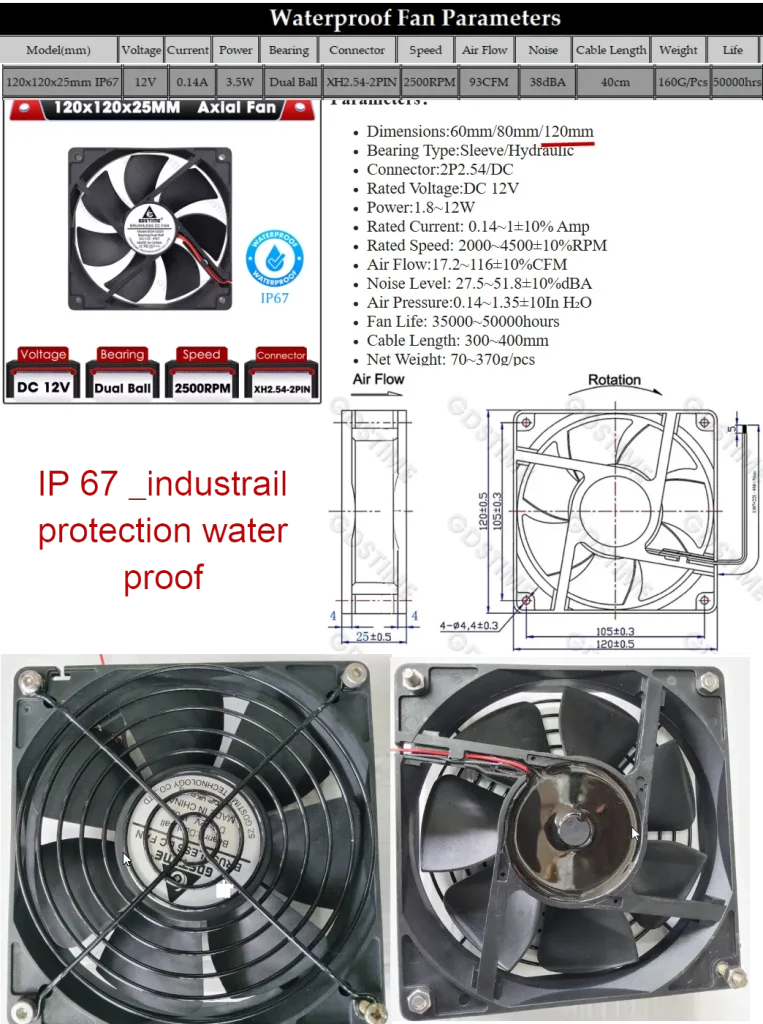

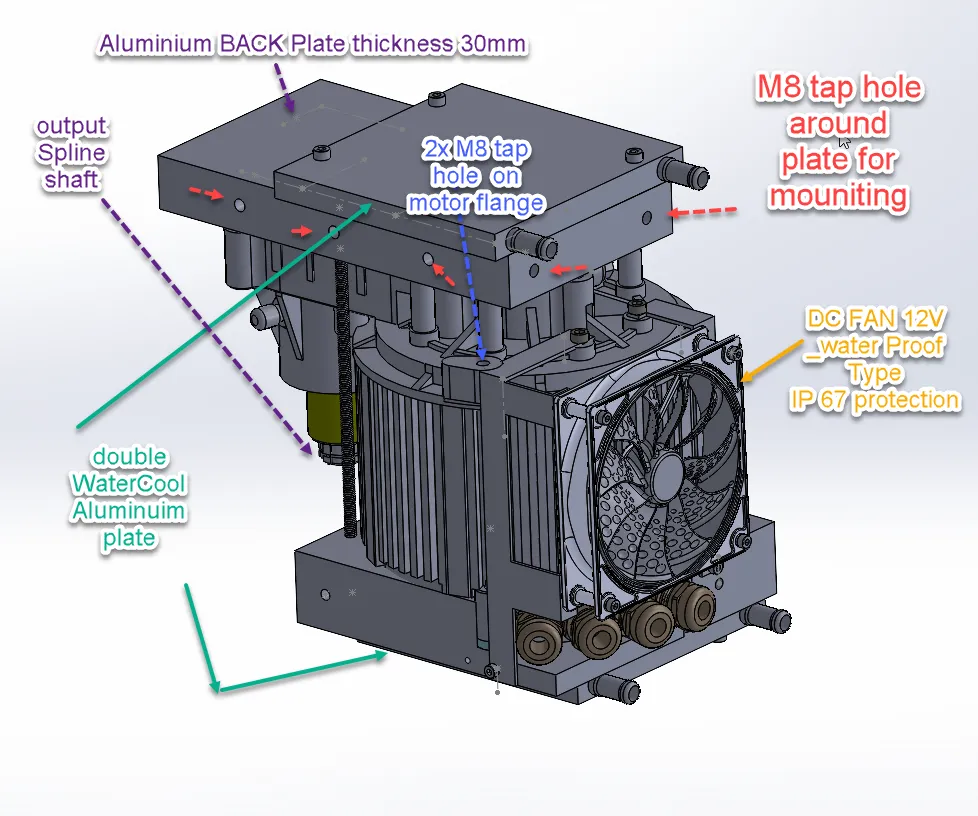

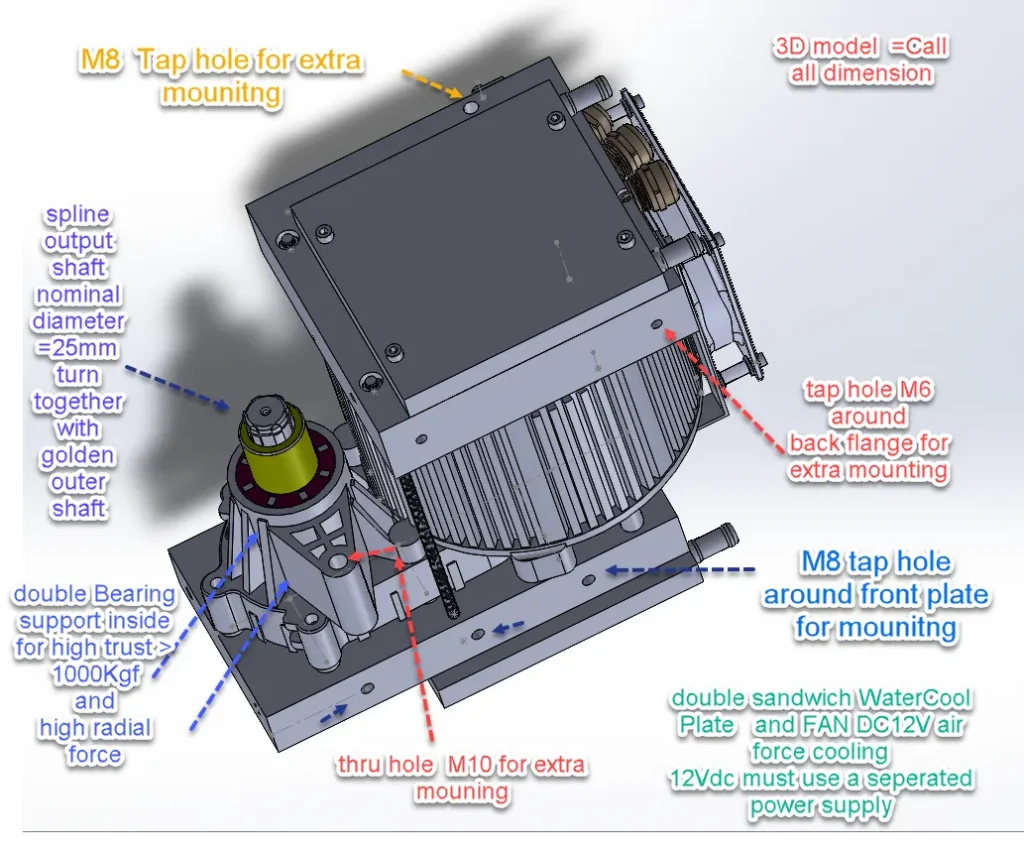

Double sandwich water cool with air force fan cool (IP67 protection Fan of water proof) with best heat dissipation let system able to run for very long time endurance flange provide large tap hole around edge for easy installation

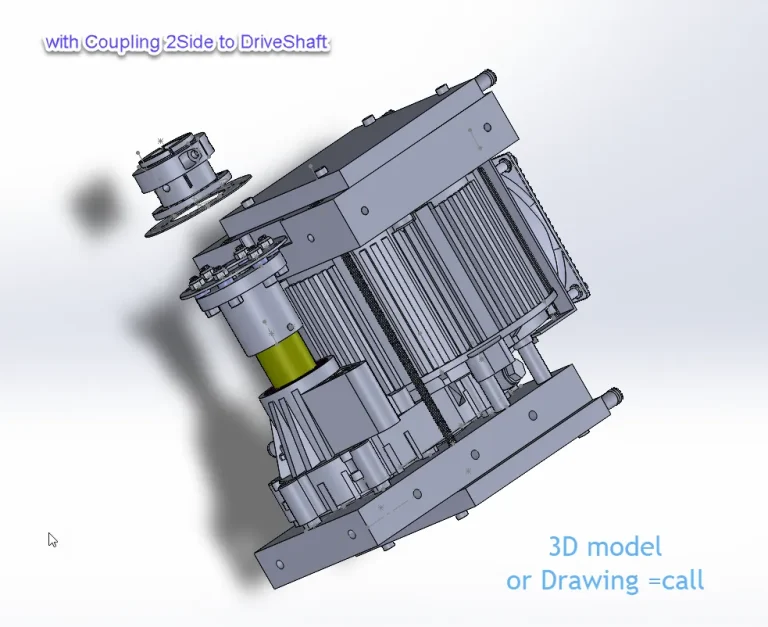

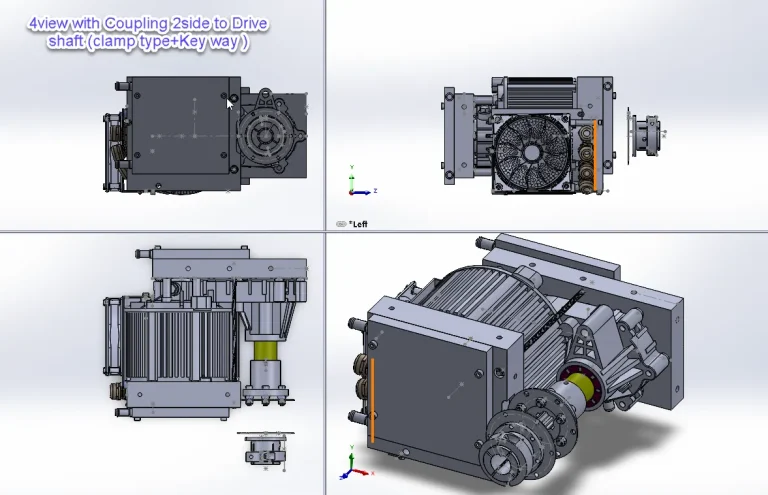

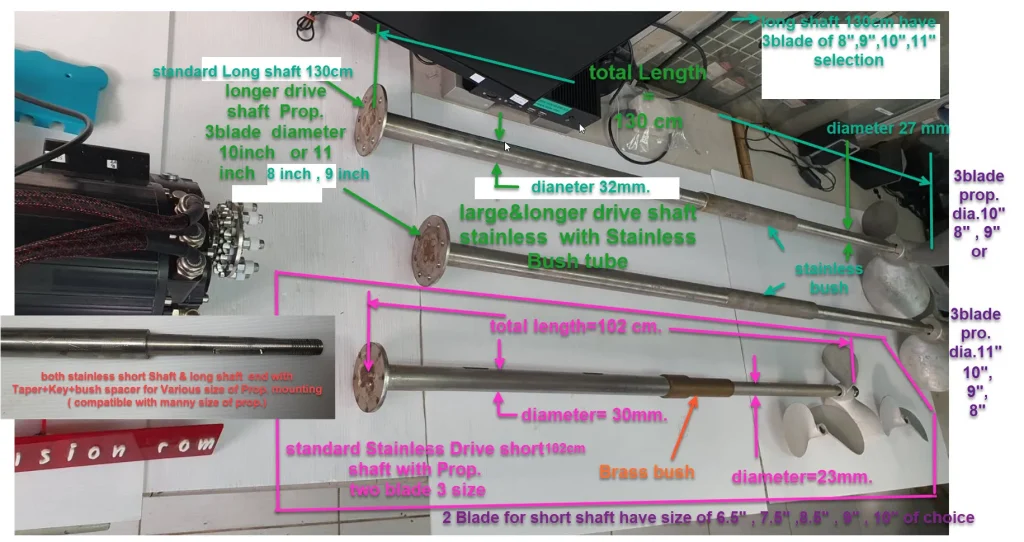

Output shaft can be customized to user existing drive shaft or OPTION for our drive shaft & Prop. See photo attached

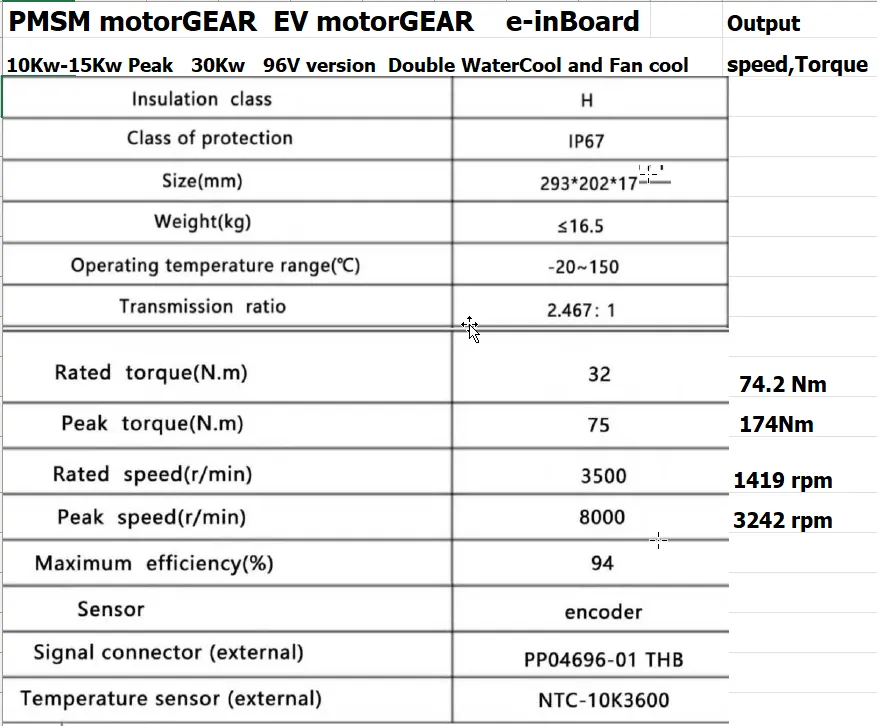

Helical gear and reduction ratio 2.5:1 deliver high massive output torque at rated 40-50Nm. As double waterCool and Fan Peak Torque at 77Nm. At output speed motor up to 7000 rpm with suitable speed for medium to large prop. In the market

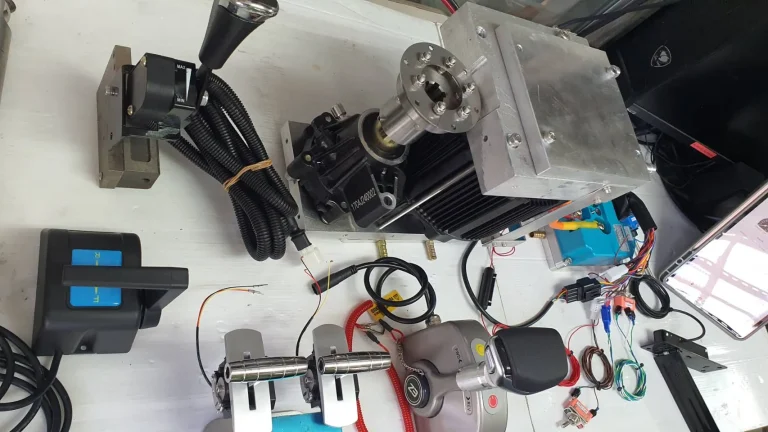

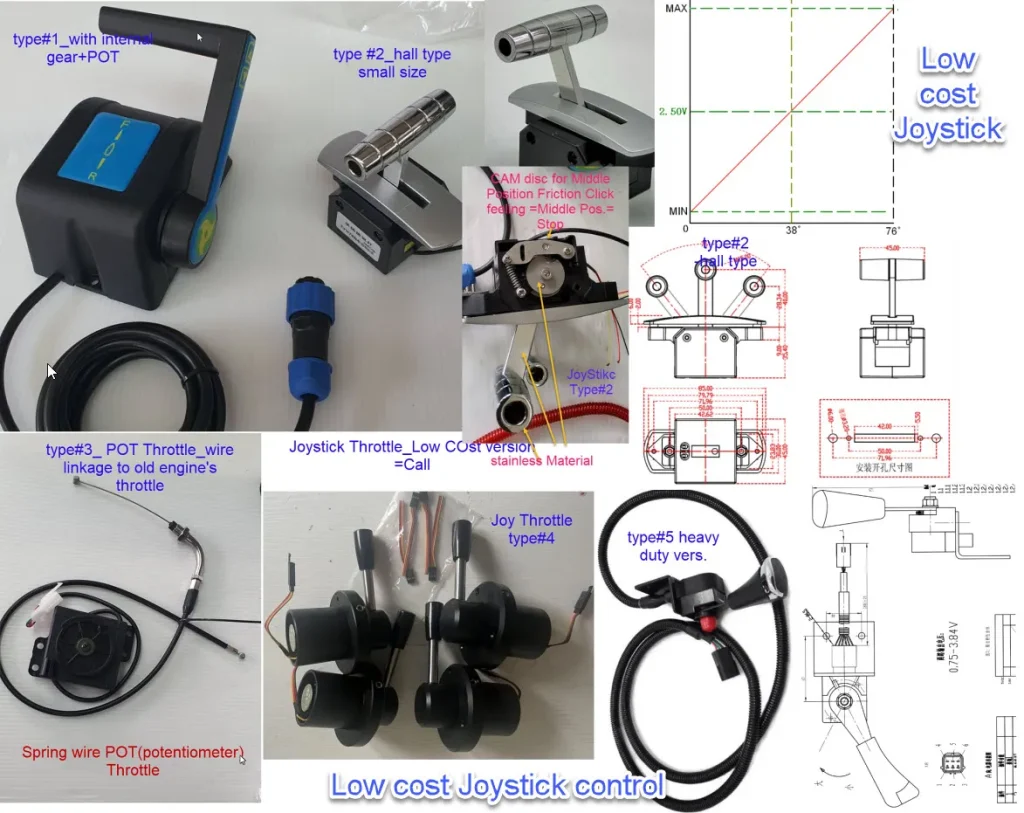

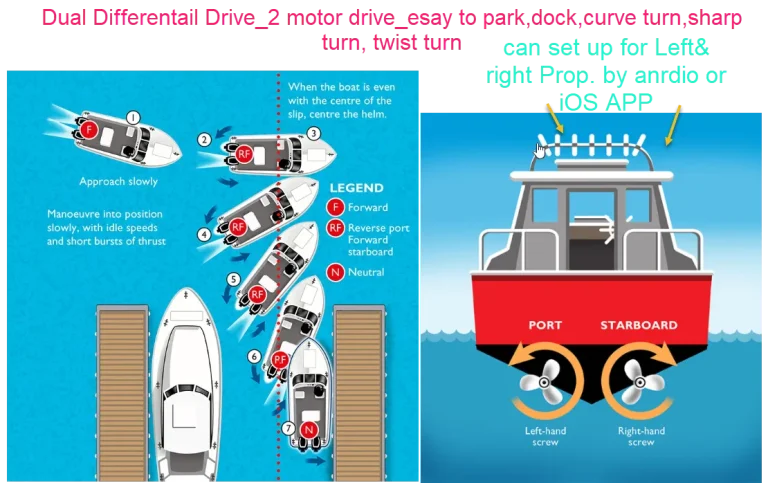

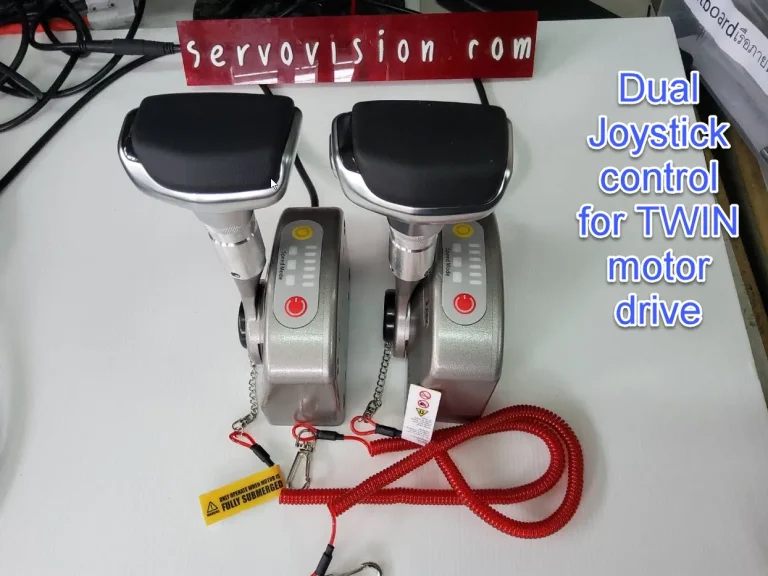

OPTION : Two Joystick or dual drive for Differential drive will let user easy operating electric boat easy park dock easy manoeuvre into position with idle speed short burst of trust short curve turn or twist turn

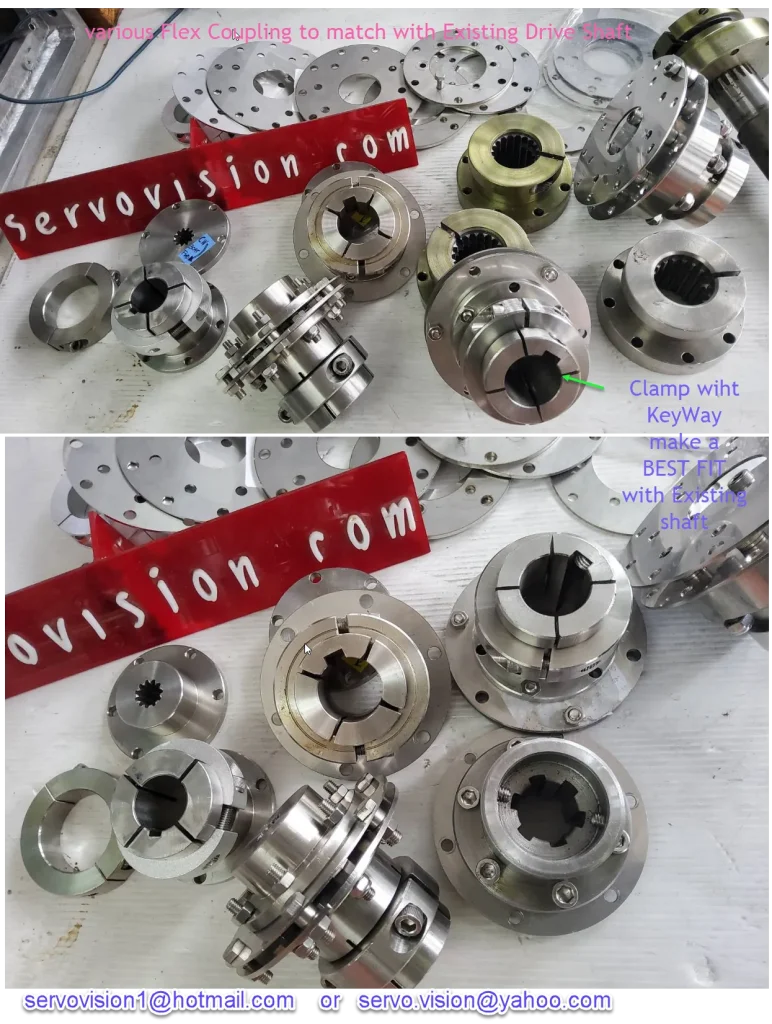

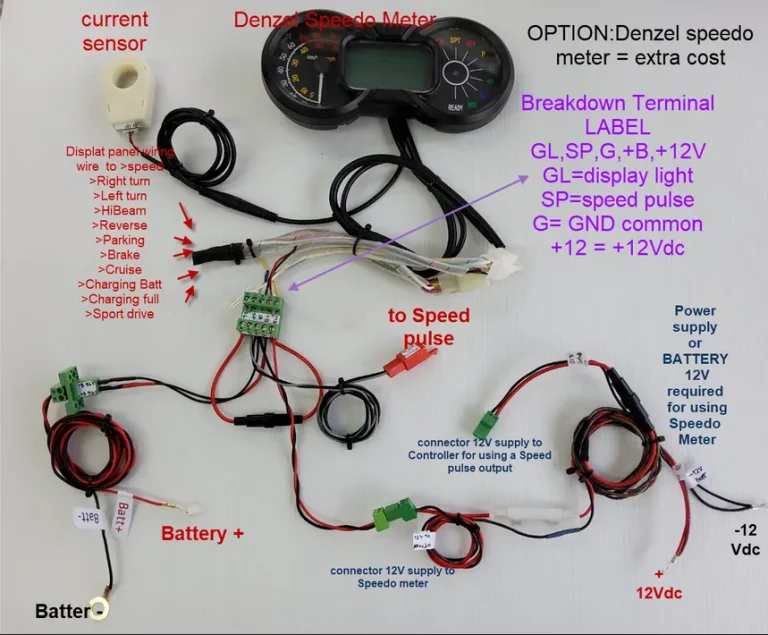

OPTION of Speedo meter customized-Flex Coupling JoyStick _ call
