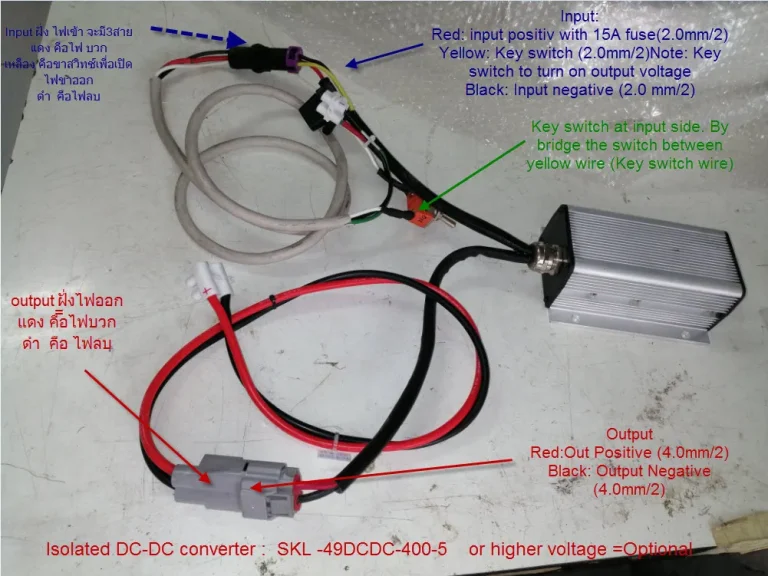

DC-DC Converter DC 48V to 72V or 18V to 165Vdc to 13.8Vdc or 12Vdc : SKL 49 DCDC- 400-5
2.Features
- No arc•Can be controlled by key switch directly, no need of external relay•Over temperature protection, shut down at 90°C
- Over current protection
- Low voltage protection: stop working at low battery voltage•High efficiency with compact size and light case
- Low standby current: ≤5mA
- Isolate between input and output
- The matching wire harness will come with each DC/DCconverter•IP66 protection
Compatible with Kelly

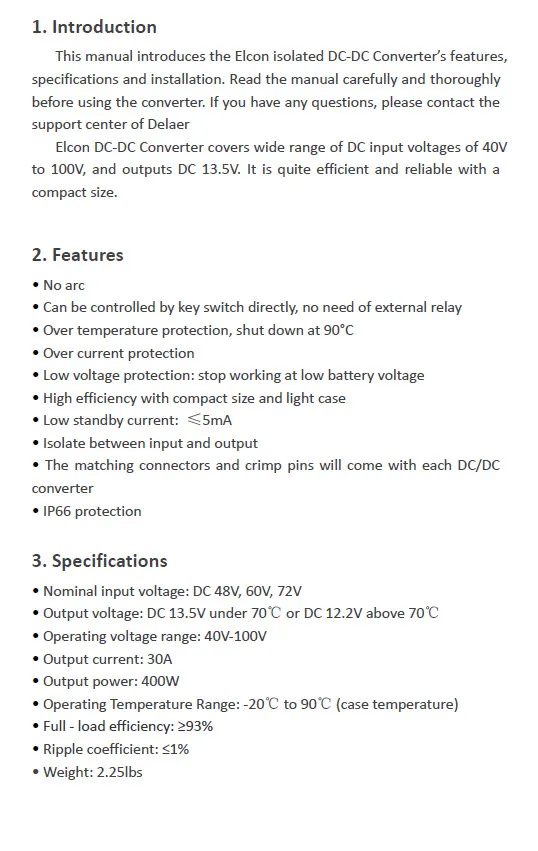

3.Specifications
- Nominal input voltage: DC 48V, 60V, 72V•Output voltage: DC 13.5V under 70℃ or DC 12.2V above 70℃•Operating voltage range: 40V-100V•Output current: 30A
- Output power: 400W
- Operating Temperature Range: -20℃ to 90℃ (case temperature)
- Full – load efficiency: ≥93%
- Ripple coefficient: ≤1%
- Weight: 2.25lbs

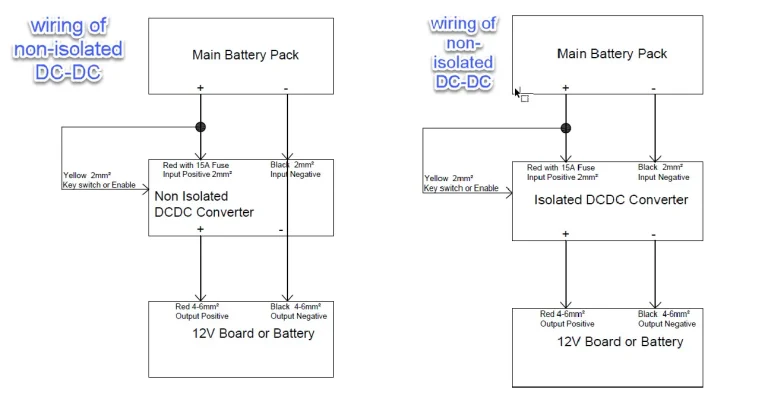

DC to DC converter isolated or non-isolated type wider range 18-165Vdc to 13.8V or 12Vdc
