EZ Kontrol EZ controller BLDC or PMSM motor controller (Field Oriented Control) series The flagship “E” series is capable of delivering up to 40KWs of power at a maximum of 240V(dc) or 2000 Amps. efficiency blends with innovation, and every journey becomes an eco-friendly adventure. We're excited to introduce the EZ Outboards – a leap forward in electric propulsion technology, meticulously crafted for your small boat. EZ Outboards is more than just an outboard motor; it's a testament to advanced marine engineering designed to revolutionize your time on the water. Key Features of the EZ outboards: • Direct Drive Underwater Gearless Motor: For quiet, efficient propulsion. • Hermetic Seal: Total protection from water leakage, ensuring long-term durability. • Contactless Electro-Magnetic Transmission: High-efficiency power transfer with reduced wear. • Modular Design: Simplistic and user-friendly for quick installation and maintenance. • Sinewave Control: Smooth acceleration and handling. • Lightweight and Portable: Easy to transport, ideal for recreational and professional use. • Super Durability: Designed for the rigors of commercial applications.

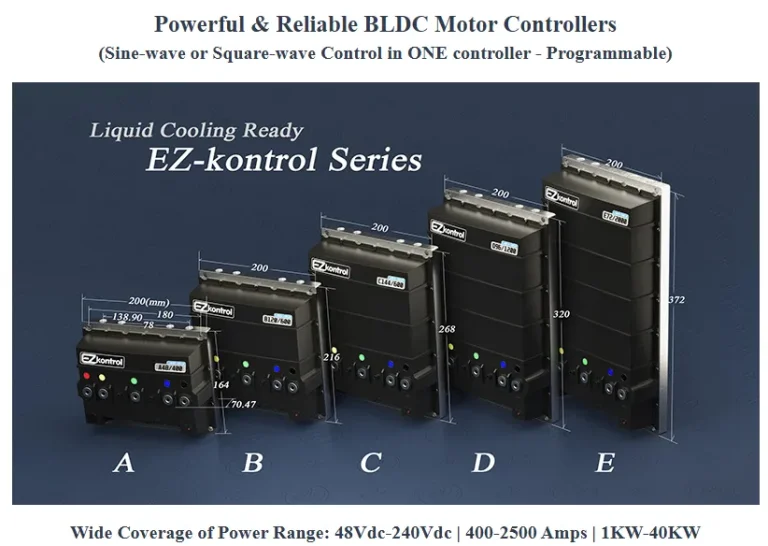

Wide Coverage of Power Range: 48Vdc-240Vdc | 400-2500 Amps | 1KW-40KW
Are you looking for a cutting-edge solution to enhance the performance and efficiency of your brushless DC (BLDC) motors? Look no further! We are proud to introduce our latest innovation – the High-Performance BLDC Sinewave Controller, a comprehensive motor control solution that will transform the way you manage your motor systems.
Our controller boasts an array of advanced features that make it the ideal choice for a wide range of applications, from electric vehicles to industrial automation. Here’s a glimpse of what our revolutionary BLDC Sinewave Controller has to offer:

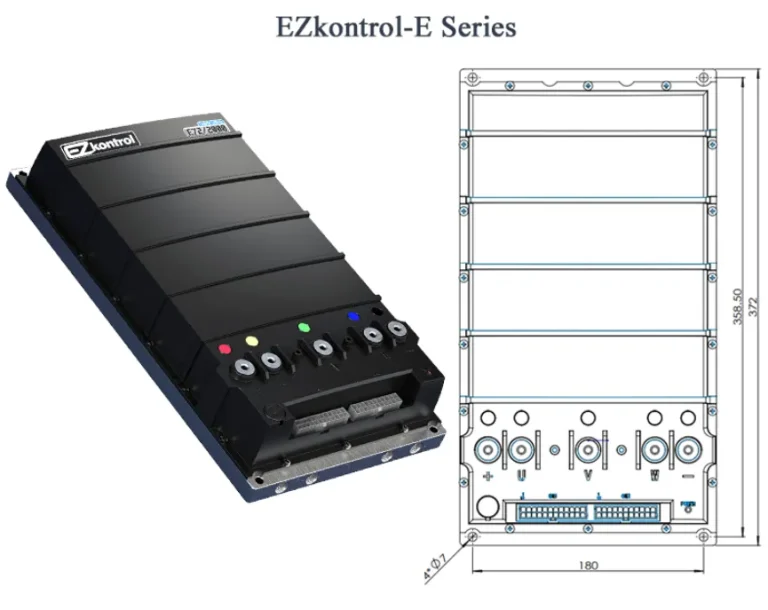

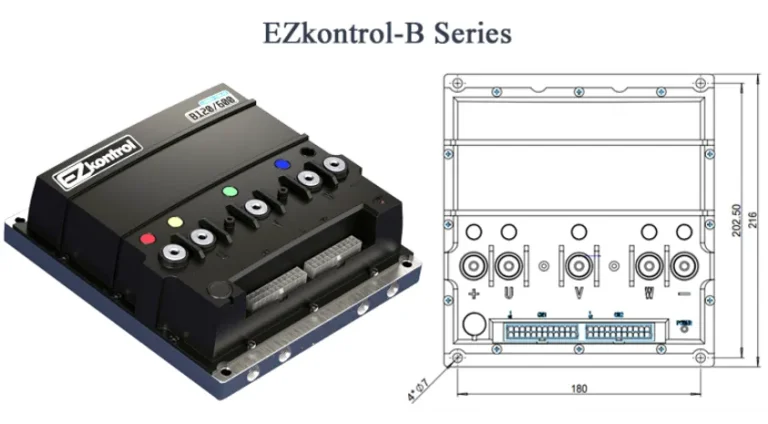

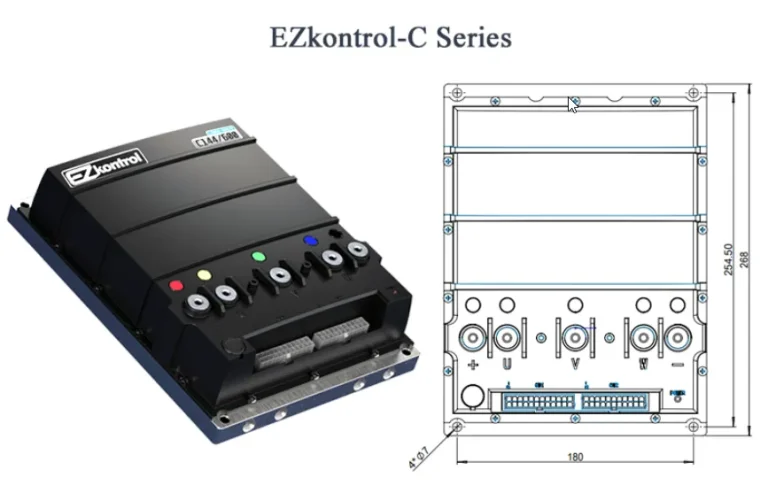

The EZkontrol BLDC motor controller (Field Oriented Control) series are finally here. The flagship “E” series is capable of delivering up to 40KWs of power at a maximum of 240V(dc) or 2000 Amps. You can always find suitable EZ controllers here to drive your brushless DC motors smoothly and efficiently, quick and easy! Modularized product design and effective production offers the best value for your money!
What lag?
Armed with powerful ARM 32-bit Cortex-M4 core processors, it will chew through vector control algorithms at lightning speed, delivering Real-Time torque, excitation, speed and power control as well as zero-delay monitoring functions via Bluetooth.
“Why won’t it spin?”

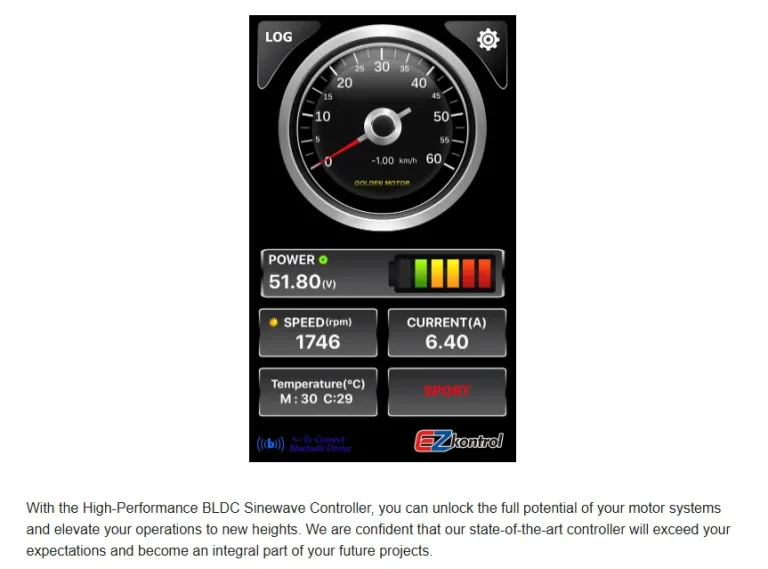

Gone are the days of a dedicated programming device, old USB cables and confused interfaces. The EZkontrol’s simple and intuitive automatic self-learning calibration of motor parameters allows you to get your motors up and running in no time…
… on your Mobile Phone!
… via built-in Bluetooth!
… on a floating App! (Download Android Version: EZ-Tune.apk v1.0.7 20250302 — Code safety checked!)
… obtained via QR code!
There are hundreds of programmable control parameters for you to play around and fine tune your drive system to satisfy your expectations!
Sine-Wave or Square-Wave Control? You can simply choose Sine Wave control or Square Wave control in the same EZ controller by specifying the control mode via App.
Get firmware updates online the same EZ way! It doesn’t get any EZ-ier than this! It fully supports OTA firmware upgrade via your smart phones.

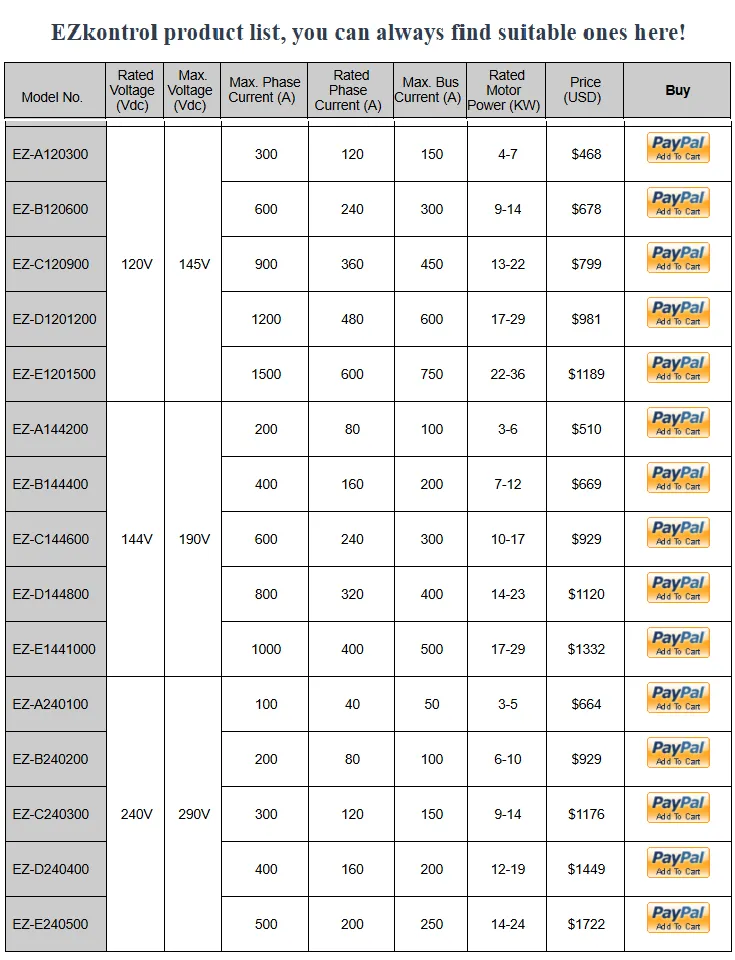

dealer price list of High power EZkontrol ,EZ controller , see below
Expandable Lithium Battery pack by using Junction box_parallel,see below
