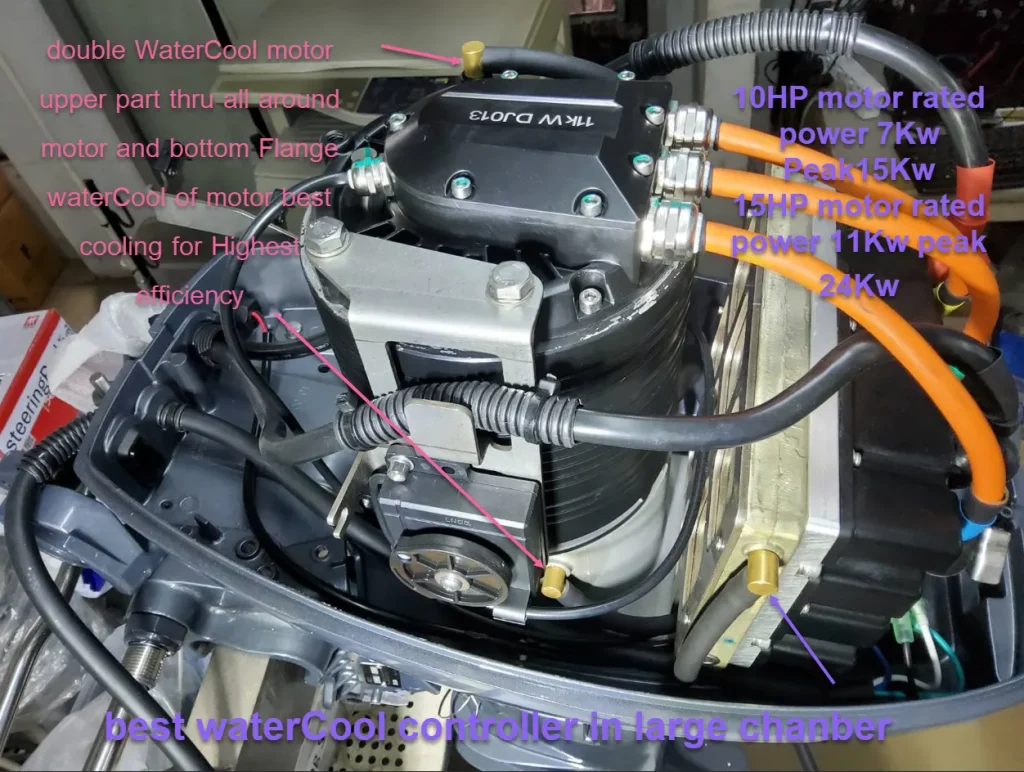

Electric outboard 10HP 72V high efficiency double waterCool motor at top waterCool path flow thru around motor body and to  bottom flange water chamber for best cooling  all alignment with all non rust material.

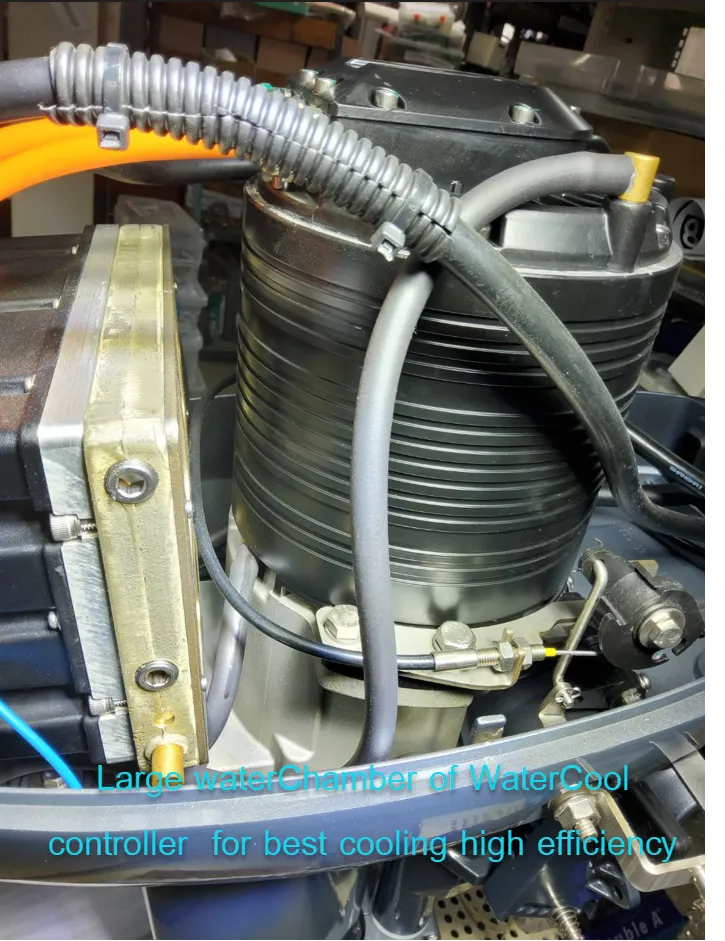

Controler fixed with large water Chamber for best cooling  with water pump original compatible with Yamaha it is heavy duty design  compatible Yamaha mechanics on model 63W  63V  T15 with mechanic gear shift  linkage to lower part

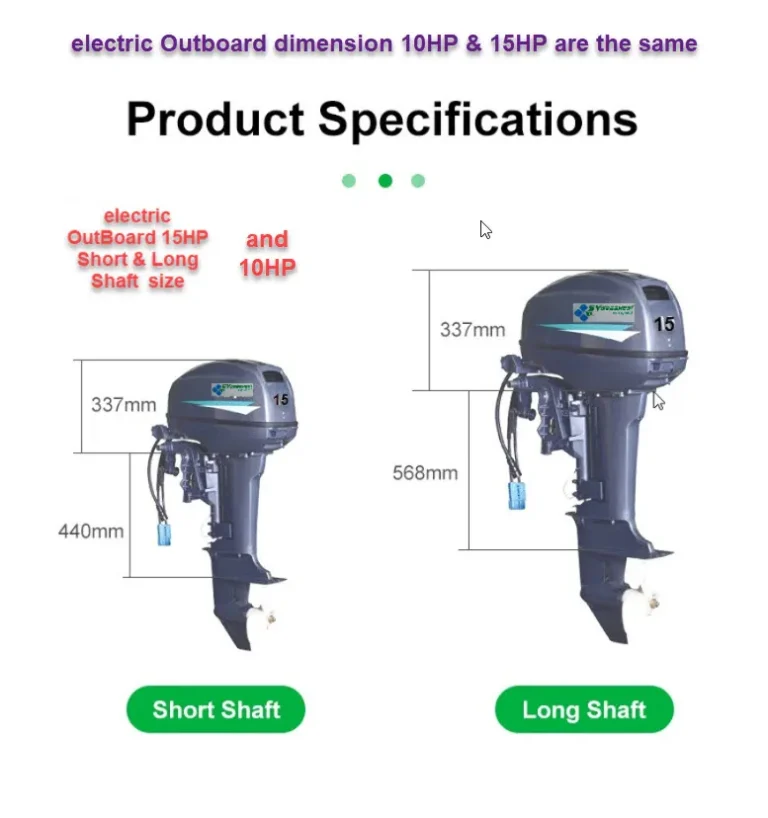

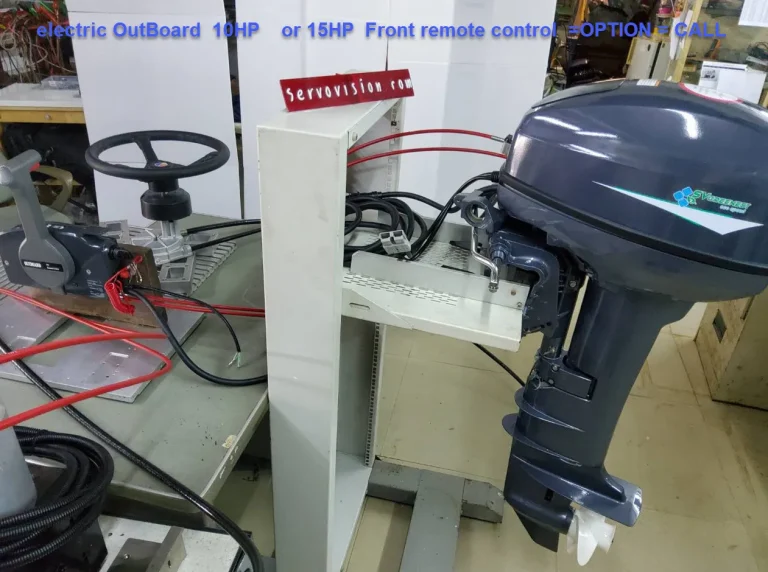

Electric outboard Tiller control rated power 10HP 72V Peak power 23Kw  Double waterCool of motor  and controller   High speed High torque with bottom gear ratio 2.1   avaialble for Short shaft or Long shaft

All parts non-rusted stainless steel ,alloy  best suit for salt    sea water fresh water  or  river

Kit come with High current Large copper battery wire cable  RED & BLACK to Anderson Plug & Jack 120A typed  Length 310 cm.  also come with coulomb meter ( Energy voltage-Amp current battery capacitor

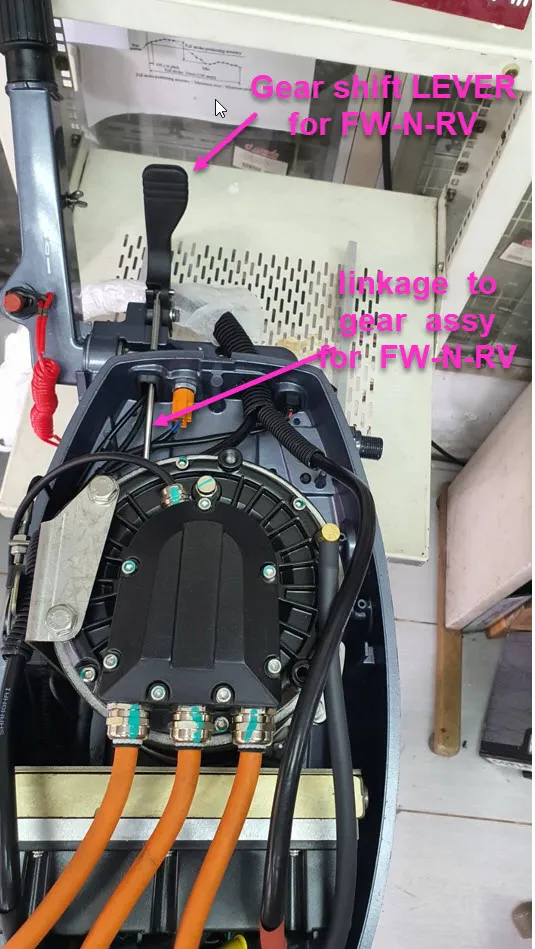

All mechanic 100% compatible with Yamaha model 63V  63W  T15   This model equipped with original Gear Shift mechanical  lever shift FWD-N-REV  So. All spare part available long time from us or in the market

kit use with nominal battery 72V in Range  of working voltage 63.5Vdc to 91.2Vdc

Standard Prop. Size : 9.3-10 inch  or OPTION : Larger _Call

Battery is not included   warranty 1 year in nomal working condition

Key switch  with LED  pilot lamp  for stand by running Showing operating functions and also Error blinking flash code ,see user manual  in attached  down load  all system very reliable using high end parts  motor special magnet  absolute sensor for highest efficiency
