HPM5000B BLDC PMSM motor 5Kw Peak 10Kw 48V 72V 96V 120V 2. Rated Power:3KW-7.5KW 3. Efficeincy: 91% 4. Peak Torque: 40Nm 5. Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V 6. Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v 7. Speed: 2000-6000rpm

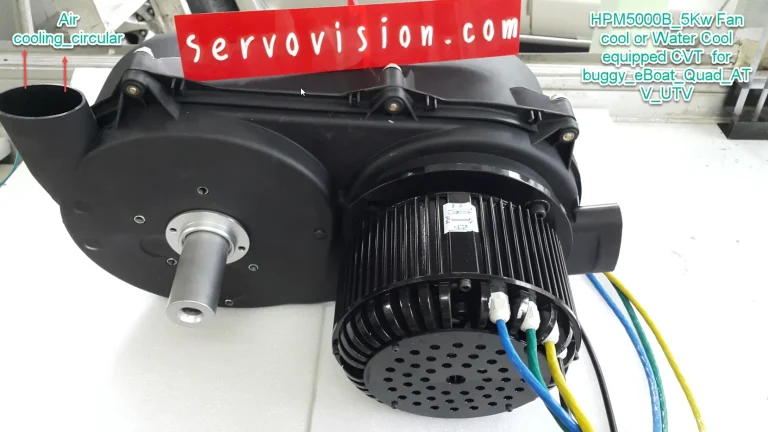

HPM5000B BLDC PMSM motor Fan Cool or Liquid Cool 5Kw Peak 10Kw 48V 72V 96V

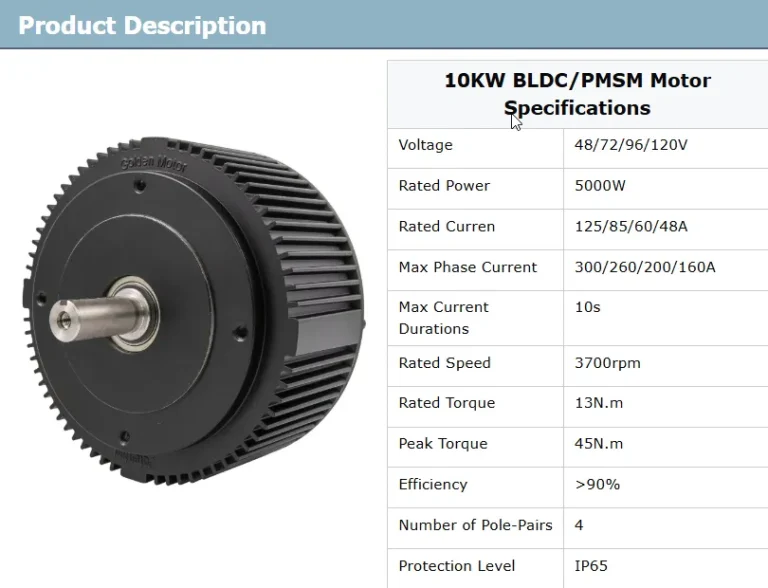

Model: HPM5000B — High Power BLDC/PMSM Motor
1. Voltage:48V/72V/96V/120V
2. Rated Power:3KW-7.5KW
3. Efficeincy: 91%
4. Peak Torque: 40Nm
5. Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
6. Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v
7. Speed: 2000-6000rpm (customizable)
8. Weight:11Kg(air),11.35kg(water);
9. Casing: Aluminium

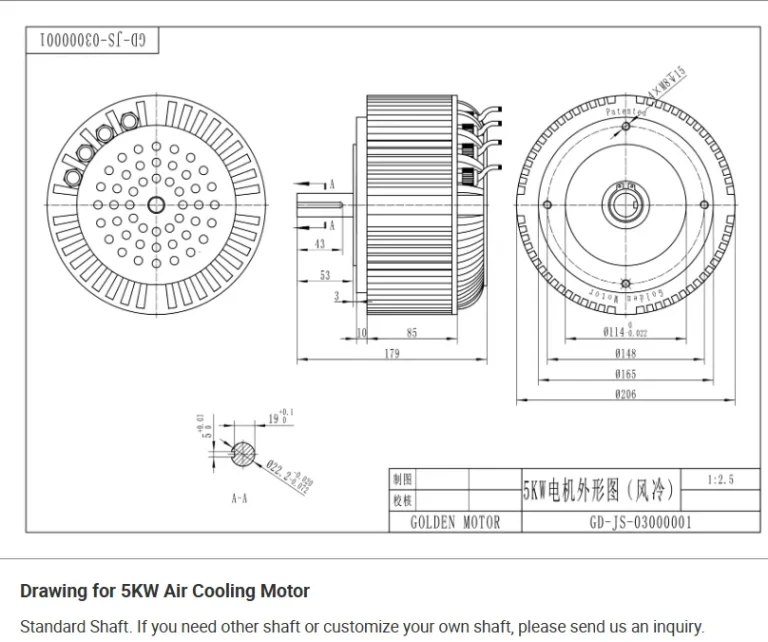

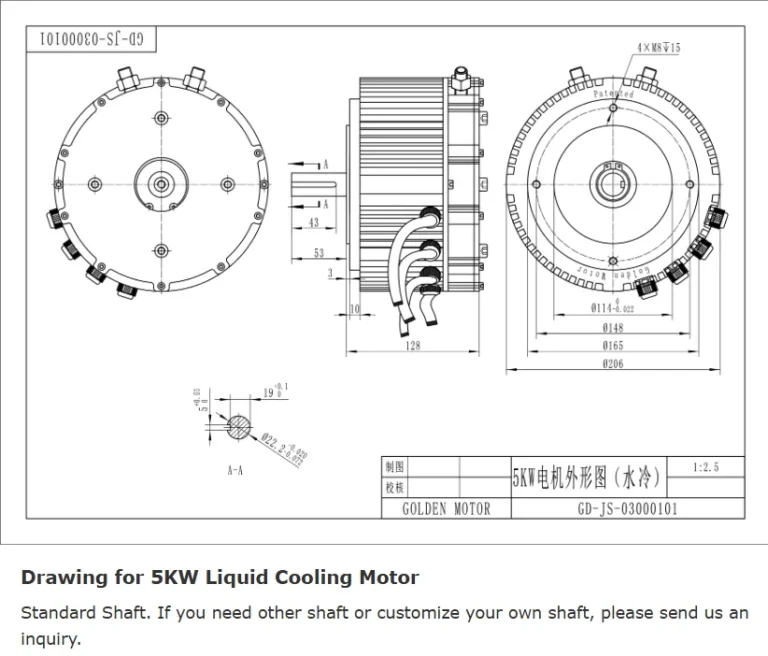

10. Length (height): 126mm Diameter: 206mm
11. Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
12. Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
13. Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
