MPPT solar,hybrid charger ,MPPT-sea_industrial protection grade IP68_Max.240v_30A :PV,SolarPanel,Turbine ,wind generator,Fuel cell, hybrid power , Any various Power go to input MPPT charger maximum open circuit input voltage0-230Vdc max. input voltage permission 240Vdc, charging to any battery type Auto Detect Battery type 12V to 96V nominal voltage up to 115V Max. voltage of Battery system charging current 30A as standard work in Tough environment , sea breeze , high humidity ruggedize task ,Sea or raining environment .
Input Power source can connect in Parallel , Output charging Port can connect in Parallel for higher Power Energy system in Tought environment , ruggedize task
OPTION 60A , 120A or higher input voltage 400-600V=call

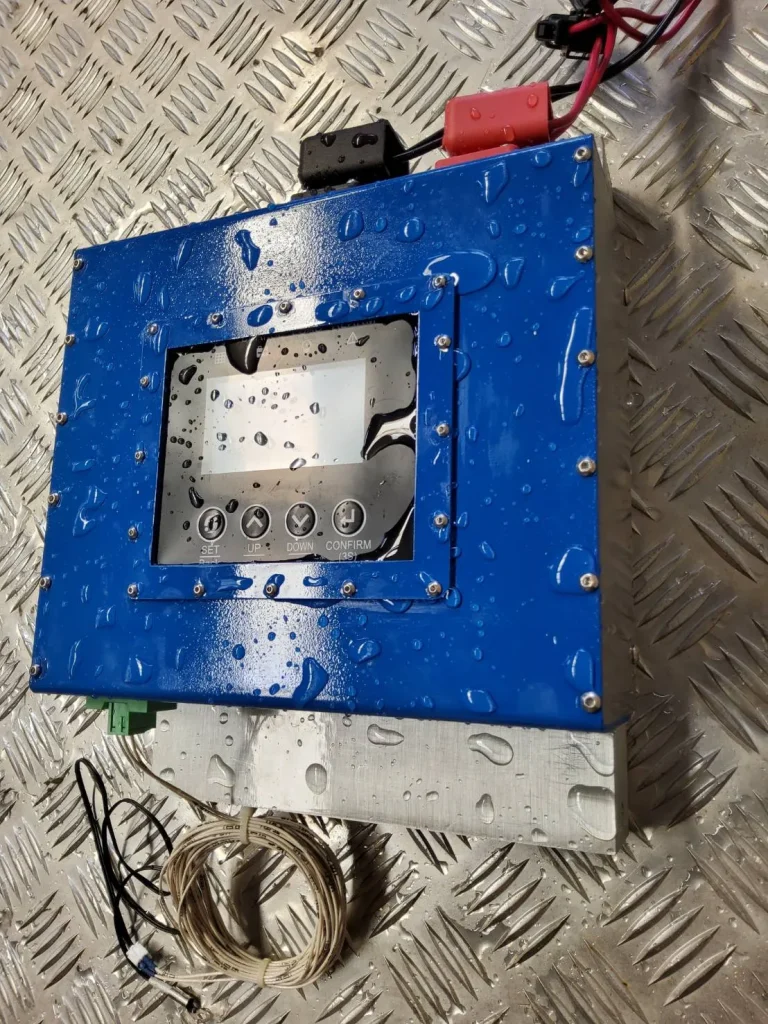

Full protection IP68 salt,sea vapour , moisture tough environment resistance
Innovative maximum power point tracking technology, which can significantly improve the energy utilization rate of the solar system, and the conversion efficiency is as high as 97%;
Quickly scan the entire I-V curve, and efficiently track the maximum power point;
Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series charging programs are optional;
With automatic protection functions for overcharge, overdischarge, overload and short circuit;
