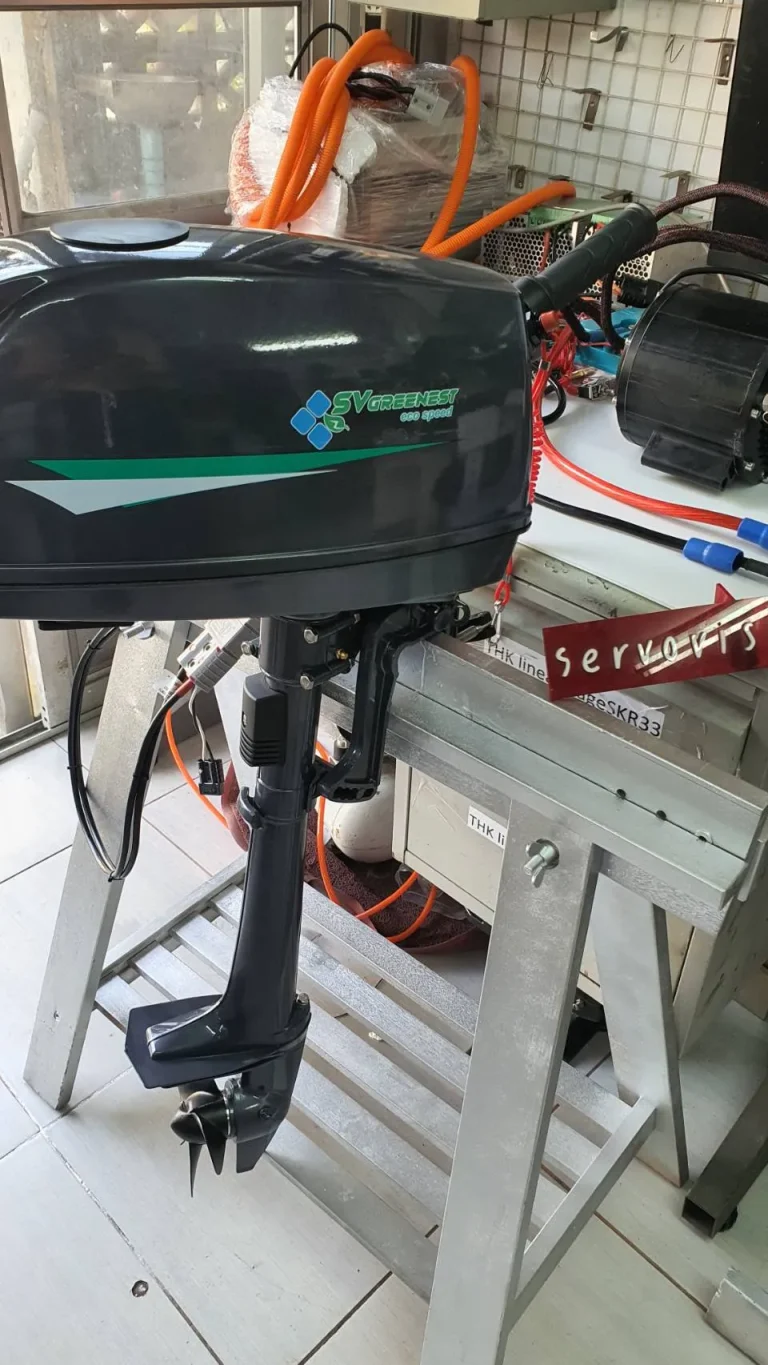

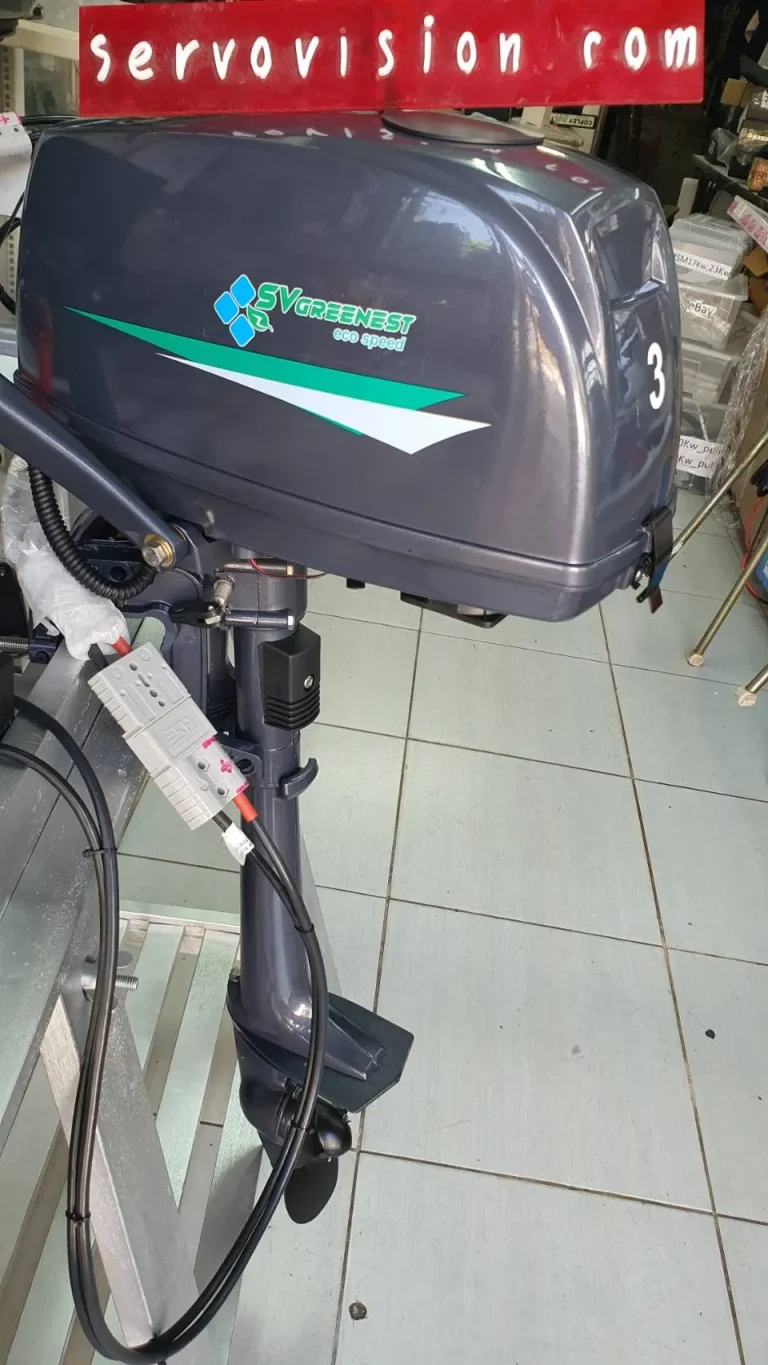

electric Outboard 3HP 48V compact size heavy use rugedized design
electric outboard motor 48V 3HP rated power 2000W Peak 4000w_come with Energy CoulombMeter

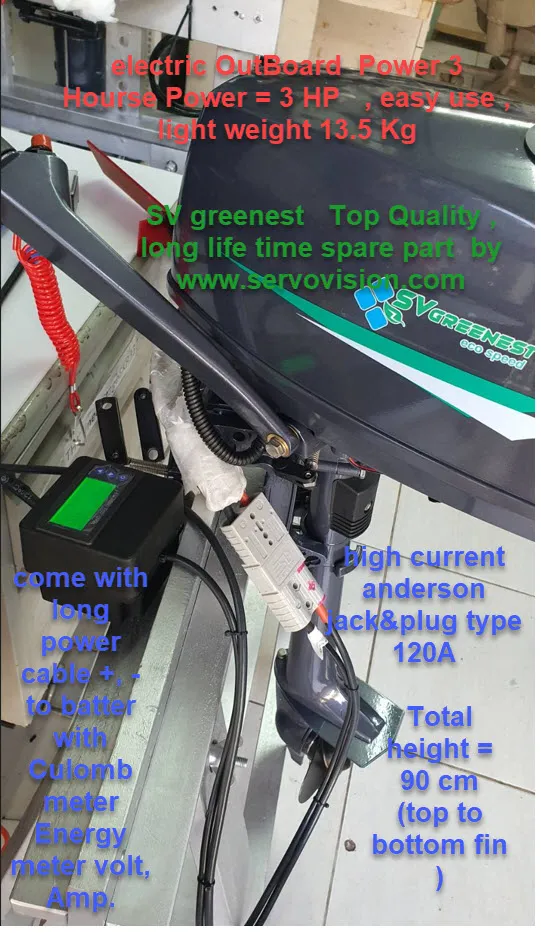

with long Length High current cable to Coulomb meter showing batt capacity , volt , current + Anderson connector Jack&Plug type 120A
3 HP = 3 hourse power , peak 4000 watt 48V , no Reverse switch
use with Battery 42V -56Vdc

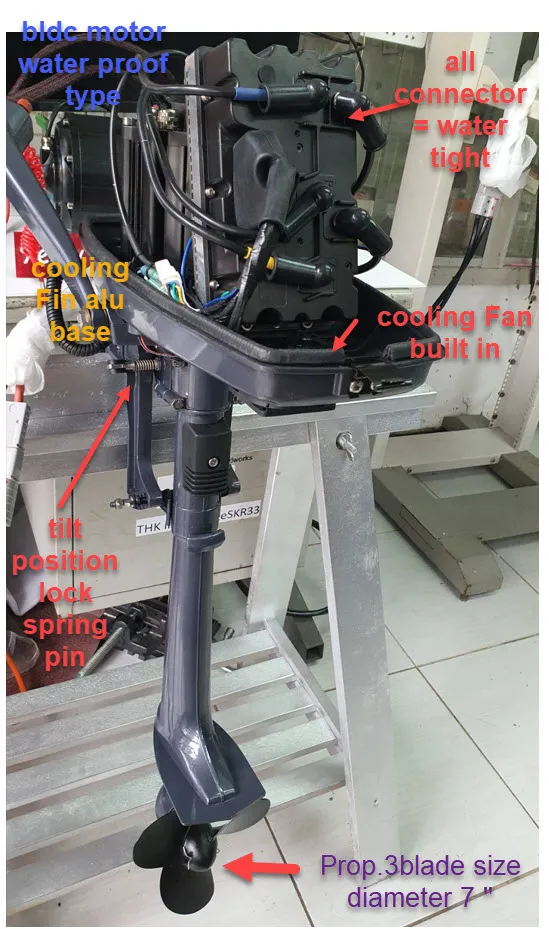

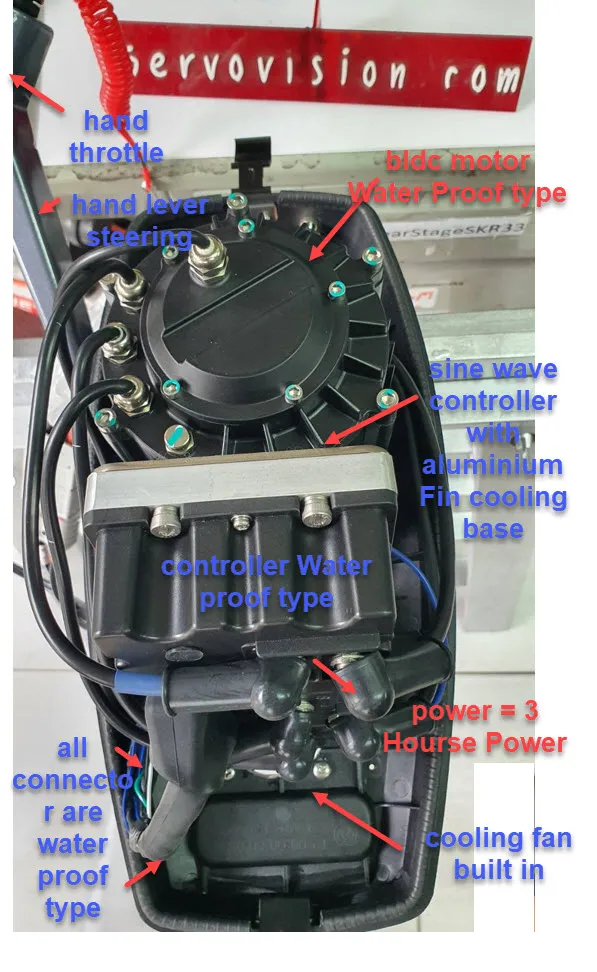

biult in Cooling FAN , start-stop switch , LED indicator showing operting function and Error , see operation manual
spare part long life time vailable.

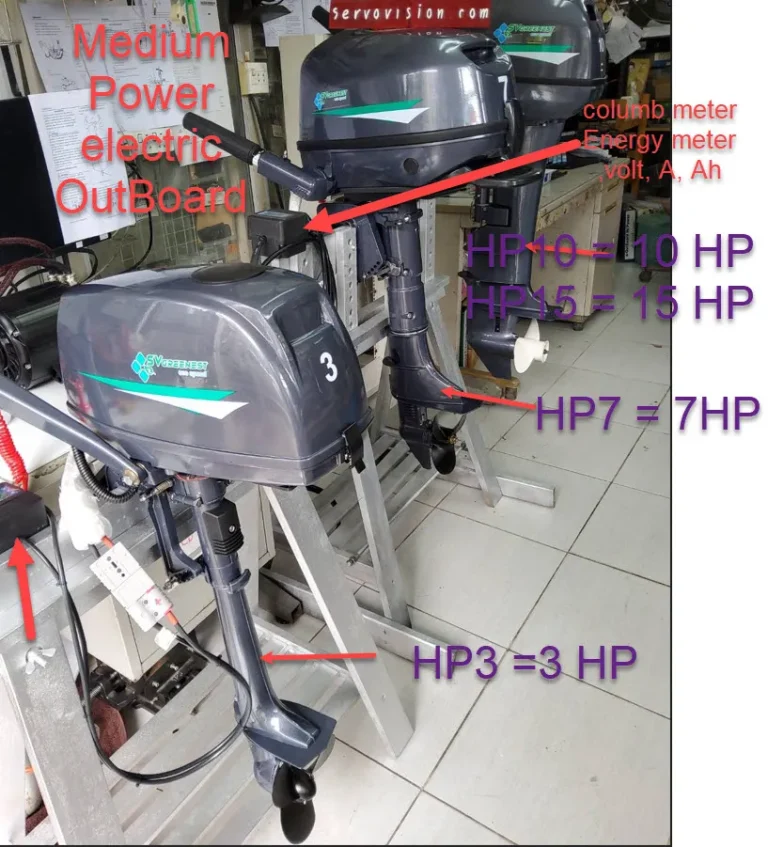

REMARK : WE also have electric OutBoard other model higher power line up 3HP 5HP 7HP 10HP 15HP 20HP in our Store = CALL
SV greenest electric outboard 3HP 48V is any zero-emission motor ruggedized design all parts are non-rusted material heavy duty e-engine
all mechanic compatible with Yamaha outboard especially lower assy and all mechanic gear shift assy.

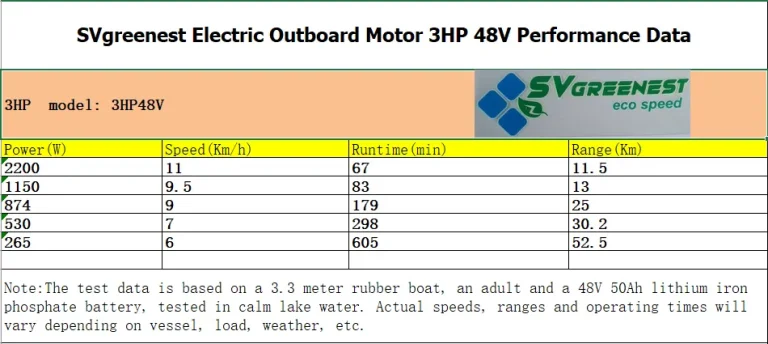

3HP continueous power rating deliver output trust equivalent or more comparing to 3HP engine type

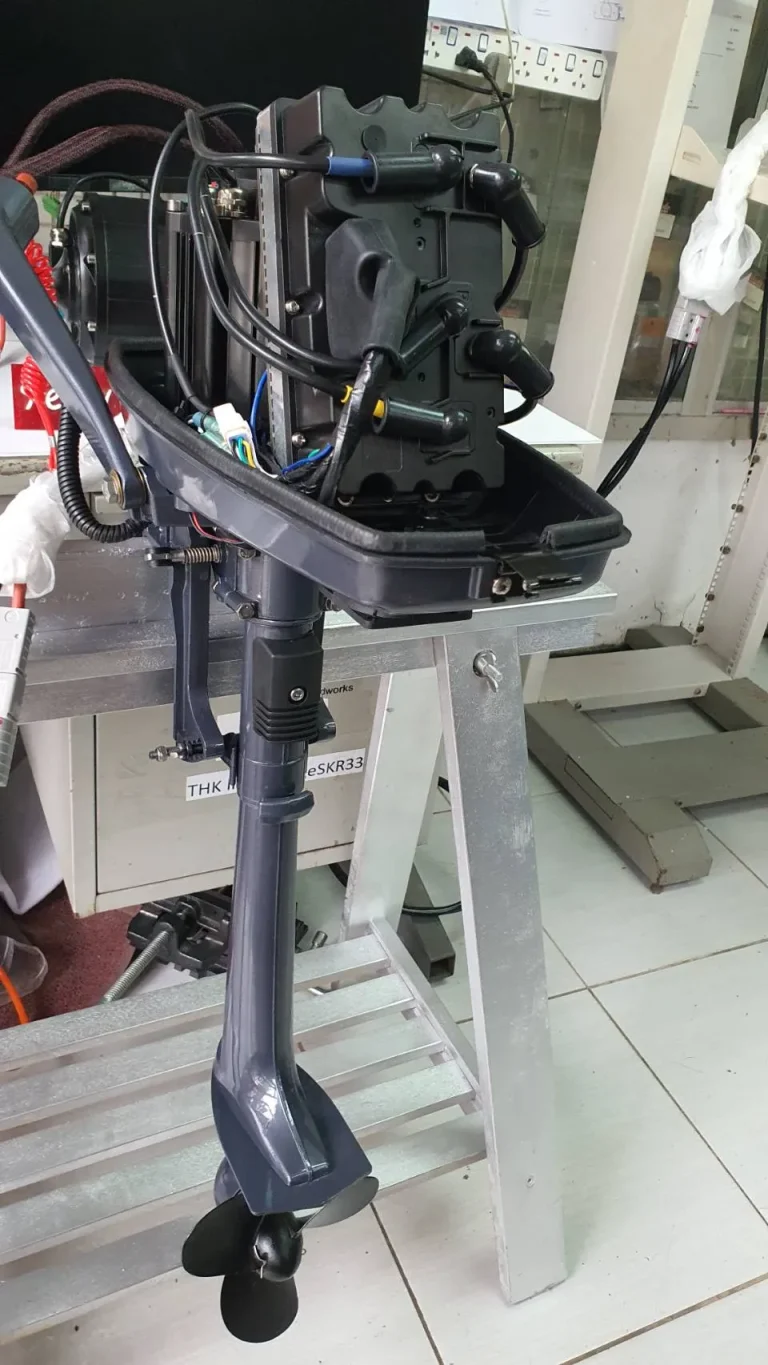

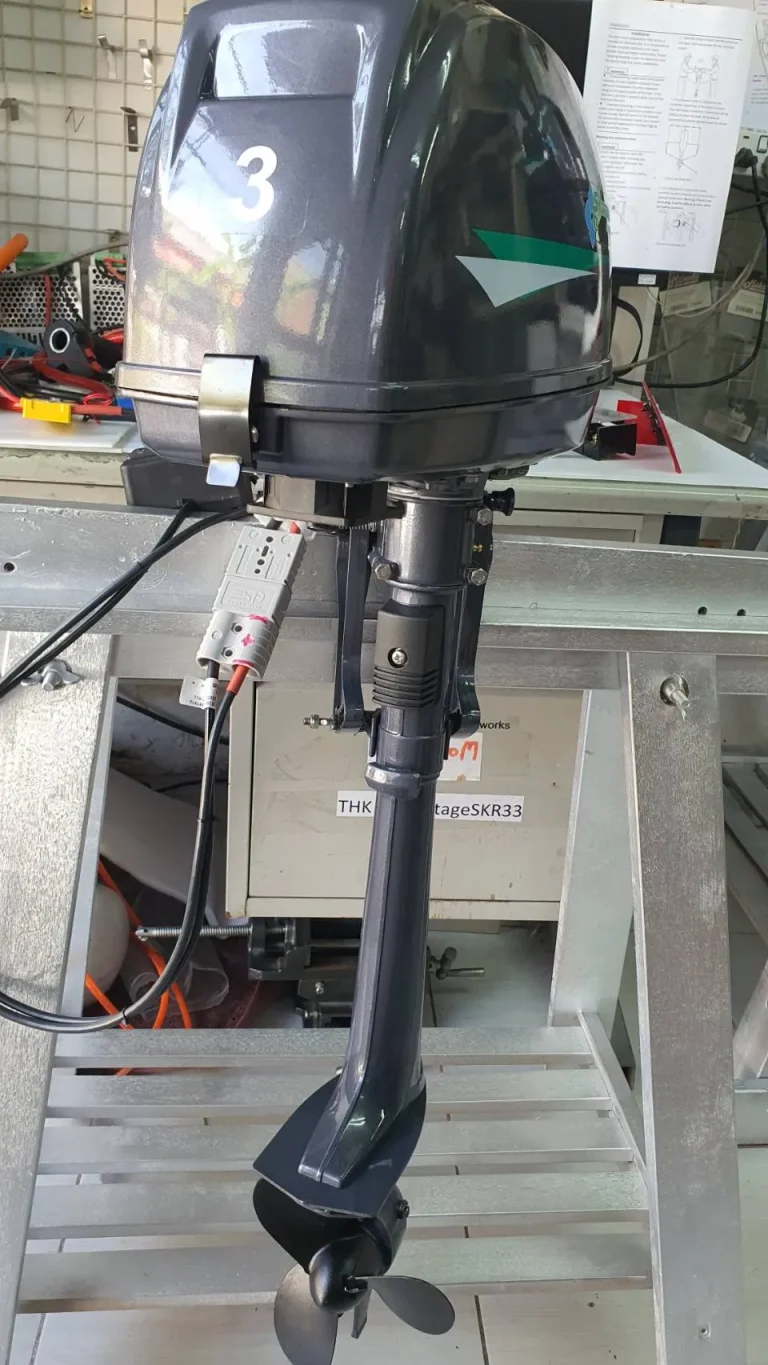

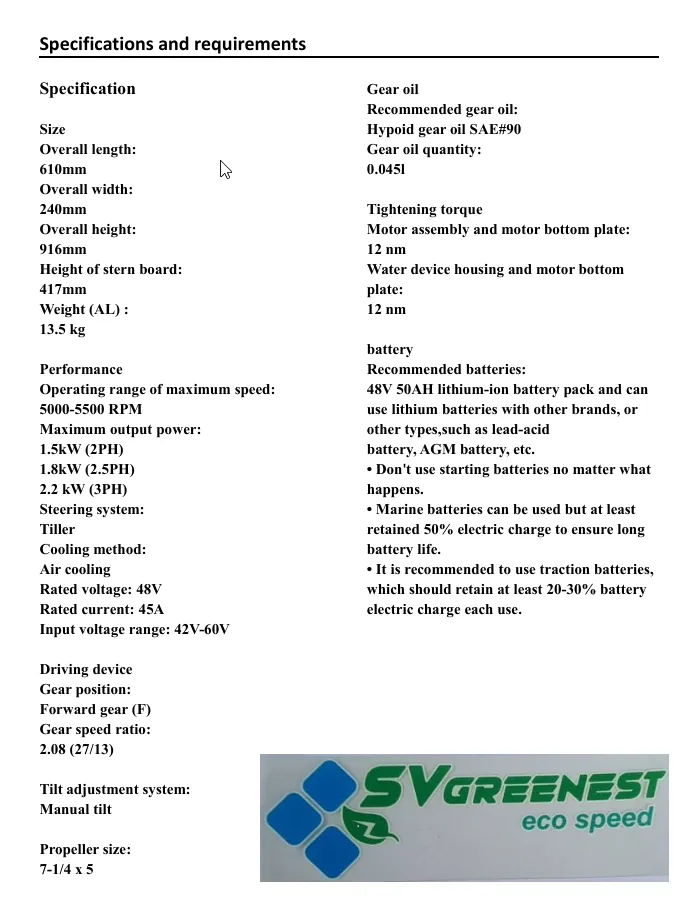

Over all length :610 mm Over all width : 240 mm Over Height : 916 mm Height of Stern board:417mm Weight (AL):13.5 Kg

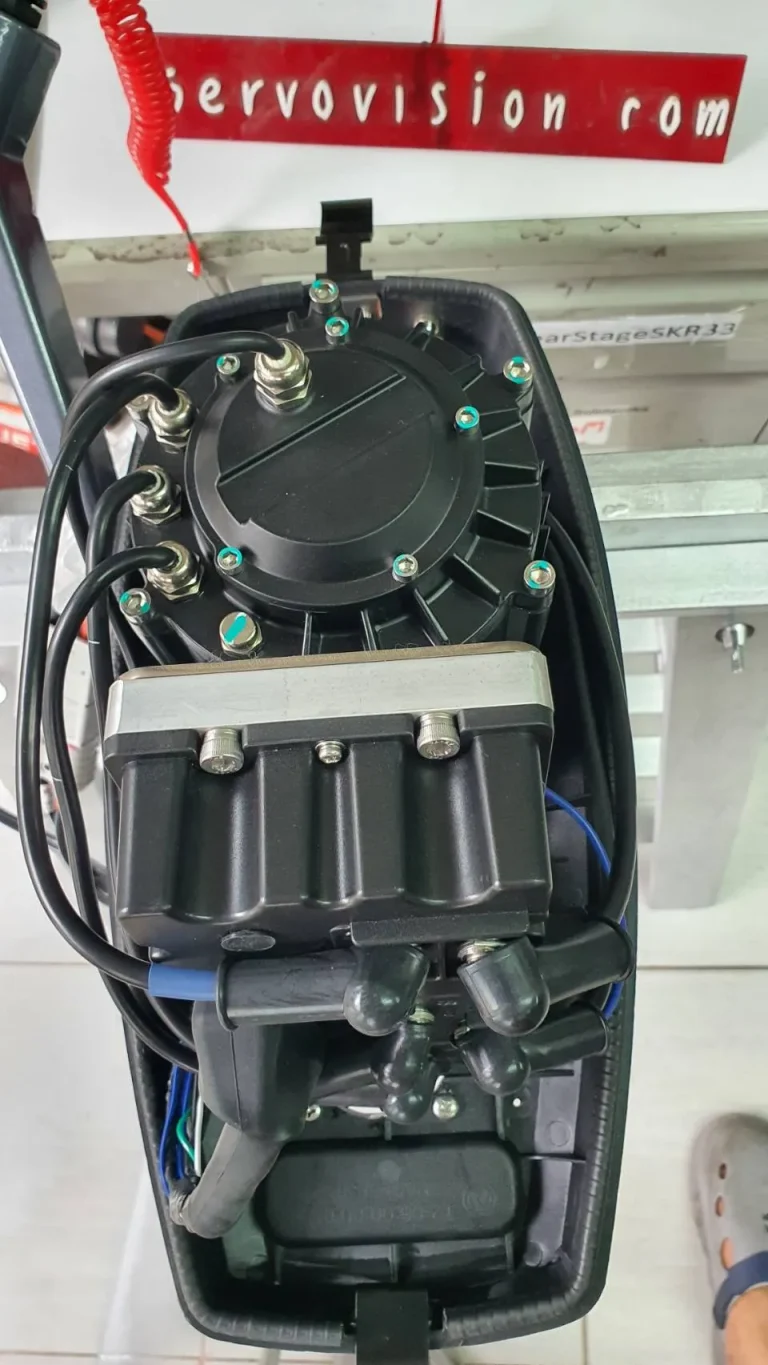

Max. speed at motor : 5500rpm Max. output power:2.2Kw _3HP Air cool both motor and controller with cooling Fan IP66
Rated voltage 48V (42V up to 60V) rated current 40A come with mechanical gear shift
Gea ratio 2.08:1 Tile adjustment lever :manual
Standard prop.:7-1/4 x 5

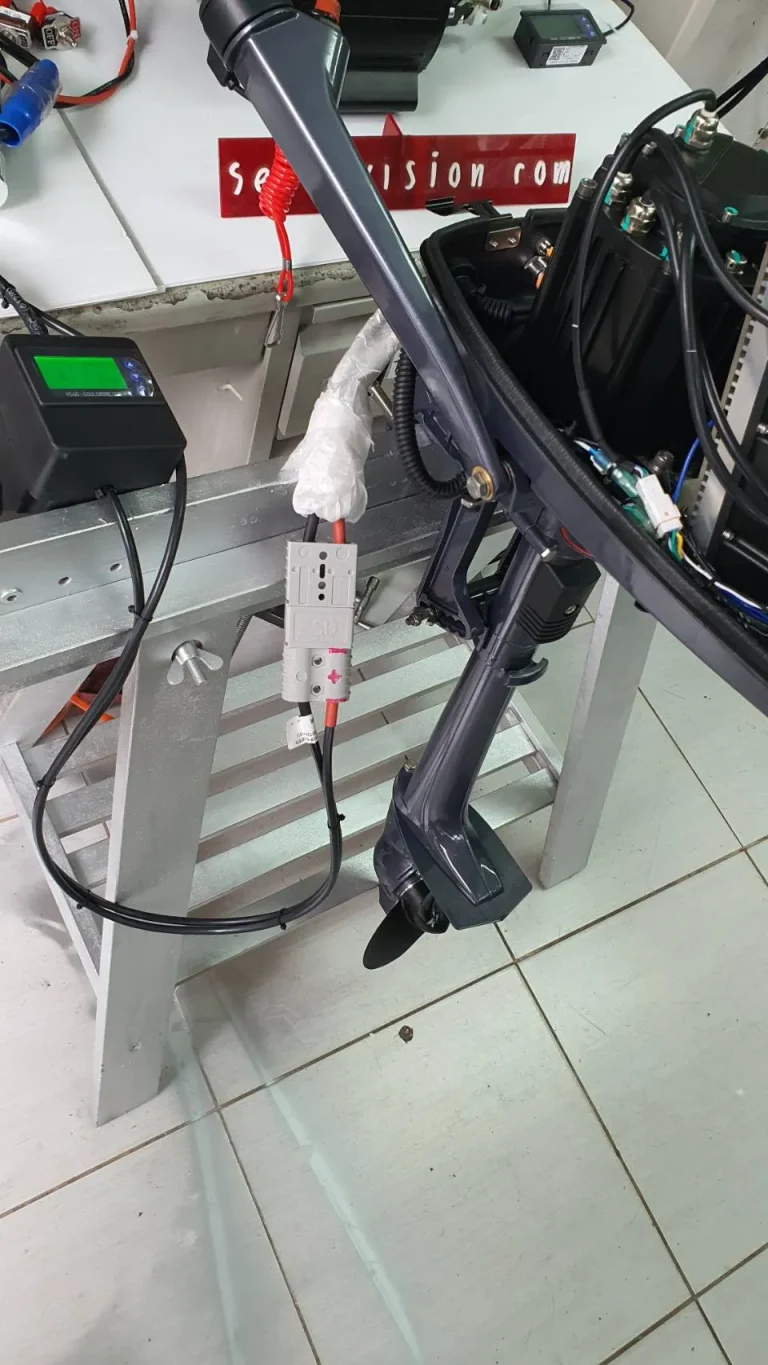

Energy Column Meter come with e-Outboard 3HP 48 V see Tech details Below
