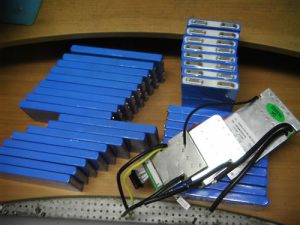

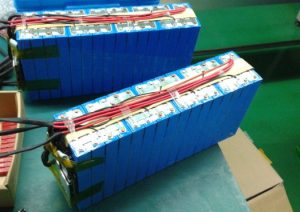

DIY (Do it Your self) Life Pack From cell 4 Bms

LifePo4 Advantage , Life Advantage & Performance Comparision with others.

Battery fuel gauge battery monitor

LithiumFerrumPhosphate LiFePo4 cell aluminium casing6Ah,8A,10Ah,12Ah (Square FLat) Very Best in Heat-Dissippation

Clik to See wiring Diagram 24V pack & BMS

Clik to See wiring Diagram 36V pack & BMS

Clik to See wiring Diagram 48V pack & BMS

Clik to See wiring Diagram 72V pack & BMS

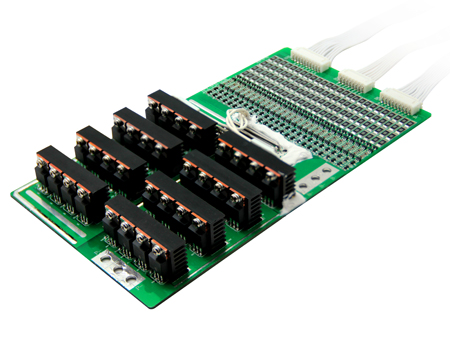

High Performance BMS,PCM for LiFePO4 Battery Packs

Small LiFe BMS D132 Series

Available Models:

4S, 8S, 12S, 16S, 32S

for more info of each model

Charging current: 10A to 25A

Discharging current: 25A

Small LiFe BMS D132 Series

Available Models:

8S,12S, 16S, 20S, 24S

for more info of each model

Charging current: 50A

Discharging current: 50A

Small LiFe BMS D132 Series

Available Models:

12S,16S, 20S,24S, 26S,

for more info of each model

Charging current: 80A

Discharging current: 100A

Small LiFe BMS D132 Series

25A/50A

Available Models:

12S,16S, 24S, 32S

for more info of each model

Charging current: 80A

Discharging current: 250A

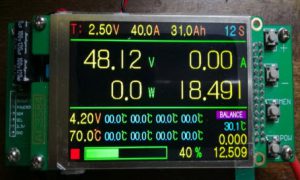

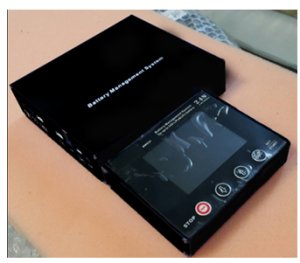

BMS SV24S is designed special for LiPo,LiFe and LiTo battery pack applied to storage energy system and Electrical Vehicle including EV,E-Motorcycle,E-Scooter so on. The unit can measure or detect the battery voltage, cell voltage, charge & discharge current, battery temperature, and battery SOC(State of Charge) , displayed with TFT color LCD.

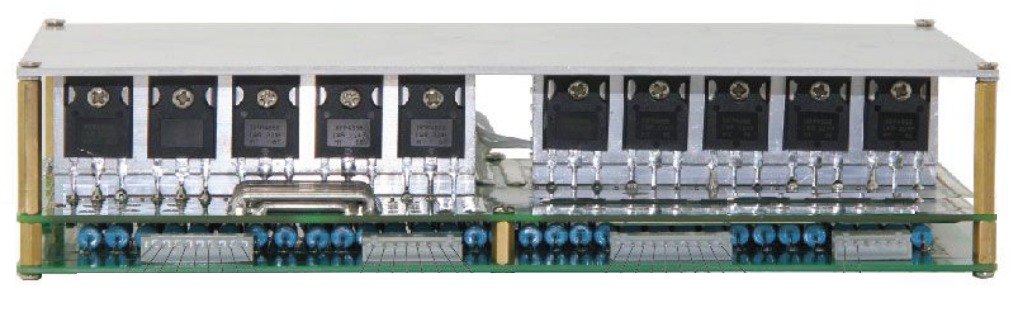

4S to 96S BMS Intelligent : BMS4S96S300A

Q-3147 Hi Volt BMS Low cos

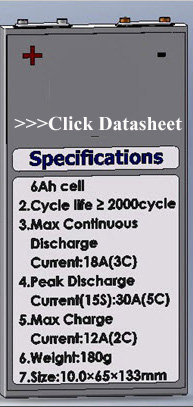

For 6Ah Cell Specification See Below

Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .

capacity = 6Ah , with size = 10 x 65 x 133 mm. , Weight = 180 g.

max. continuous discharge current = 18A (3C)

Peak discharge current 15S = 30A (5C)

max. Charge current = 12A (2C)

cycle life > 2,000 cycle

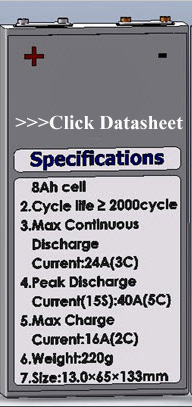

For 8Ah Cell Specification See Below

Lithium Ferrum ( Iron ) Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .

capacity = 8Ah , with size = 13 x 65 x 133 mm. , Weight = 220 g.

max. continuous discharge current = 24A (3C)

Peak discharge current 15S = 40 A (5C)

max. Charge current = 16A (2C)

cycle life > 2,000 cycle

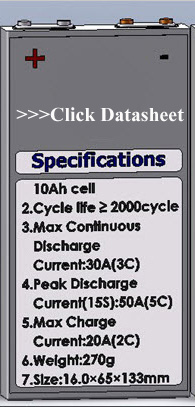

For 10Ah Cell Specification See Below

Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .

capacity = 10Ah , with size = 16.5 x 65 x 139 mm. , Weight = 270 g.

max. continuous discharge current = 50A (5C)

Peak discharge current 15S = 80A (8C)

max. Charge current = 30A (3C)

cycle life > 2,000 cycle
